Tsugami's Turn/Mill Multitasking Turning Centers integrates an articulated B-axis vertical spindle with their reliable Swiss type lathe structure to deliver outstanding performance and productivity. These turning centers are able to handle complex parts in a single setup utilizing milling, turning, drilling, tapping, boring, compound angle work, and threading machining capabilities.
You are here

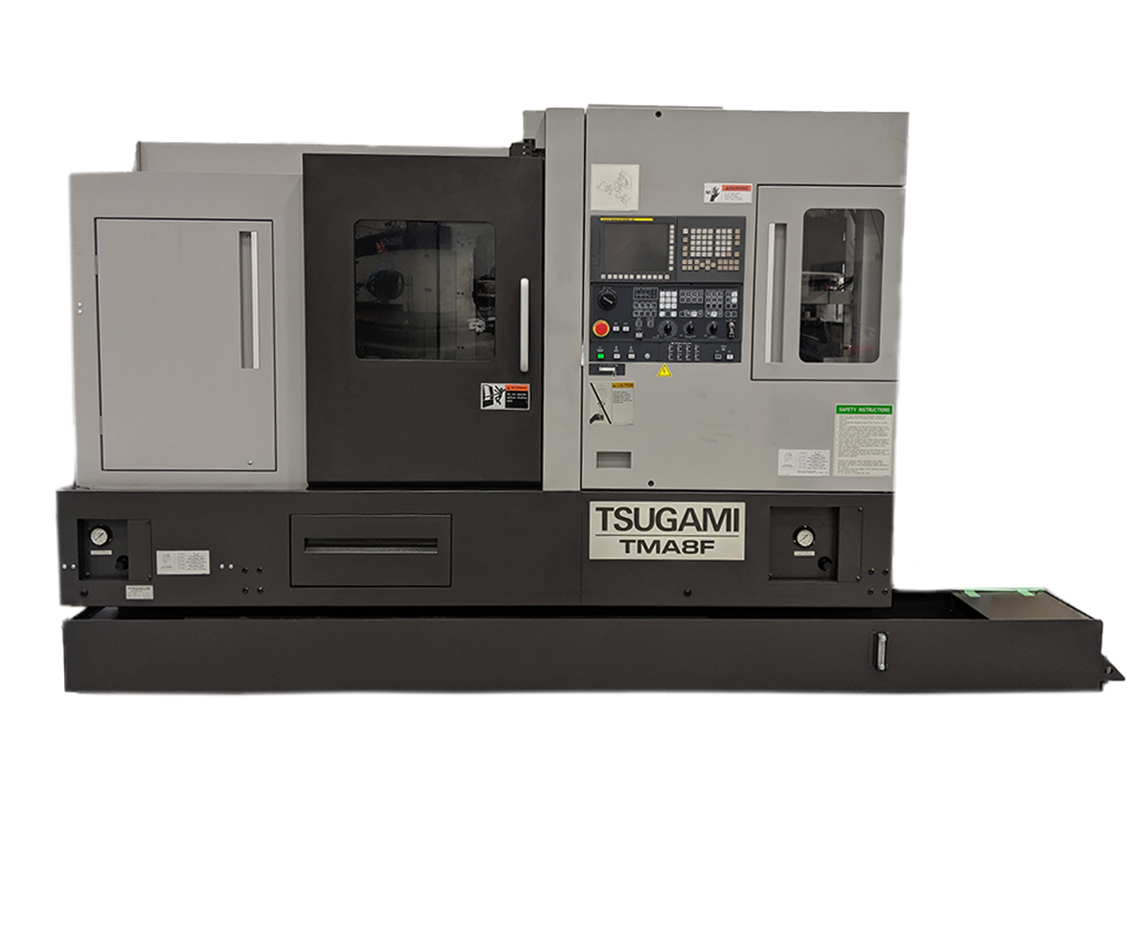

TMA8F
Multifunction
TMA8F
Travels
Number of Axes
|
7
|
Travel Distance X-axis
|
430 mm (16.9 in.)
|
Travel Distance Y-axis
|
130 mm (+60/-70 mm) [5.1 in. (+2.4/-2.8 in.)]
|
Travel Distance Z-axis
|
580+30 mm (22.8+1.2 in.)
|
Travel Distance A-axis
|
750 mm (29.5 in.)
|
Travel Distance B-axis
|
-15°/+195°
|
Rapid Traverse X-axis
|
30 m/min. (1,181 in/min.)
|
Rapid Traverse Y-axis
|
24 m/min. (944.9 in/min.)
|
Rapid Traverse Z-axis
|
40 m/min. (1,574.8 in/min.)
|
Rapid Traverse A-axis
|
30 m/min. (1,181 in/min.)
|
Rapid Traverse C-axis
|
300 rpm
|
Rapid Traverse B-axis
|
150 rpm
|
Capacity
Max Bar Diameter
|
⌀65 mm (2.5 in)
|
Max Machining Length
|
580 mm (22.8 in.)
|
Spindle
Speed (Main)
|
5,000 rpm
|
Speed (Sub)
|
5,000 rpm
|
Power (Main)
|
11/15 kW (14.7/20.1 Hp)
|
Power (Sub)
|
5.5/11 kW (7.4/14.7 Hp)
|
Tooling
Changer Capacity
|
60
|
Live Tool Speed
|
20,000 rpm
|
Live Tool Power
|
5.5/11 kW (7.4/14.7 Hp)
|
Machine Size & Weight
Length
|
3,700 mm (145.7 in.)
|
Height
|
2,140 mm (84.3 in.)
|
Width
|
2,126 mm (83.7 in.)
|
Weight
|
8,500 kg (18,739 lbs.)
|
