Tsugami's Independent Gang Slide lathes features three-path FANUC controls that allows simultaneous use of the main spindle, sub spindle, and gang tool plates. With a full set of tool positions on both the main and sub-spindle, these Swiss style lathes are capable of delivering short and highly productive cycle times.
You are here

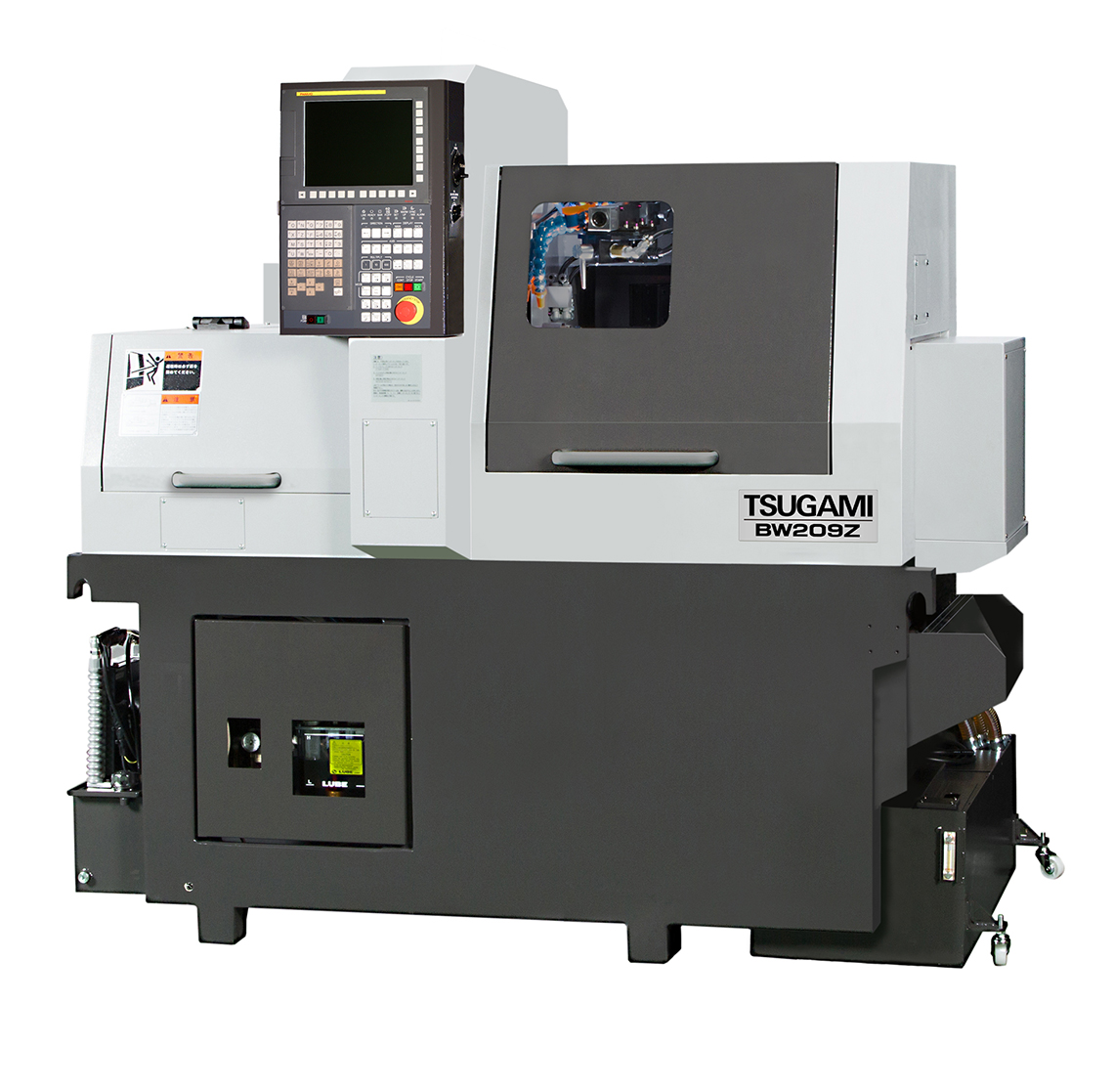

BW209Z
Independent Gang Slide
BW209Z
Travels
Max Headstock Stroke
|
45/210 mm (1.8/8.3 in)
|
Number of Axes
|
9
|
Capacity
Max Bar Diameter
|
Ø20 mm (0.8 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
Yes
|
Spindle
Speed (Main)
|
200-10000 rpm
|
Speed (Sub)
|
200-12000 rpm
|
Power
|
2.2/3.7 kW (2.9/5 Hp)
|
Tooling
Tool Capacity
|
28/30
|
Live Tool Capacity
|
11-Sep
|
Live Tool Speed
|
8000/10000 rpm
|
Machine Size
Length
|
1505 mm (59.3 in)
|
Height
|
1750 mm (68.9 in)
|
Width
|
2010 mm (79.1 in)
|
