Tsugami's Independent Gang Slide lathes features three-path FANUC controls that allows simultaneous use of the main spindle, sub spindle, and gang tool plates. With a full set of tool positions on both the main and sub-spindle, these Swiss style lathes are capable of delivering short and highly productive cycle times.
You are here

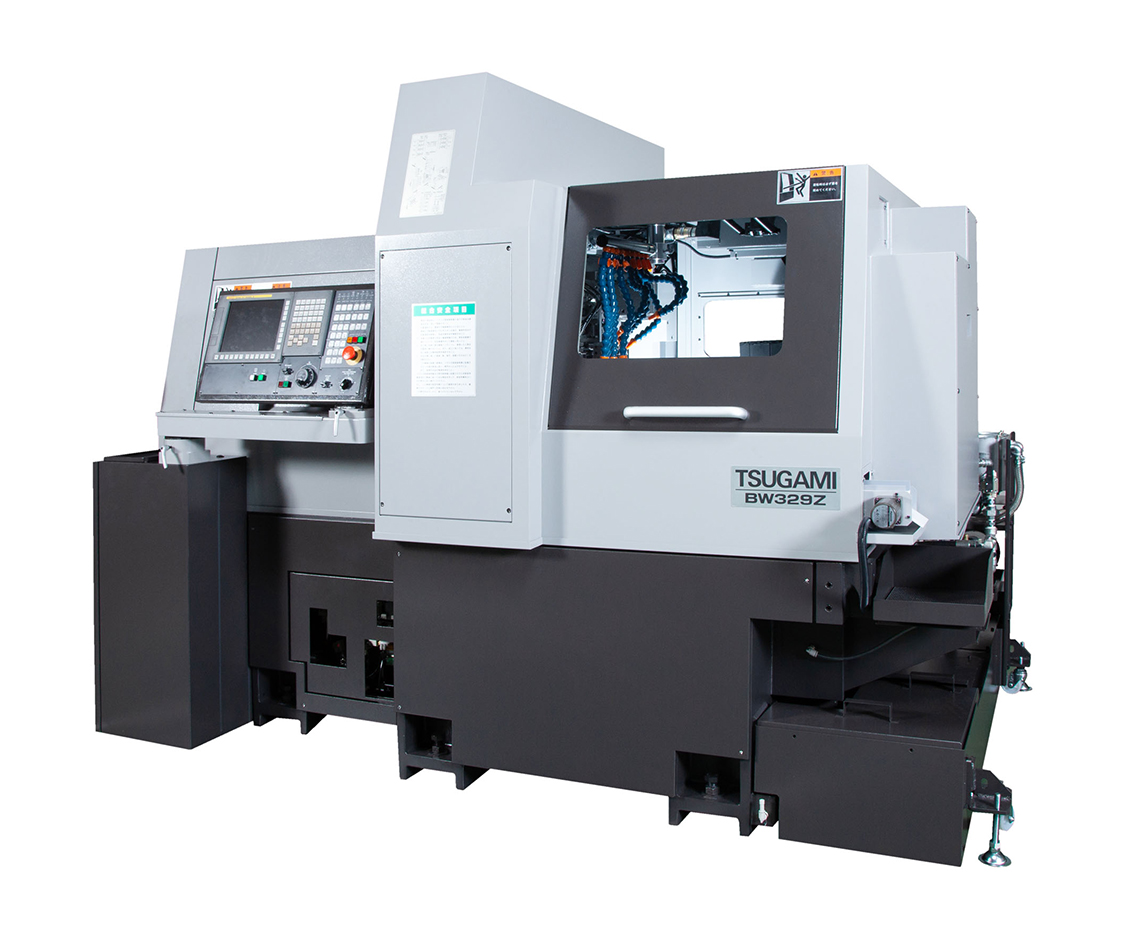

BW329Z

Independent Gang Slide
BW329Z
Travels
Max Headstock Stroke
|
330 mm (13 in.)
|
Number of Axes
|
9
|
Capacity
Max Bar Diameter (Main)
|
⌀32 mm (1.3 in)
|
Max Bar Diameter (Sub)
|
⌀32 mm (1.3 in)
|
Max Machining Length
|
330 mm (13 in.)
|
Spindle
Speed (Main)
|
8,000 rpm
|
Speed (Sub)
|
8,000 rpm
|
Power
|
3.7/5.5 kW (5/7.4 Hp)
|
Tooling
Tool Capacity
|
29/38
|
Max Tool Diameter (Round)
|
⌀25 mm (1 in.)
|
Max Tool Size (Square)
|
15.8 mm (0.62 in.)
|
Max Tool Length
|
100 mm (3.94 in.)
|
Live Tool Speed
|
6,000 rpm
|
Machine Size & Weight
Length
|
1,640 mm (64.4 in.)
|
Height
|
2,000 mm (78.7 in.)
|
Width
|
2,655 mm (104.5 in.)
|
Weight
|
5,200 kg (11,464 lbs.)
|
