Expect the best and most flexible machining capabilities from Tsugami's Gang / Turret line. Ideal for machining complex parts in a single setup, the Gang/Turret machines from Tsugami combine the traditional Swiss style gang tooling with the flexibility of indexing turret tooling.
You are here

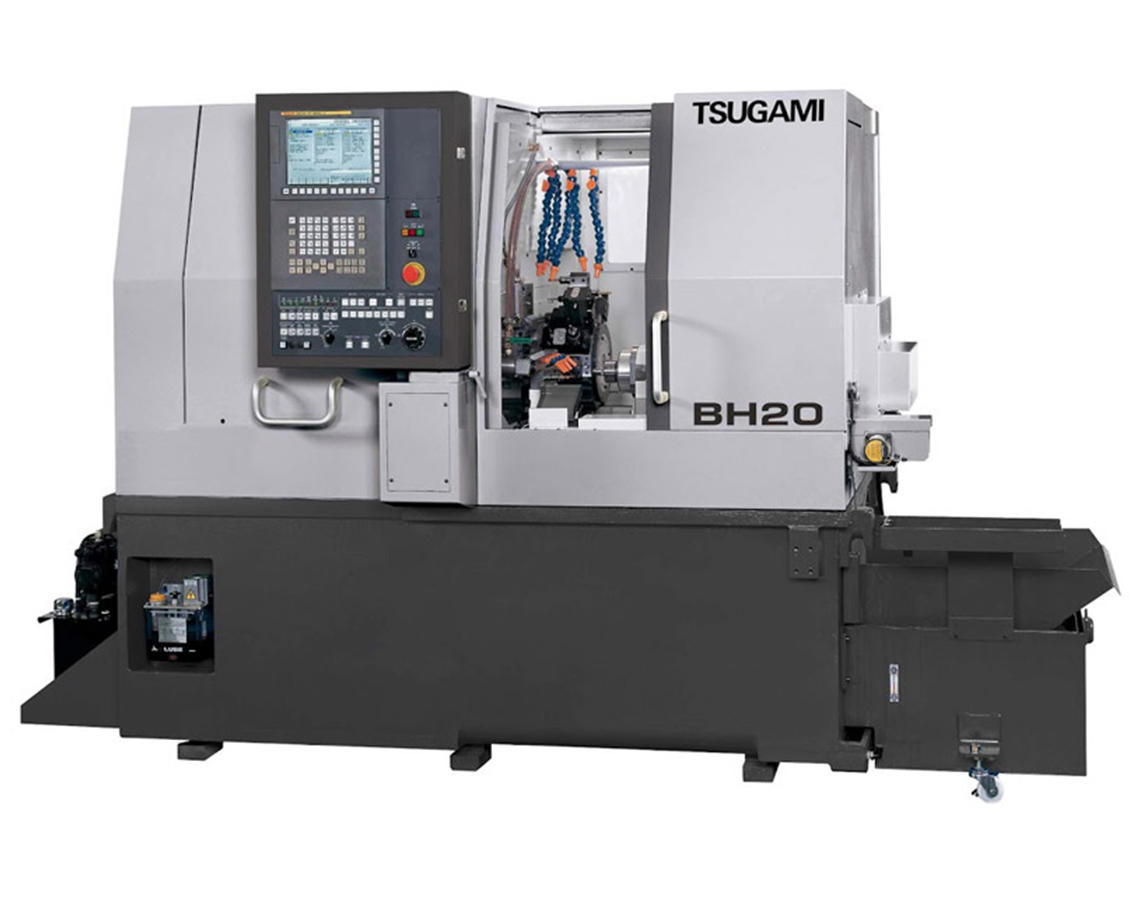

BH20Z
Gang/Turret
BH20Z
Travels
Max Headstock Stroke
|
45/170 mm (1.8/6.7 in)
|
Number of Axes
|
8
|
Capacity
Max Bar Diameter
|
Ø20 mm (0.8 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
Yes
|
Spindle
Speed (Main)
|
200-12000 rpm
|
Speed (Sub)
|
200-12000 rpm
|
Power
|
2.2/3.7 kW (2.9/5 Hp)
|
Tooling
Tool Capacity
|
35
|
Live Tool Capacity
|
12
|
Live Tool Speed
|
200-8000 rpm
|
Machine Size
Length
|
1585 mm (62.4 in)
|
Height
|
1733 mm (68.2 in)
|
Width
|
2480 mm (97.6 in)
|
