Expect the best and most flexible machining capabilities from Tsugami's Gang / Turret line. Ideal for machining complex parts in a single setup, the Gang/Turret machines from Tsugami combine the traditional Swiss style gang tooling with the flexibility of indexing turret tooling.
You are here

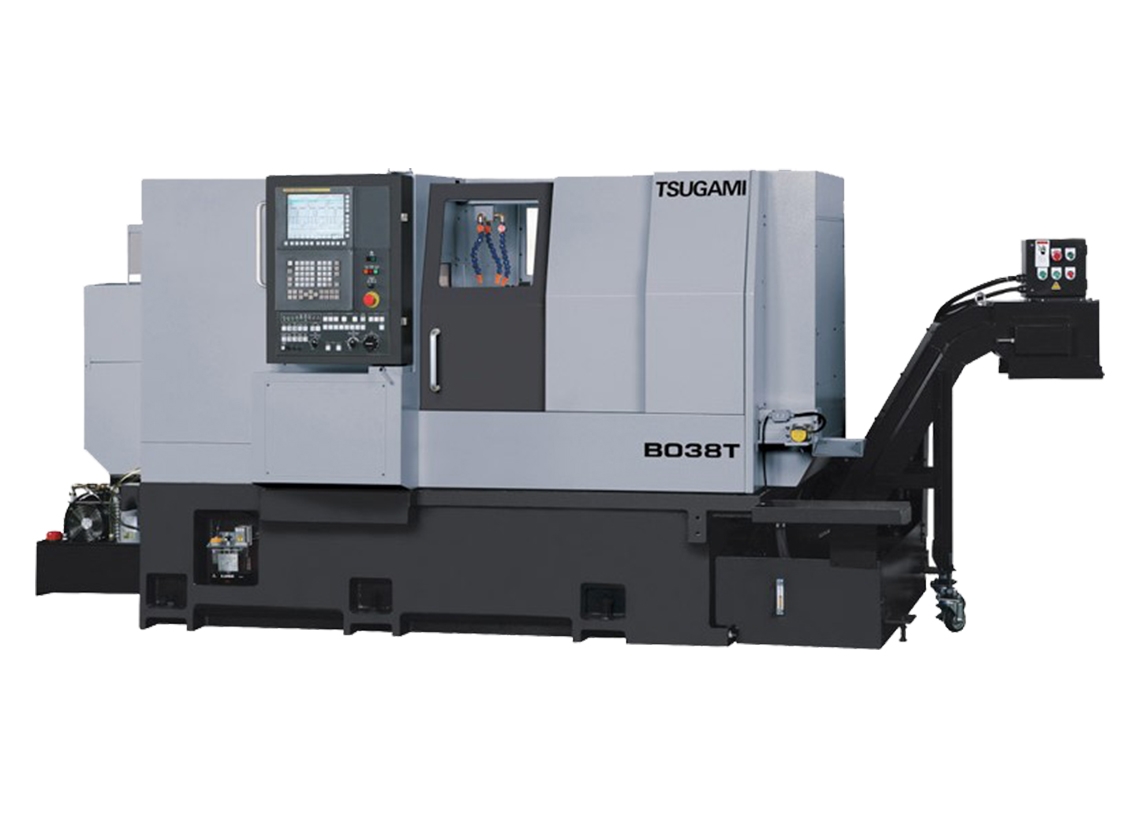

B038T
Gang/Turret
B038T
Travels
Max Headstock Stroke
|
250 mm (9.8 in)
|
Number of Axes
|
9
|
Capacity
Max Bar Diameter
|
Ø38 mm (1.5 in)
|
Sliding Headstock/Guide Bushing
|
Yes
|
Convertible: Run w/o Guide Bushing
|
No
|
Spindle
Speed (Main)
|
200-5000 rpm
|
Speed (Sub)
|
200-7000 rpm
|
Power
|
7.5/11 kW (10.1/14.7 Hp)
|
Tooling
Tool Capacity
|
45
|
Live Tool Capacity
|
8
|
Live Tool Speed
|
200-8000 rpm
|
Machine Size
Length
|
1875 mm (73.8 in)
|
Height
|
1840 mm (72.4 in)
|
Width
|
3247 mm (134.9 in)
|
