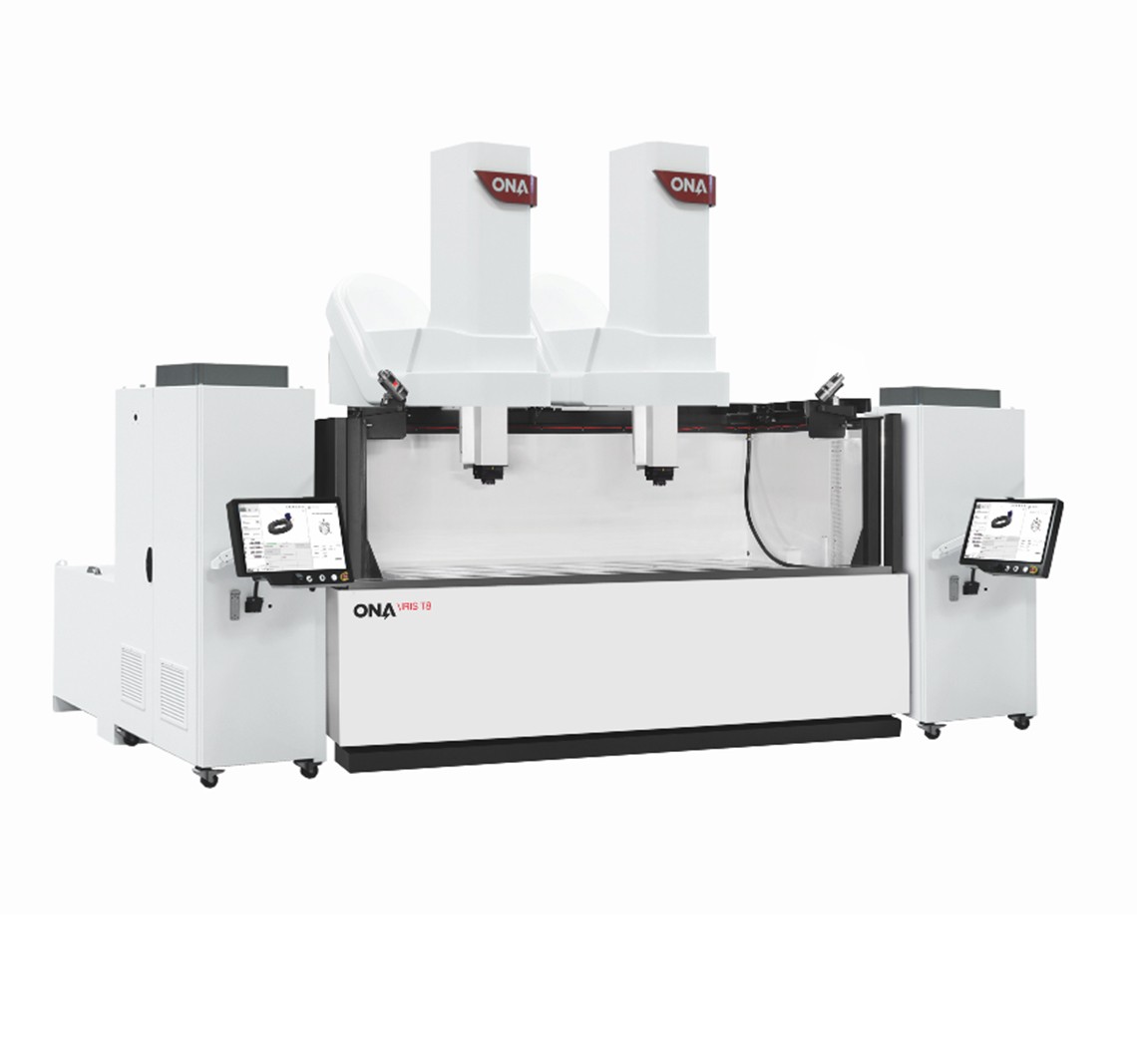

The new ONA IRIS Series Die-Sinking EDM features technology built for improved safety, connectivity, productivity, process simulation, operation management, and controls. The ONA Double Head IRIST Series Die-Sinking EDM has all the modular, rigid, and productive features of the IRIS Series with the addition of an extra head. The dual head IRIST Series reduces erosion time by up to 50% and increases productivity by up to 200%.
You are here
IRIST9
Double Head IRIST Series
IRIST9
Travels
Travel Distance X-axis (Total)
|
2,000 mm (78.7 in.)
|
Travel Distance X-axis (Each Head)
|
1,200 mm (47.2 in.)
|
Travel Distance Y-axis
|
1,200 mm (47.2 in.)
|
Travel Distance Z-axis
|
800 mm (31.5 in.)
|
Table to Head Distance
|
1,200 mm (47.2 in.)
|
Worktank
Length
|
2,800 mm (110.2 in.)
|
Width
|
1,700 mm (66.9 in.)
|
Height
|
1,000 mm (39.4 in.)
|
Table Size
|
2,200 x 1,200 mm (86.6 x 47.2 in.)
|
Table Load
|
20,000 kg (44,092 lbs.)
|
Table Type
|
Drop Door
|
Electrode
Max Weight
|
300 kg (661 lbs.)
|
Generator Intensity
|
100/200/400 A
|
Machine Size & Weight
Length
|
4,440 mm (174.8 in.)
|
Height
|
3,585 mm (141.1 in.)
|
Width
|
5,400 mm (212.6 in.)
|
Weight
|
18,500 kg (40,785 lbs.)
|
