IRIST8

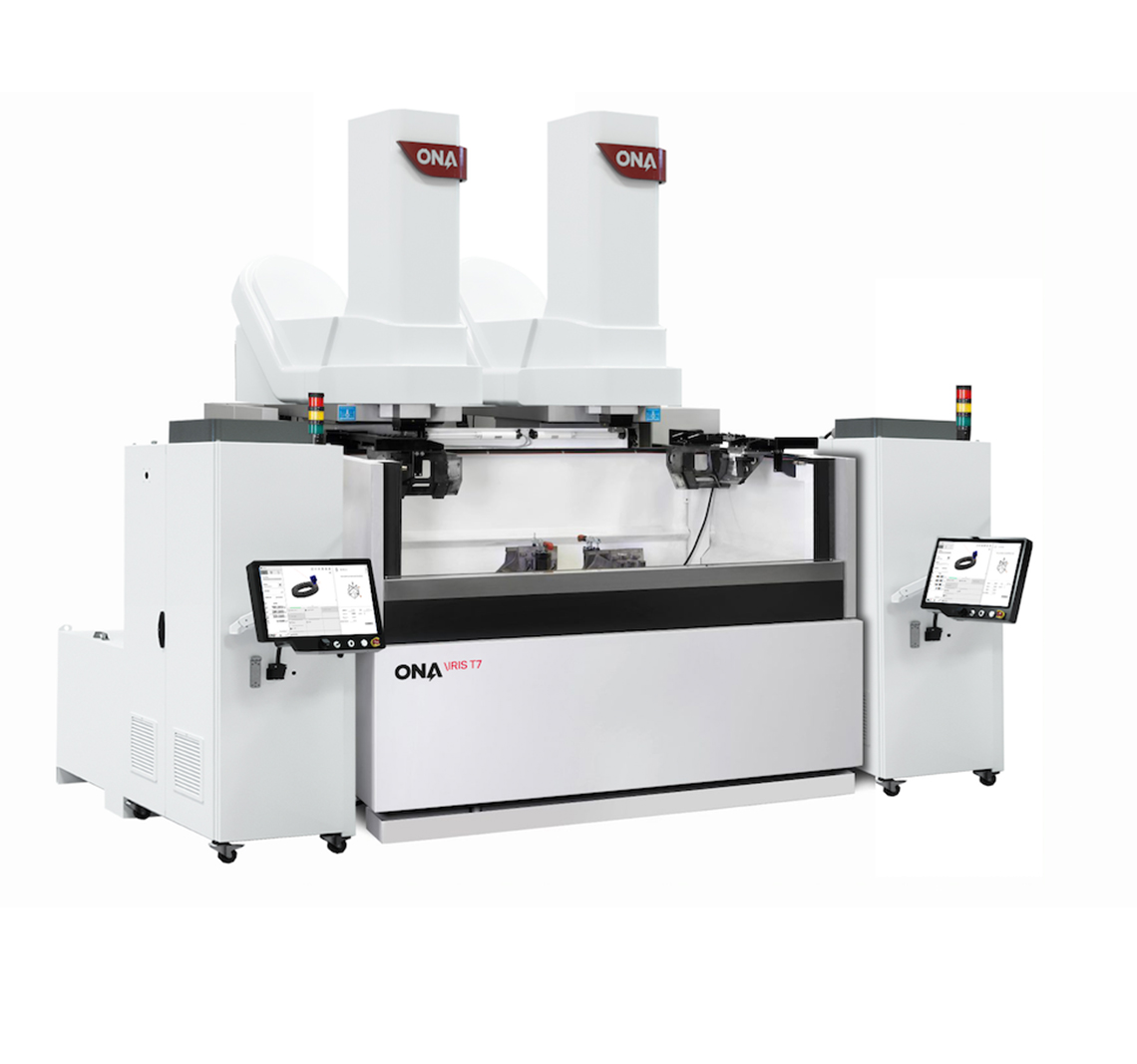

Double Head IRIST Series

The new ONA IRIS Series Die-Sinking EDM features technology built for improved safety, connectivity, productivity, process simulation, operation management, and controls. The ONA Double Head IRIST Series Die-Sinking EDM has all the modular, rigid, and productive features of the IRIS Series with the addition of an extra head. The dual head IRIST Series reduces erosion time by up to 50% and increases productivity by up to 200%.

IRIST8

Travels
Travel Distance X-axis (Total)
2,000 mm (78.7 in.)
Travel Distance X-axis (Each Head)
1,200 mm (47.2 in.)
Travel Distance Y-axis
750/1,000 mm (29.5/39.4 in.)
Travel Distance Z-axis
650/800 mm (25.6/31.5 in.)
Table to Head Distance
1,200 mm (47.2 in.)
Worktank
Length
2,800 mm (110.2 in.)
Width
1,500 mm (59 in.)
Height
1,000 mm (39.4 in.)
Table Size
2,200 x 1,000 mm (86.6 x 39.4 in.)
Table Load
20,000 kg (44,092 lbs.)
Table Type
Drop Door
Electrode
Max Weight
300 kg (661 lbs.)
Generator Intensity
100/200/400 A
Machine Size & Weight
Length
4,440 mm (174.8 in.)
Height
3,585 mm (141.1 in.)
Width
4,725 mm (186 in.)
Weight
16,000 kg (35,274 lbs.)
