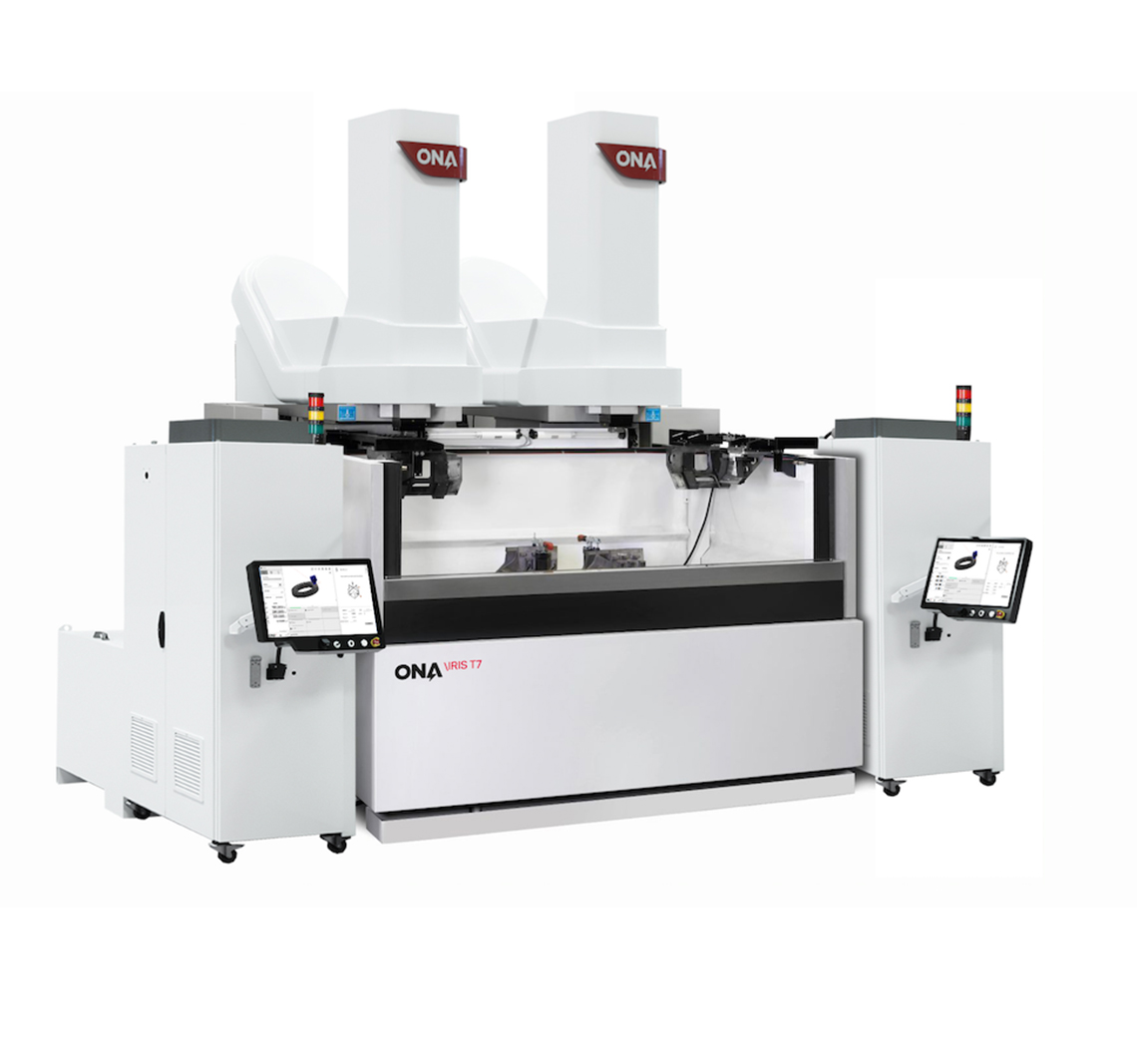

The new ONA IRIS Series Die-Sinking EDM features technology built for improved safety, connectivity, productivity, process simulation, operation management, and controls. The ONA Double Head IRIST Series Die-Sinking EDM has all the modular, rigid, and productive features of the IRIS Series with the addition of an extra head. The dual head IRIST Series reduces erosion time by up to 50% and increases productivity by up to 200%.
You are here
IRIST7
Double Head IRIST Series
IRIST7
Travels
Travel Distance X-axis (Total)
|
1,500 mm (59 in.)
|
Travel Distance X-axis (Each Head)
|
830 mm (32.7 in.)
|
Travel Distance Y-axis
|
700/1,000 mm (27.5/39.4 in.)
|
Travel Distance Z-axis
|
650/800 mm (25.6/31.5 in.)
|
Table to Head Distance
|
1,200 mm (47.2 in.)
|
Worktank
Length
|
2,300 mm (90.5 in.)
|
Width
|
1,500 mm (59 in.)
|
Height
|
1,000 mm (39.4 in.)
|
Table Size
|
1,700 x 1,000 mm (66.9 x 39.4 in.)
|
Table Load
|
15,000 kg (33,069 lbs.)
|
Table Type
|
Drop Door
|
Electrode
Max Weight
|
300 kg (661 lbs.)
|
Generator Intensity
|
100/200/400 A
|
Machine Size & Weight
Length
|
3,860 mm (152 in.)
|
Height
|
3,585 mm (141.1 in.)
|
Width
|
4,525 mm (178.1 in.)
|
Weight
|
13,800 kg (30,423.8 lbs.)
|
