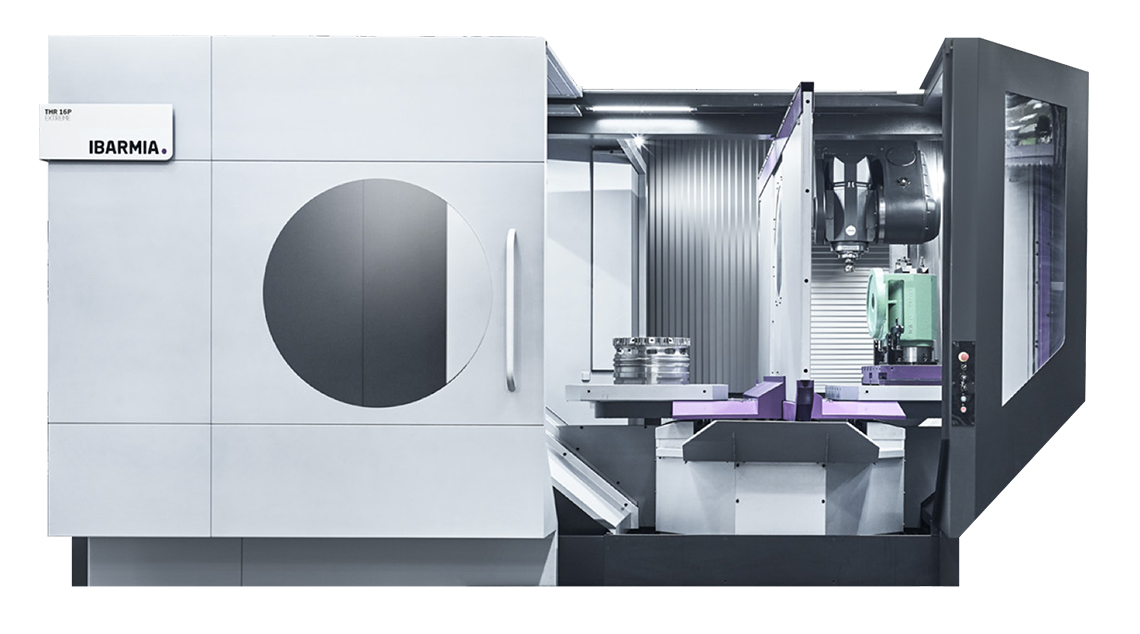

The T EXTREME features options for a B-axis head with a 45 degree turning angle or an A-axis head able to work negative angles for those hard to reach places. Both heads are powered with the direct transmission torque motor avoiding backlash issues and guaranteeing quick movement, high accuracy, and minimal maintenance and repairs in the event of collisions. With the T EXTREME’s five axis machining capabilities, it is ideal for medium to big swing diameters with high performance and versatility. Do more with less set-up time and reduced machining stops utilizing the two alternating pallets.
You are here
T36 EXTREME
T EXTREME
T36 EXTREME
Travels
Travel Distance X-axis
|
3600 mm (141.7 in)
|
Travel Distance Y-axis
|
2300 mm (90.6 in)
|
Travel Distance Z-axis
|
1900 mm (74.8 in)
|
Travel Distance C-axis
|
360°
|
Travel Distance A-axis (Optional)
|
-45°/+135°
|
Travel Distance B-axis (Optional)
|
-15°/+195°
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Z-axis
|
40 m/min (1575 in/min)
|
Rotary Table
Table Size
|
1600 x 1600 mm (63 x 63 in)
|
Max Part Height
|
2150 mm (85 in)
|
Max Load
|
30000 kg (66138.7 lbs)
|
Speed
|
4 rpm
|
Torque
|
18000 Nm (13276.1 ft-lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
74 kW (89 Hp)
|
Torque
|
300 Nm (452 ft-lbs)
|
Tooling
Shank
|
ISO-50
|
Changer Capacity
|
60
|
Max Diameter
|
⌀125/250 mm (4.9/9.8 in)
|
Max Length
|
450 mm (17.7 in)
|
Machine Size
Weight
|
87000 kg (191802.2 lbs)
|
