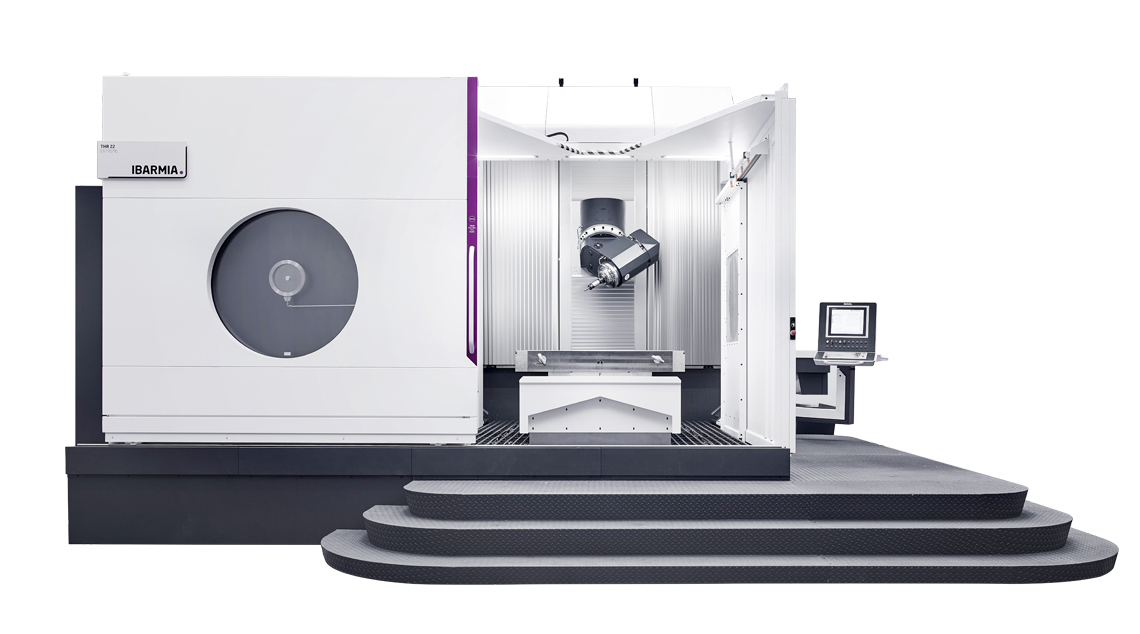

The T EXTREME features options for a B-axis head with a 45 degree turning angle or an A-axis head able to work negative angles for those hard to reach places. Both heads are powered with the direct transmission torque motor avoiding backlash issues and guaranteeing quick movement, high accuracy, and minimal maintenance and repairs in the event of collisions. With the T EXTREME’s five axis machining capabilities, it is ideal for medium to big swing diameters with high performance and versatility. Do more with less set-up time and reduced machining stops utilizing the two alternating pallets.
You are here
T22 EXTREME
This product is not available.
T EXTREME
T22 EXTREME
Travels
Travel Distance X-axis
|
2200 mm (86.6 in)
|
Travel Distance Y-axis
|
1600 mm (63 in)
|
Travel Distance Z-axis
|
1500 mm (59 in)
|
Travel Distance C-axis
|
360°
|
Travel Distance A-axis (Optional)
|
-45°/+135°
|
Travel Distance B-axis (Optional)
|
-15°/+195°
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Z-axis
|
40 m/min (1575 in/min)
|
Rotary Table
Table Size
|
1250 x 1250 mm (49.2 x 49.2 in)
|
Max Part Height
|
1750 mm (68.9 in)
|
Max Load
|
10000 kg (22046.2 lbs)
|
Speed
|
10 rpm
|
Torque
|
8000 Nm (5900.5 ft-lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
74 kW (89 Hp)
|
Torque
|
300 Nm (452 ft-lbs)
|
Tooling
Shank
|
ISO-50
|
Changer Capacity
|
60
|
Max Diameter
|
⌀125/250 mm (4.9/9.8 in)
|
Max Length
|
450 mm (17.7 in)
|
Machine Size
Weight
|
39000 kg (85980.3 lbs)
|
