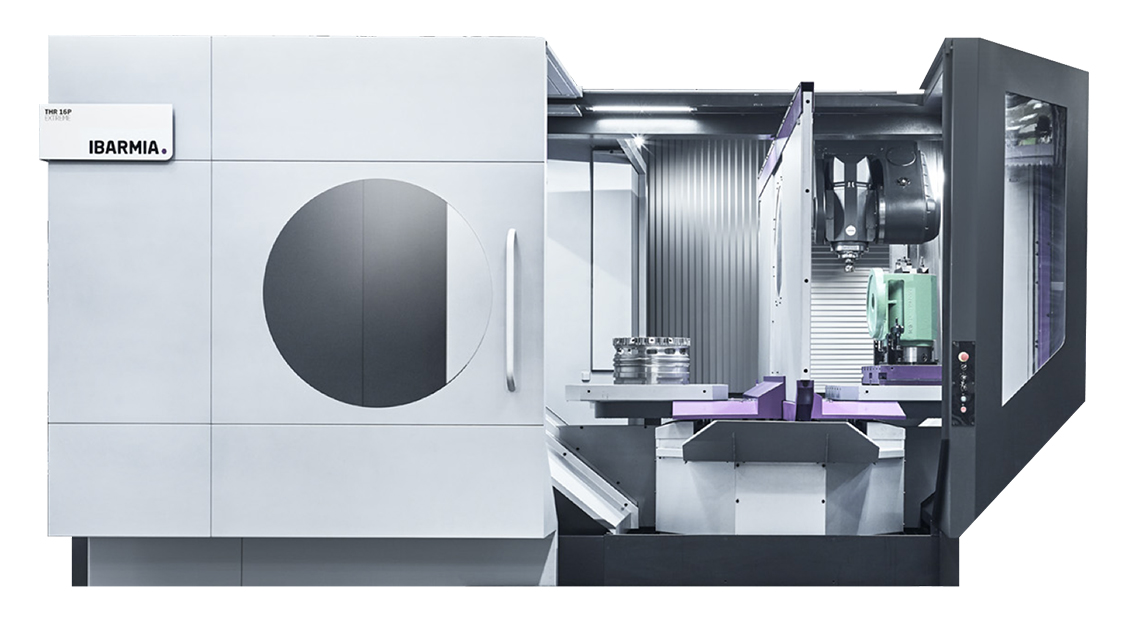

The T EXTREME features options for a B-axis head with a 45 degree turning angle or an A-axis head able to work negative angles for those hard to reach places. Both heads are powered with the direct transmission torque motor avoiding backlash issues and guaranteeing quick movement, high accuracy, and minimal maintenance and repairs in the event of collisions. With the T EXTREME’s five axis machining capabilities, it is ideal for medium to big swing diameters with high performance and versatility. Do more with less set-up time and reduced machining stops utilizing the two alternating pallets.
You are here
T16 EXTREME
This product is not available.
T EXTREME
T16 EXTREME
Travels
Travel Distance X-axis
|
1600 mm (63 in)
|
Travel Distance Y-axis
|
1300 mm (51.2 in)
|
Travel Distance Z-axis
|
1200 mm (47.2 in)
|
Travel Distance C-axis
|
360°
|
Travel Distance A-axis (Optional)
|
-45°/+135°
|
Travel Distance B-axis (Optional)
|
-15°/+195°
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
30 m/min (1181 in/min)
|
Rapid Traverse Z-axis
|
40 m/min (1575 in/min)
|
Rotary Table
Table Size
|
1000 x 1000 mm (39.4 x 39.4 in)
|
Max Part Height
|
1450 mm (57.1 in)
|
Max Load
|
6000 kg (13227.7 lbs)
|
Speed
|
13 rpm
|
Torque
|
3200 Nm (2360.2 ft-lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
74 kW (99 Hp cont.)
|
Torque
|
300 Nm (221 ft-lbs cont.)
|
Tooling
Shank
|
HSK100
|
Changer Capacity
|
120
|
Max Diameter
|
⌀125/250 mm (4.9/9.8 in)
|
Max Length
|
450 mm (17.7 in)
|
Machine Size
Weight
|
32000 kg (70547.9 lbs)
|
