DN Solutions (formerly Doosan Machine Tools) twin table vertical machining centers offer manufacturers exceptional cutting performance, combined with a productivity-boosting twin pallet configuration. Designed for high-speeds and excellent precision, the VC series features powerful drives, heavy cutting capability and unsurpassed rigidity to yield outstanding accuracy and high productivity in a variety of applications.
You are here

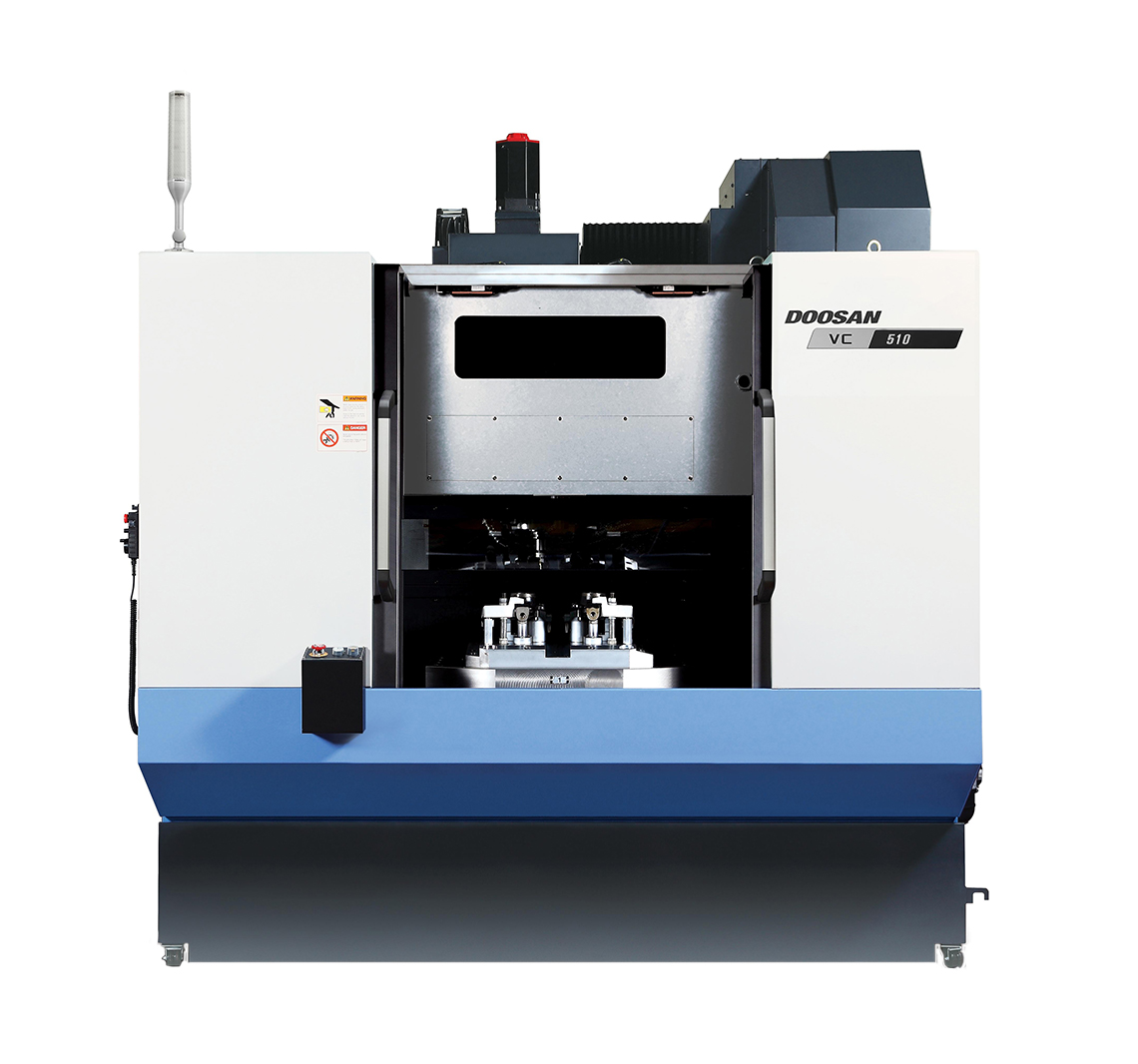

VC 510
VC Series
VC 510
Travels
Travel Distance X-axis
|
762 mm (30 in)
|
Travel Distance Y-axis
|
516 mm (20.3 in)
|
Travel Distance Z-axis
|
570 mm (22.4 in)
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Z-axis
|
32 m/min (1260 in/min)
|
Table
Number of Pallets
|
2
|
Pallet Size
|
860 x 570 mm (33.8 x 22 in)
|
Pallet Max Load
|
350 kg (770 lbs)
|
Spindle
Speed
|
10000 rpm
|
Power
|
18.5 kW (25 Hp)
|
Torque
|
117.7 Nm (86.6 ft-lbs)
|
Tooling
Shank
|
BIG PLUS CAT40
|
Changer Capacity
|
30
|
Max Diameter
|
⌀80/125 mm (3.2/4.9 in)
|
Max Length
|
300 mm (11.8 in)
|
Machine Size & Weight
Length
|
3,260 mm (128.3 in.)
|
Height
|
3,250 mm (128 in.)
|
Width
|
2,580 mm (101.6 in.) + 1,100 mm (43.3 in.)
|
Weight
|
9,200 kg (20,283 lbs.)
|
