DN Solutions (formerly Doosan Machine Tools) twin table vertical machining centers offer manufacturers exceptional cutting performance, combined with a productivity-boosting twin pallet configuration. Designed for high-speeds and excellent precision, the VC series features powerful drives, heavy cutting capability and unsurpassed rigidity to yield outstanding accuracy and high productivity in a variety of applications.
You are here

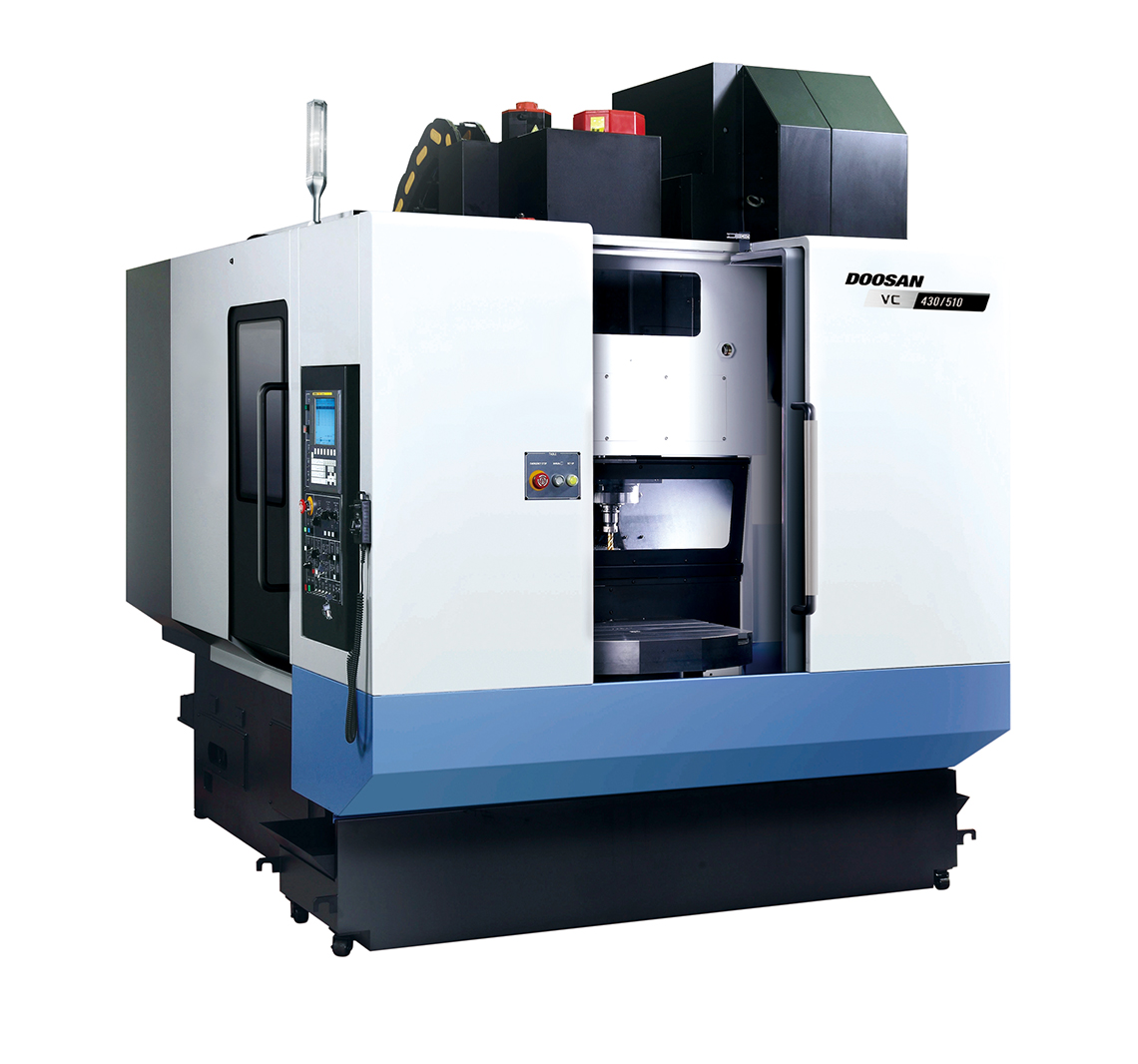

VC 430
VC Series
VC 430
Travels
Travel Distance X-axis
|
560 mm (22 in)
|
Travel Distance Y-axis
|
430 mm (16.9 in)
|
Travel Distance Z-axis
|
570 mm (22.4 in)
|
Rapid Traverse X-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Y-axis
|
40 m/min (1575 in/min)
|
Rapid Traverse Z-axis
|
36 m/min (1417 in/min)
|
Table
Number of Pallets
|
2
|
Pallet Size
|
712 x 490 mm (28 x 19.3 in)
|
Pallet Max Load
|
300 kg (660 lbs)
|
Spindle
Speed
|
12000 rpm
|
Power
|
18.5 kW (25 Hp)
|
Torque
|
167.6 Nm (123.7 ft-lbs)
|
Tooling
Shank
|
BIG PLUS CAT40
|
Changer Capacity
|
40
|
Max Diameter
|
⌀80/125 mm (3.2/4.9 in)
|
Max Length
|
300 mm (11.8 in)
|
Machine Size & Weight
Length
|
2,890 mm (113.8 in.)
|
Height
|
3,110 mm (122.4 in.)
|
Width
|
2,391 mm (94.1 in.) + 946 mm (37.2 in.)
|
Weight
|
7,830 kg (17,226 lbs.)
|
