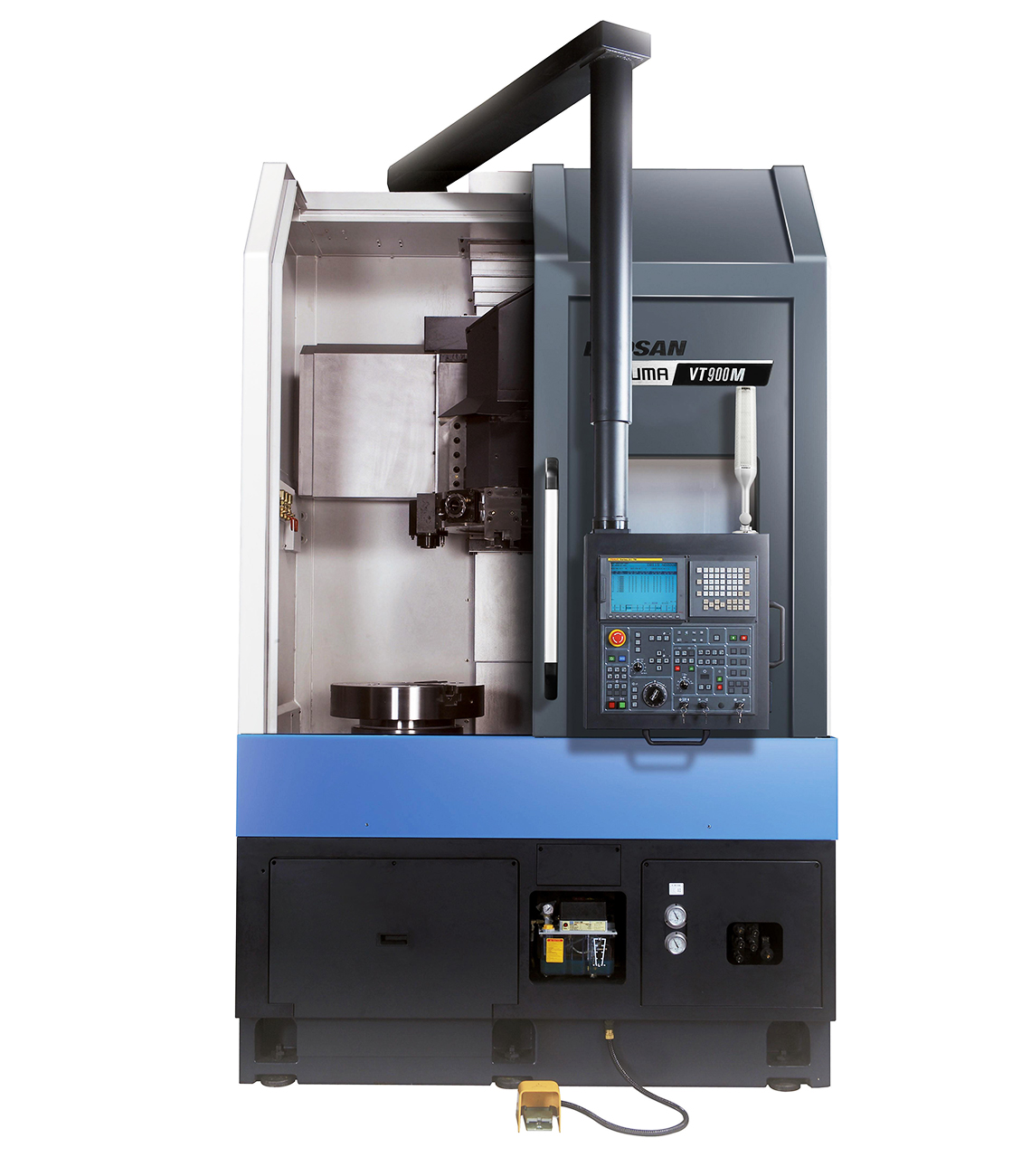

PUMA VT900M

PUMA VT Series

The PUMA VT vertical turning center series is the total solutions for any manufacturer looking for long term accuracy, heavy duty cutting, and a minimal factory footprint. Powerful spindle drives, strong Meehanite structure and integrated box guide ways provide unsurpassed rigidity, while an array of configurations offer manufacturers specialized customization options.

PUMA VT900M

Travels
Travel Distance X-axis
470 mm (18.5 in)
Travel Distance Z-axis
850 mm (33.5 in)
Rapid Traverse X-axis
20 m/min (787 in/min)
Rapid Traverse Z-axis
20 m/min (787 in/min)
Rapid Traverse C-axis
100 rpm
Capacity
Max Turning Diameter
⌀900 mm (35.4 in)
Max Turning Length
850 mm (33.5 in)
Max Table Load
2000 kg (4400 lbs)
Spindle
Speed
1800 rpm
Power
45 kW (60 Hp)
Torque
4443 Nm (3276 ft-lbs)
Tooling
Shank
BMT-85
Turret Stations
12 Slot
Boring Bar Diameter
⌀80 mm (3 in)
Tooling (Milling)
Rotary Tool Speed
3000 rpm
Rotary Tool Power
11 kW (15 Hp)
Rotary Tool Torque
140 Nm (103 ft-lbs)
Machine Size
Length
2130 mm (84 in)
Height
3621 mm (143 in)
Width
3050 mm (120 in)
