The PUMA VT vertical turning center series is the total solutions for any manufacturer looking for long term accuracy, heavy duty cutting, and a minimal factory footprint. Powerful spindle drives, strong Meehanite structure and integrated box guide ways provide unsurpassed rigidity, while an array of configurations offer manufacturers specialized customization options.
You are here

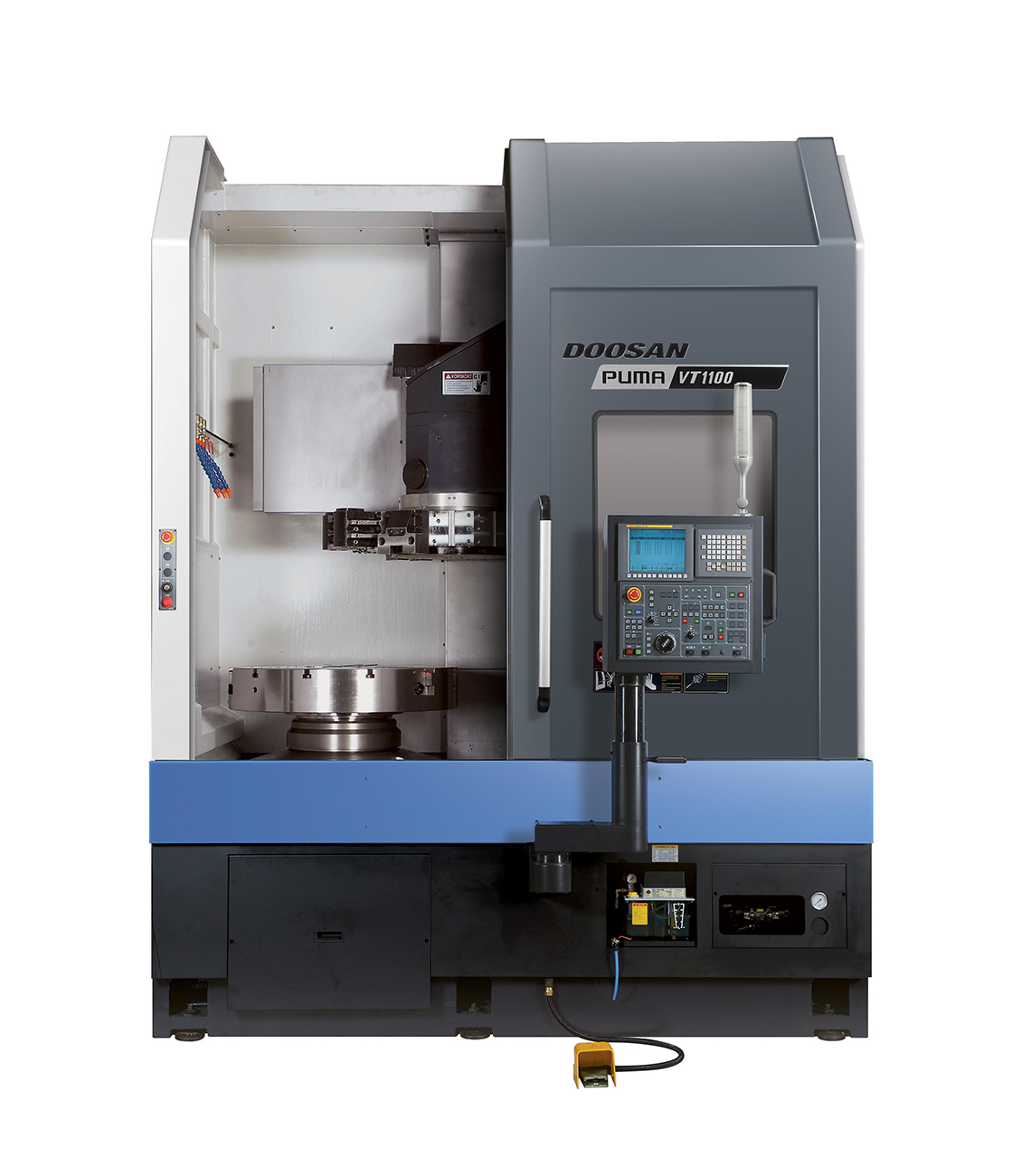

PUMA VT1100M
PUMA VT Series
PUMA VT1100M
Travels
Travel Distance X-axis
|
580 mm (22.8 in)
|
Travel Distance Z-axis
|
1000 mm (39.4 in)
|
Rapid Traverse X-axis
|
20 m/min (787 in/min)
|
Rapid Traverse Z-axis
|
20 m/min (787 in/min)
|
Capacity
Max Turning Diameter
|
⌀1100 mm (43.3 in)
|
Max Turning Length
|
1000 mm (39.4 in)
|
Max Table Load
|
2200 kg (4850 lbs)
|
Spindle
Speed
|
850 rpm
|
Power
|
55 kW (75 Hp)
|
Torque
|
6385 Nm (4710 ft-lbs)
|
Tooling
Shank
|
BMT-KEY
|
Turret Stations
|
12 Slot
|
Boring Bar Diameter
|
⌀80 mm (3 in)
|
Tooling (Milling)
Rotary Tool Speed
|
3000 rpm
|
Rotary Tool Power
|
11 kW (15 Hp)
|
Rotary Tool Torque
|
140 Nm (103 ft-lbs)
|
Machine Size & Weight
Length
|
2,850 mm (112 in.)
|
Height
|
4,012 mm (158 in.)
|
Width
|
3,305 mm (131 in.)
|
Weight
|
22,000 kg (48,500 lbs.)
|
