Multiply your cutting power and minimize your floorspace with the PUMA V series turning center. Utilizing a cartridge style spindle and a tightly-coupled bearing assembly, the PUMA V centers are expertly adept at handling heavy workpieces and controlling thermal stability in long run operations. Featuring a cast iron Meehanite bed and box type column casting, these machines remain stable even under the most intense cutting conditions.
You are here

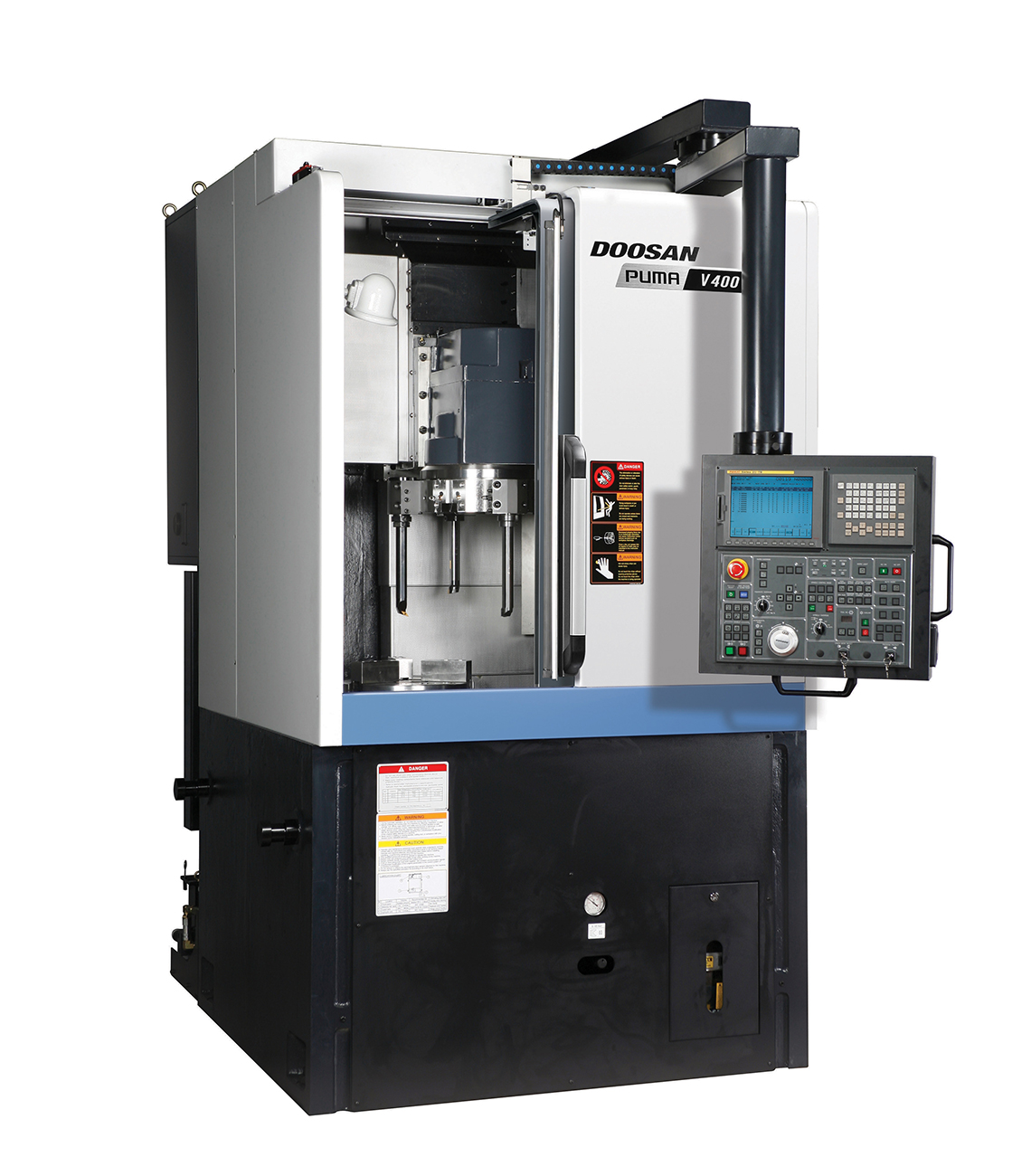

PUMA V400M
PUMA V Series
PUMA V400M
Travels
Travel Distance X-axis
|
268 mm (10.6 in)
|
Travel Distance Z-axis
|
488 mm (19.2 in)
|
Rapid Traverse X-axis
|
20 m/min (787 in/min)
|
Rapid Traverse Z-axis
|
20 m/min (787 in/min)
|
Capacity
Max Turning Diameter
|
⌀420 mm (16.5 in)
|
Max Turning Length
|
400 mm (15.7 in)
|
Max Table Load
|
500 kg (1100 lbs)
|
Spindle to Table Distance
|
1154 mm (45.4 in)
|
Spindle
Speed
|
3000 rpm
|
Power
|
22 kW (30 Hp)
|
Torque
|
731 Nm (539 ft-lbs)
|
Tooling
Shank
|
BMT-65
|
Turret Stations
|
12 Slot
|
Boring Bar Diameter
|
⌀40 mm (1.5 in)
|
Tooling (Milling)
Rotary Tool Speed
|
4000 rpm
|
Rotary Tool Power
|
5.5 kW (7.5 Hp)
|
Rotary Tool Torque
|
47.1 Nm (34.7 ft-lbs)
|
Machine Size & Weight
Length
|
1,475 mm (58 in.)
|
Height
|
3,210 mm (126 in.)
|
Width
|
2,150 mm (85 in.)
|
Weight
|
6,000 kg (13,250 lbs.)
|
