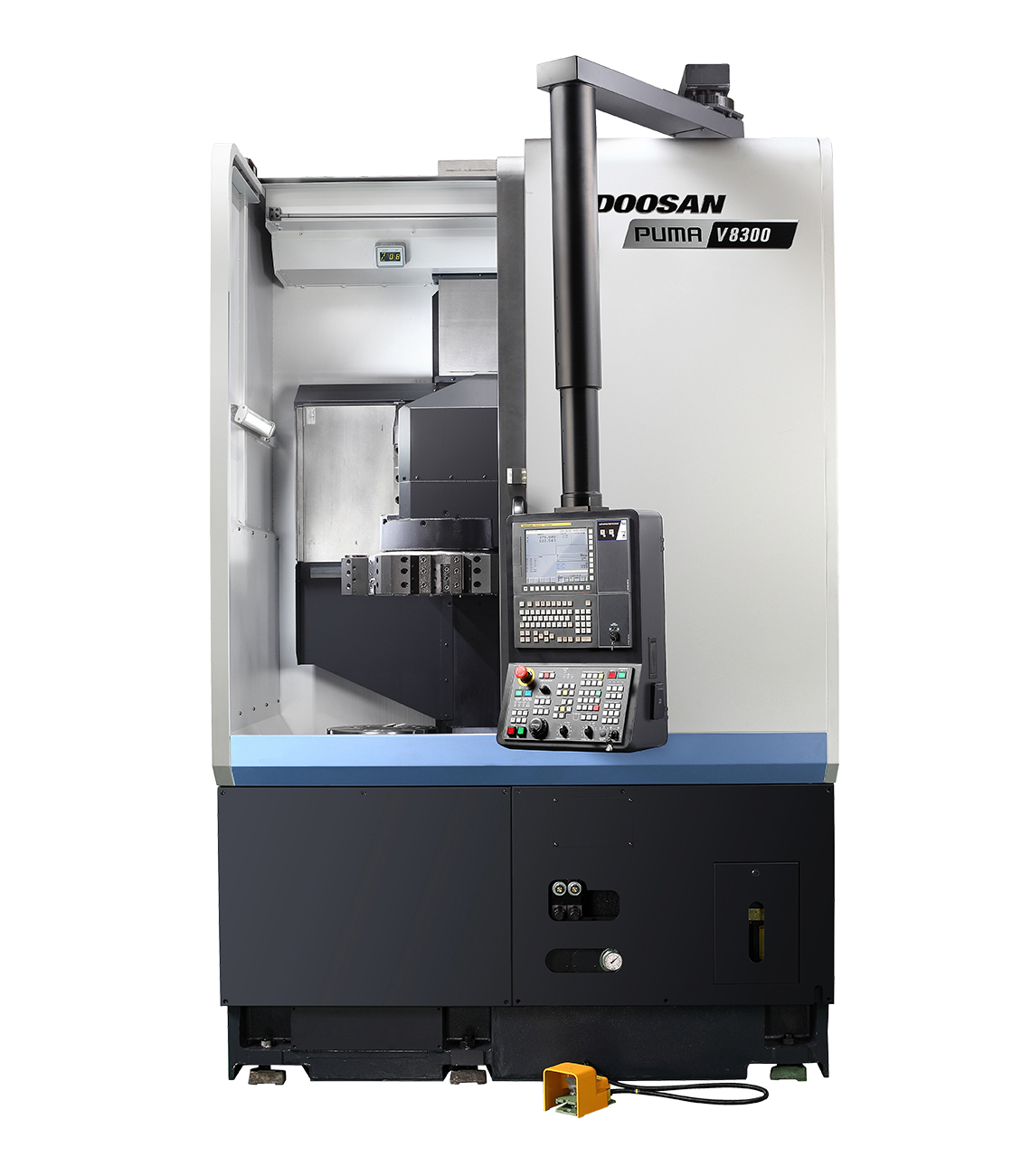

PUMA V8300

PUMA V Series

Multiply your cutting power and minimize your floorspace with the PUMA V series turning center. Utilizing a cartridge style spindle and a tightly-coupled bearing assembly, the PUMA V centers are expertly adept at handling heavy workpieces and controlling thermal stability in long run operations. Featuring a cast iron Meehanite bed and box type column casting, these machines remain stable even under the most intense cutting conditions.

PUMA V8300

Travels
Travel Distance X-axis
495 mm (19.5 in)
Travel Distance Z-axis
780 mm (31 in)
Rapid Traverse X-axis
20 m/min (787 in/min)
Rapid Traverse Z-axis
20 m/min (787 in/min)
Capacity
Max Turning Diameter
⌀830 mm (32.7 in)
Max Turning Length
750 mm (29.5 in)
Max Table Load
870 kg (1918 lbs)
Spindle to Table Distance
1139 mm (44.8 in)
Spindle
Speed
2000 rpm
Power
37 kW (50 Hp)
Torque
2592 Nm (1912 ft-lbs)
Tooling
Shank
BMT-KEY
Turret Stations
12 Slot
Boring Bar Diameter
⌀60 mm (2.5 in)
Machine Size
Length
2005 mm (78.9 in)
Height
3636 mm (143 in)
Width
2860 mm (112.5)
