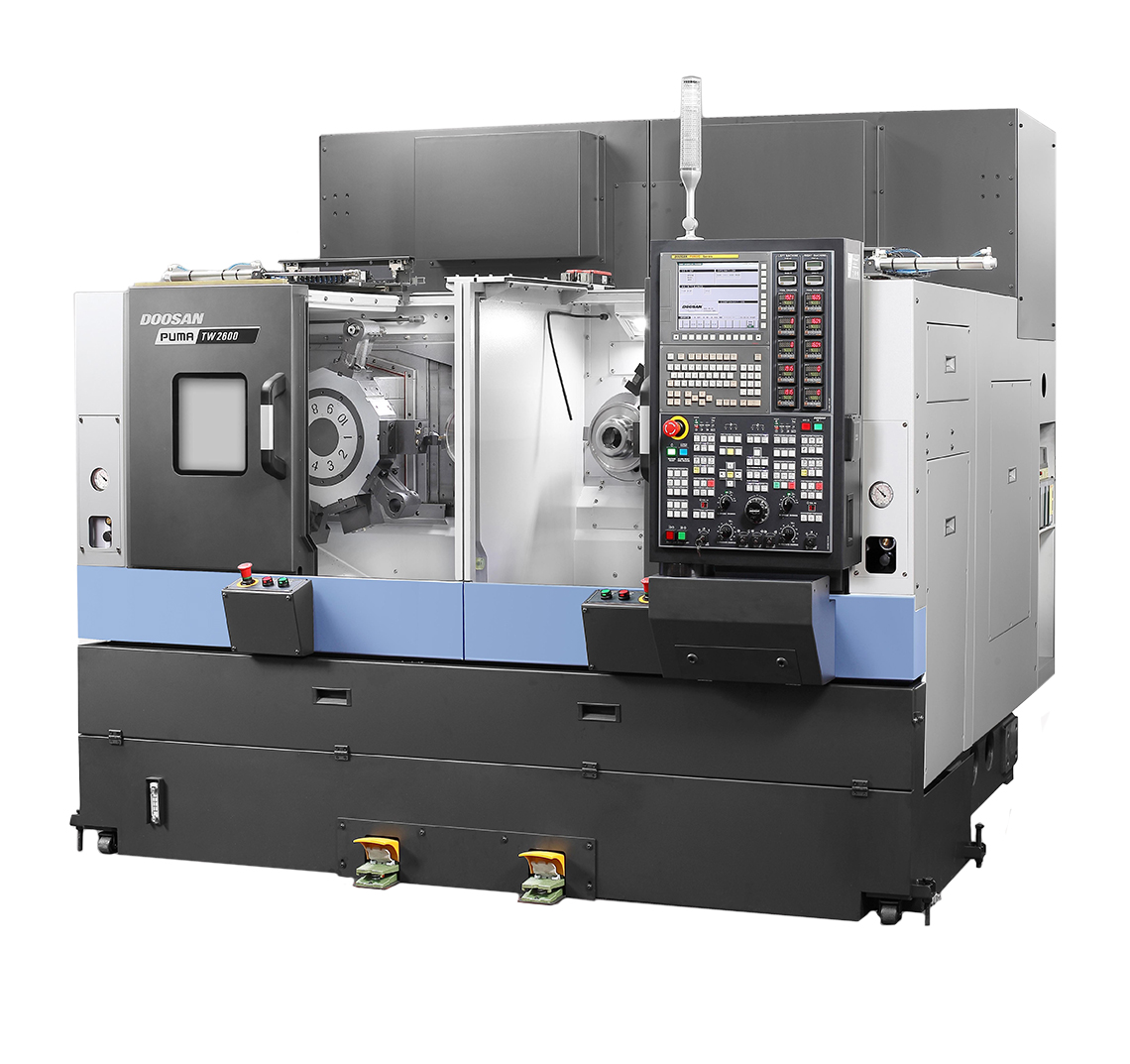

PUMA TW2600M

PUMA TW Series

The TW Series is Doosan's horizontal turning center designed for doubled efficiency equipped with twin spindles. The dual spindle design features parallel spindles, turrets, peripherals, and gantry loaders for increased efficiency and output.

PUMA TW2600M

Travels
Travel Distance X-axis
190 mm (7.5 in)
Travel Distance Z-axis
180 mm (7.1 in)
Rapid Traverse X-axis
24 m/min (945 in/min)
Rapid Traverse Z-axis
24 m/min (945 in/min)
Capacity
Max Turning Diameter
⌀360 mm (14.2 in)
Max Turning Length
170 mm (6.7 in)
Through Hole Diameter
⌀52 mm (2 in)
Spindle
Number of Spindles
2
Chuck Size
8-10 in
Speed
3500 rpm
Power
18.5 kW (25 Hp)
Torque
404 Nm (298 ft-lbs)
Distance Between Spindle Centers
460 mm (18.1 in)
Tooling
Shank
BMT-55
Turret Stations
10/Turret
Boring Bar Diameter
⌀40 mm (1.5 in)
Rotary Tool Speed
5000 rpm
Rotary Tool Power
7.5 kW (10 Hp)
Rotary Tool Torque
47 Nm (34.7 ft-lbs)
Machine Size
Length
2520 mm (99 in)
Height
2150 mm (85 in)
Width
2061 mm (81 in)
