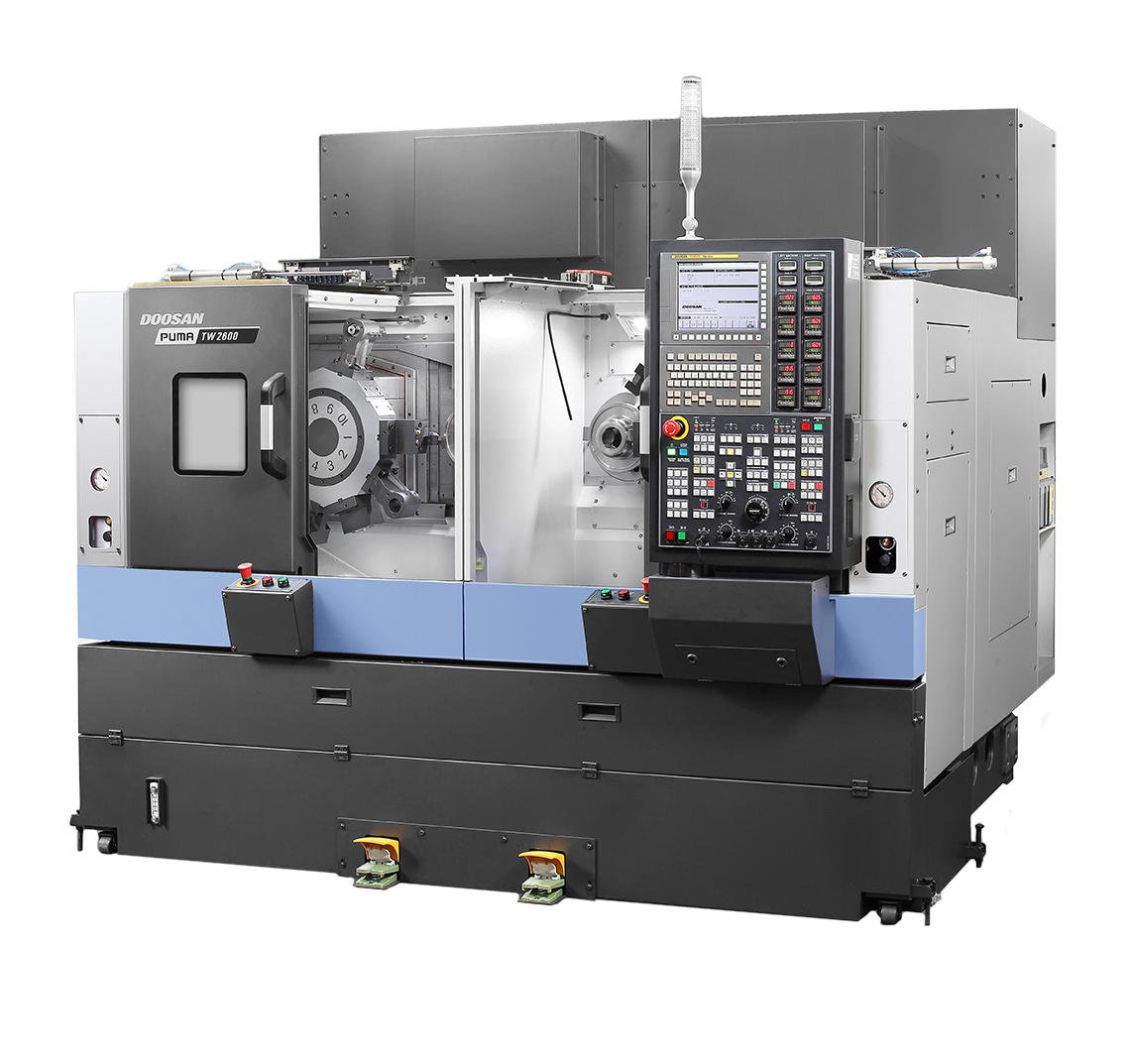

The TW Series is DN Solutions (formerly Doosan Machine Tools) horizontal turning center designed for doubled efficiency equipped with twin spindles. The dual spindle design features parallel spindles, turrets, peripherals, and gantry loaders for increased efficiency and output.
You are here
PUMA TW2100
PUMA TW Series
PUMA TW2100
Travels
Travel Distance X-axis
|
135 mm (5.3 in)
|
Travel Distance Z-axis
|
160 mm (6.3 in)
|
Rapid Traverse X-axis
|
24 m/min (945 in/min)
|
Rapid Traverse Z-axis
|
24 m/min (945 in/min)
|
Capacity
Max Turning Diameter
|
⌀240 mm (9.4 in)
|
Max Turning Length
|
128 mm (5 in)
|
Through Hole Diameter
|
⌀51 mm (2 in)
|
Spindle
Number of Spindles
|
2
|
Chuck Size
|
6-8 in
|
Speed
|
6000 rpm
|
Power
|
15 kW (20 Hp)
|
Torque
|
127 Nm (93.6 ft-lbs)
|
Distance Between Spindle Centers
|
360 mm (14.2 in)
|
Tooling
Shank
|
BMT-KEY
|
Turret Stations
|
8/Turret
|
Boring Bar Diameter
|
⌀40 mm (1.5 in)
|
Machine Size & Weight
Length
|
2,130 mm (85 in.)
|
Height
|
2,278 mm (90 in.)
|
Width
|
2,098 mm (82 in.)
|
Weight
|
4,650 kg (10,250 lbs.)
|
