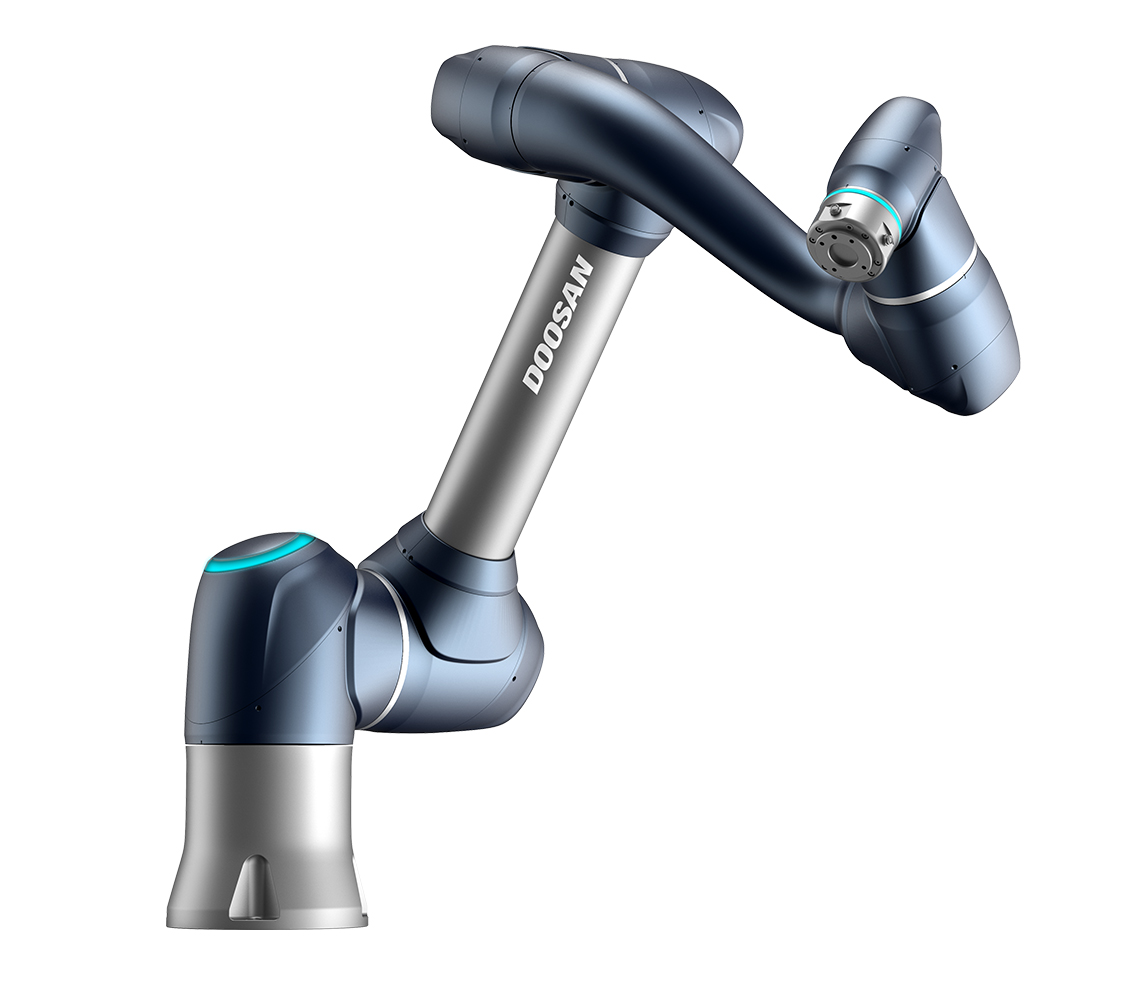

H2515

H-Series

The new Doosan Robotics H-series is the most powerful cobot in the market. The H-series cobot features models with up to 25 kg (55 lbs) payload and up to 1,700 mm (66.9 in.) reach. The cobot comes equipped with 6 torque sensors and counterbalance mechanisms for maximum safety, and has half the weight of other cobots in its class. The H-series is an ideal automation solution for palletizing, machine tending, and heavy object handling.

H2515

Robot Arm
Reach
1,500 mm (59 in.)
Weight
72 kg (158.7 lb)
Max Payload
25 kg (55.1 lbs.)
Tooling
Speed
1 m/s
Movement
Joint 1 Range/Speed
±360°;100°/sec
Joint 2 Range/Speed
±130°;80°/sec
Joint 3 Range/Speed
±160°;100°/sec
Joint 4 Range/Speed
±360°;180°/sec
Joint 5 Range/Speed
±360°;180°/sec
Joint 6 Range/Speed
±360°;180°/sec
