The highly flexible and productive Modular QX Series Die-Sinking EDM features a highly rigid fine grained cast iron and graphite blended mechanical structure that allows a table load of up to 55,000 lbs. The QX Series features a reinforced C-axis for increased erosion stability on high inertia machining, direct position measuring, increase generator power up to 400 A, and control of up to 8 simultaneous interpolating axes and volumetric compensation in the entire work area. Additionally, each QX Series model offers configuration options with varying Y and Z-axis travels to provide an EDM solution that can fit a wide range of applications.
You are here

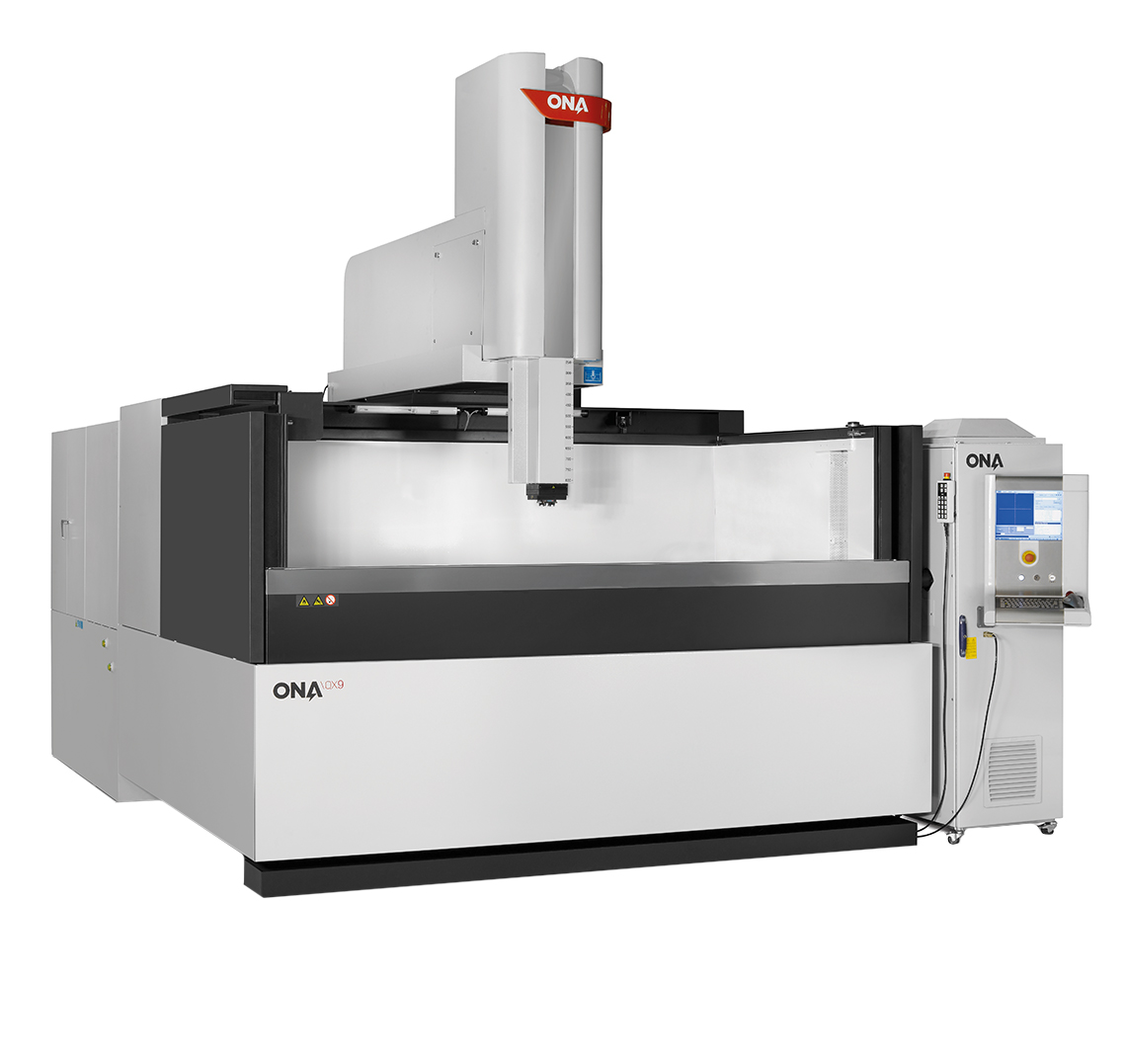

QX9
Modular QX Series
QX9
Travels
Travel Distance X-axis
|
2,000 mm (78.7 in.)
|
Travel Distance Y-axis
|
1,200 mm (47.2 in.)
|
Electrode Holder Travel
|
800 mm (31.5 in.)
|
Table to Head Distance
|
1,200 mm (47.2 in.)
|
Worktank
Length
|
2,800 mm (110.2 in.)
|
Width
|
1,700 mm (66.9 in.)
|
Height
|
1,000 mm (39.4 in.)
|
Table Size
|
2,200 x 1,200 mm (86.6 x 47.2 in.)
|
Table Load
|
22,000 kg (48,501 lbs.)
|
Table Type
|
Drop Door
|
Electrode
Max Weight
|
300 kg (661 lbs.)
|
Generator Intensity
|
100/200/400 A
|
Machine Size & Weight
Length
|
4,440 mm (174.8 in.)
|
Height
|
3,585 mm (141.1 in.)
|
Width
|
5,400 mm (212.6 in.)
|
Weight
|
18,500 kg (40,785 lbs.)
|
