TQX7

Double Head TQX Series

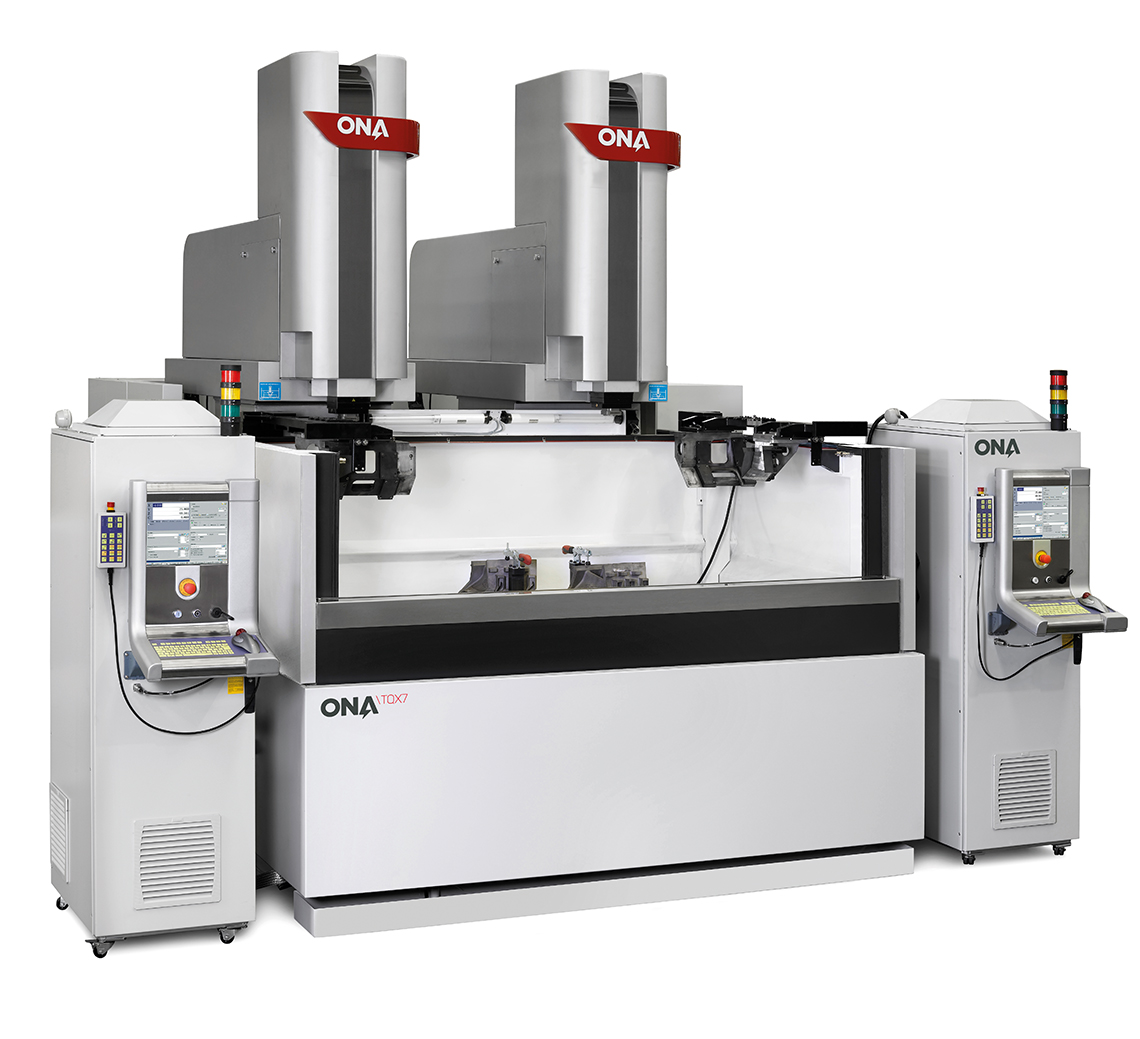

The ONA Double Head TQX7 Series Wire-Cut EDM has all the modular, rigid, and productive features of the QX Series with the addition of an extra head. The dual head TQX Series reduces erosion time by up to 50% and increases productivity by up to 200%.

TQX7

Travels
Travel Distance X-axis (Total)
1,500 mm (59 in.)
Travel Distance X-axis (Each Head)
830 mm (32.7 in.)
Travel Distance Y-axis
700/1,000 mm (27.5/39.4 in.)
Electrode Holder Travel
650/800 mm (25.6/31.5 in.)
Table to Head Distance
1,200 mm (47.2 in.)
Worktank
Length
2,300 mm (90.5 in.)
Width
1,500 mm (59 in.)
Height
1,000 mm (39.4 in.)
Table Size
1,700 x 1,000 mm (66.9 x 39.4 in.)
Table Load
15,000 kg (33,069 lbs.)
Table Type
Drop Door
Electrode
Max Weight
300 kg (661 lbs.)
Generator Intensity
100/200/400 A
Machine Size & Weight
Length
3,860 mm (152 in.)
Height
3,585 mm (141.1 in.)
Width
4,525 mm (178.1 in.)
Weight
13,800 kg (30,423.8 lbs.)
