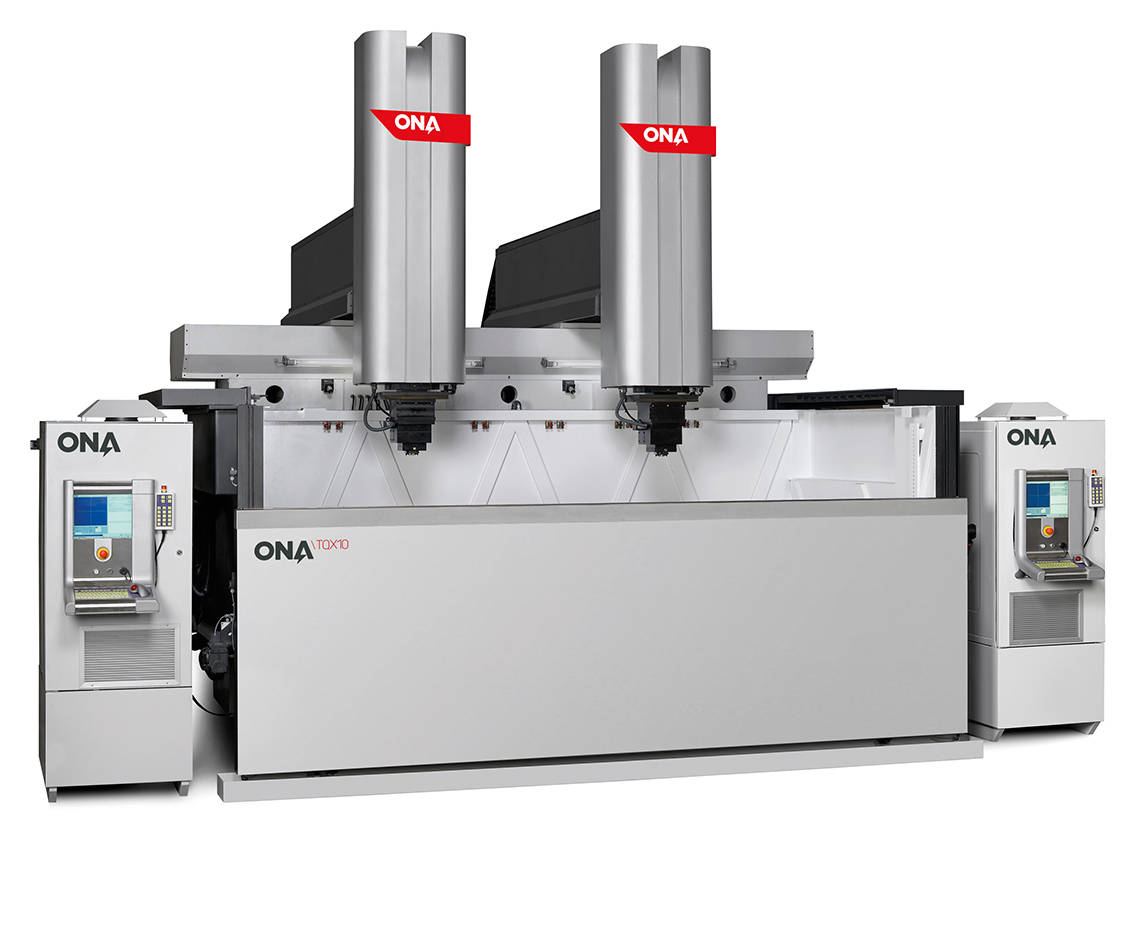

The ONA Double Head TQX7 Series Wire-Cut EDM has all the modular, rigid, and productive features of the QX Series with the addition of an extra head. The dual head TQX Series reduces erosion time by up to 50% and increases productivity by up to 200%.
You are here
TQX10
Double Head TQX Series
TQX10
Travels
Travel Distance X-axis (Total)
|
3,000 mm (118.1 in.)
|
Travel Distance X-axis (Each Head)
|
2,000 mm (78.7 in.)
|
Travel Distance Y-axis
|
1,000/1,500 mm (39.4/59 in.)
|
Electrode Holder Travel
|
800/1,000 mm (31.5/39.4 in.)
|
Table to Head Distance
|
1,200 mm (47.2 in.)
|
Worktank
Length
|
4,000 mm (157.5 in.)
|
Width
|
2,000 mm (78.7 in.)
|
Height
|
1,250 mm (49.2 in.)
|
Table Size
|
3,200 x 1,600 mm (126 x 63 in.)
|
Table Load
|
25,000 kg (55,115 lbs.)
|
Table Type
|
Drop Door
|
Electrode
Max Weight
|
300 kg (661 lbs.)
|
Generator Intensity
|
100/200/400 A
|
Machine Size & Weight
Length
|
6,640 mm (261.4 in.)
|
Height
|
4,120 mm (162.2 in.)
|
Width
|
5,800 mm (228.3 in.)
|
Weight
|
22,500 kg (49,604 lbs.)
|
