The ONA Compact QX Series is designed for maximum precision and long-lasting reliability. Each model features 100% digital generator that is completely configurable and programmable, up to 500% reduced electrode wear with erosion optimization and monitoring, a 30% more powerful generator reaching up to 400 A, and 8 simultaneous interpolating axes control. The Compact QX Series has a travel capacity range of 15.7” x 11.8” x 11.8” to 39.3” x 29.5” x 25.6”, ideal for a wide range of small to medium size parts.
You are here

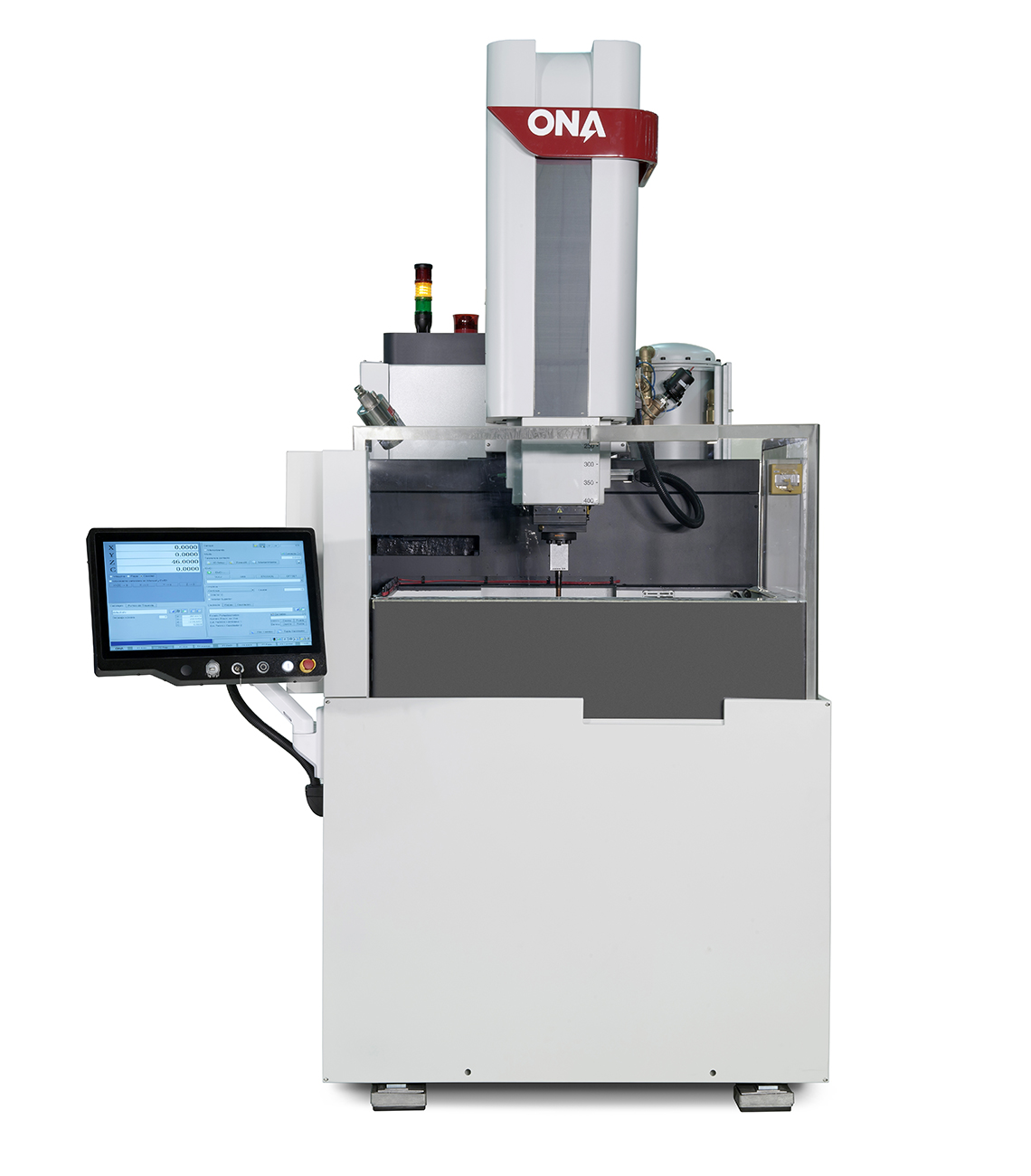

QX4
Compact QX Series
QX4
Travels
Travel Distance X-axis
|
600 mm (23.6 in.)
|
Travel Distance Y-axis
|
400 mm (15.7 in.)
|
Electrode Holder Travel
|
400 mm (15.7 in.)
|
Table to Head Distance
|
675 mm (26.6 in.)
|
Worktank
Length
|
1,070 mm (42.1 in.)
|
Width
|
770 mm (30.3 in.)
|
Height
|
450 mm (17.7 in.)
|
Table Size
|
800 x 600 mm (31.5 x 23.6 in.)
|
Table Load
|
1,500 kg (3,306 lbs.)
|
Table Type
|
Drop Tank
|
Electrode
Max Weight
|
100 kg (220 lbs.)
|
Max Roughness
|
0.08 – 0.1 µm Ra (3.1 – 3.9 µin Ra)
|
Generator Intensity
|
100/200/400 A
|
Machine Size & Weight
Length
|
2,270 mm (89.4 in.)
|
Height
|
2,850 mm (112.2 in.)
|
Width
|
2,800 mm (110.2 in.)
|
Weight
|
4,900 kg (10,802 lbs.)
|
