The ONA Compact QX Series is designed for maximum precision and long-lasting reliability. Each model features 100% digital generator that is completely configurable and programmable, up to 500% reduced electrode wear with erosion optimization and monitoring, a 30% more powerful generator reaching up to 400 A, and 8 simultaneous interpolating axes control. The Compact QX Series has a travel capacity range of 15.7” x 11.8” x 11.8” to 39.3” x 29.5” x 25.6”, ideal for a wide range of small to medium size parts.
You are here

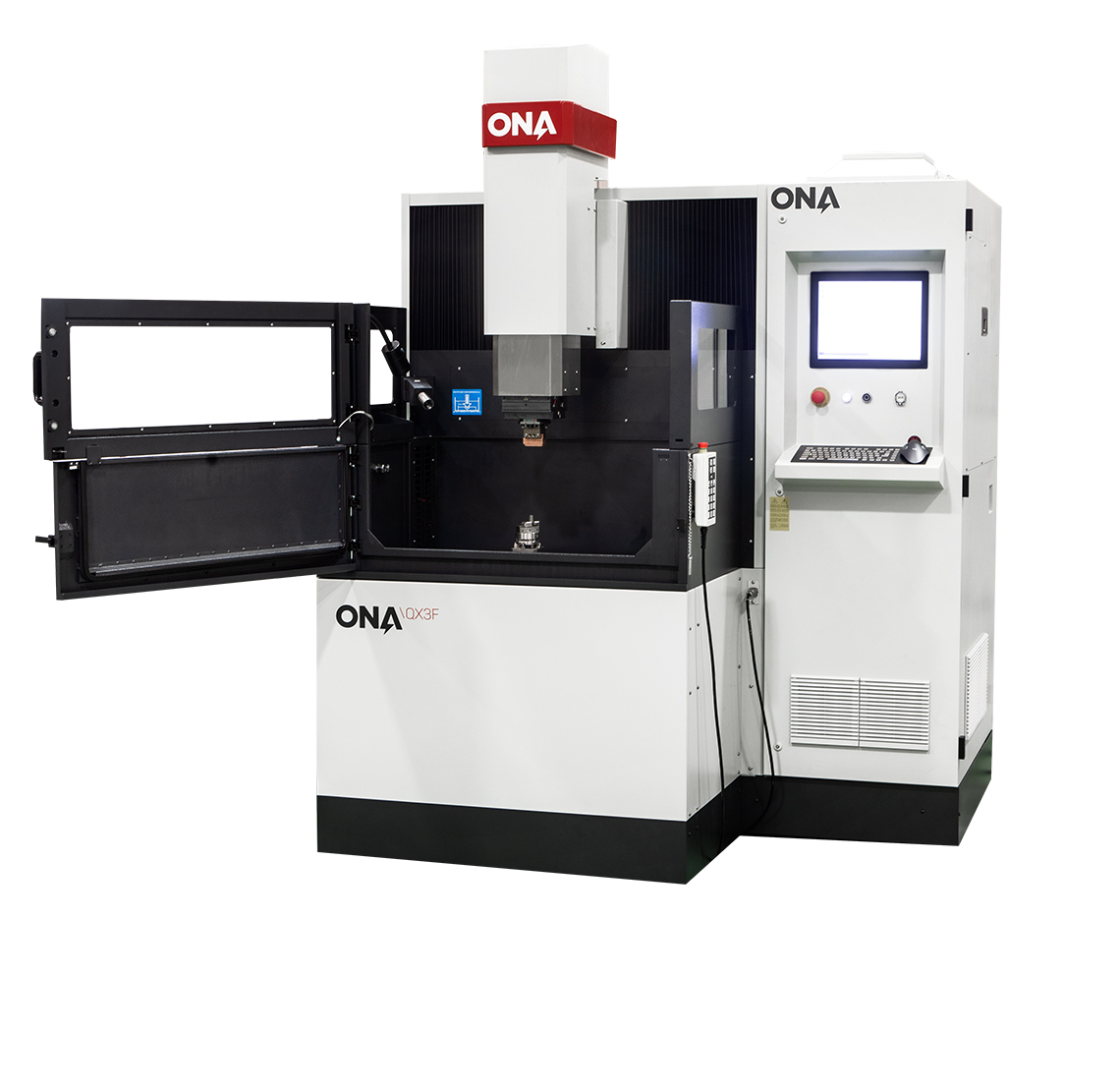

QX3F
Compact QX Series
QX3F
Travels
Travel Distance X-axis
|
400 mm (15.7 in.)
|
Travel Distance Y-axis
|
300 mm (11.8 in.)
|
Electrode Holder Travel
|
300 mm (11.8 in.)
|
Table to Head Distance
|
470 mm (18.5 in.)
|
Worktank
Length
|
920 mm (36.2 in.)
|
Width
|
590 mm (23.2 in.)
|
Height
|
350 mm (13.8 in.)
|
Table Size
|
600 x 400 mm (23.6 x 15.7 in.)
|
Table Load
|
750 kg (1,653 lbs.)
|
Table Type
|
Fixed
|
Electrode
Max Weight
|
50 kg (110 lbs.)
|
Max Roughness
|
0.08 – 0.1 µm Ra (3.1 – 3.9 µin Ra)
|
Generator Intensity
|
100 A
|
Machine Size & Weight
Length
|
1,750 mm (68.9 in.)
|
Height
|
2,210 mm (87 in.)
|
Width
|
1,590 mm (62.6 in.)
|
Weight
|
2,500 kg (5,511 lbs.)
|
