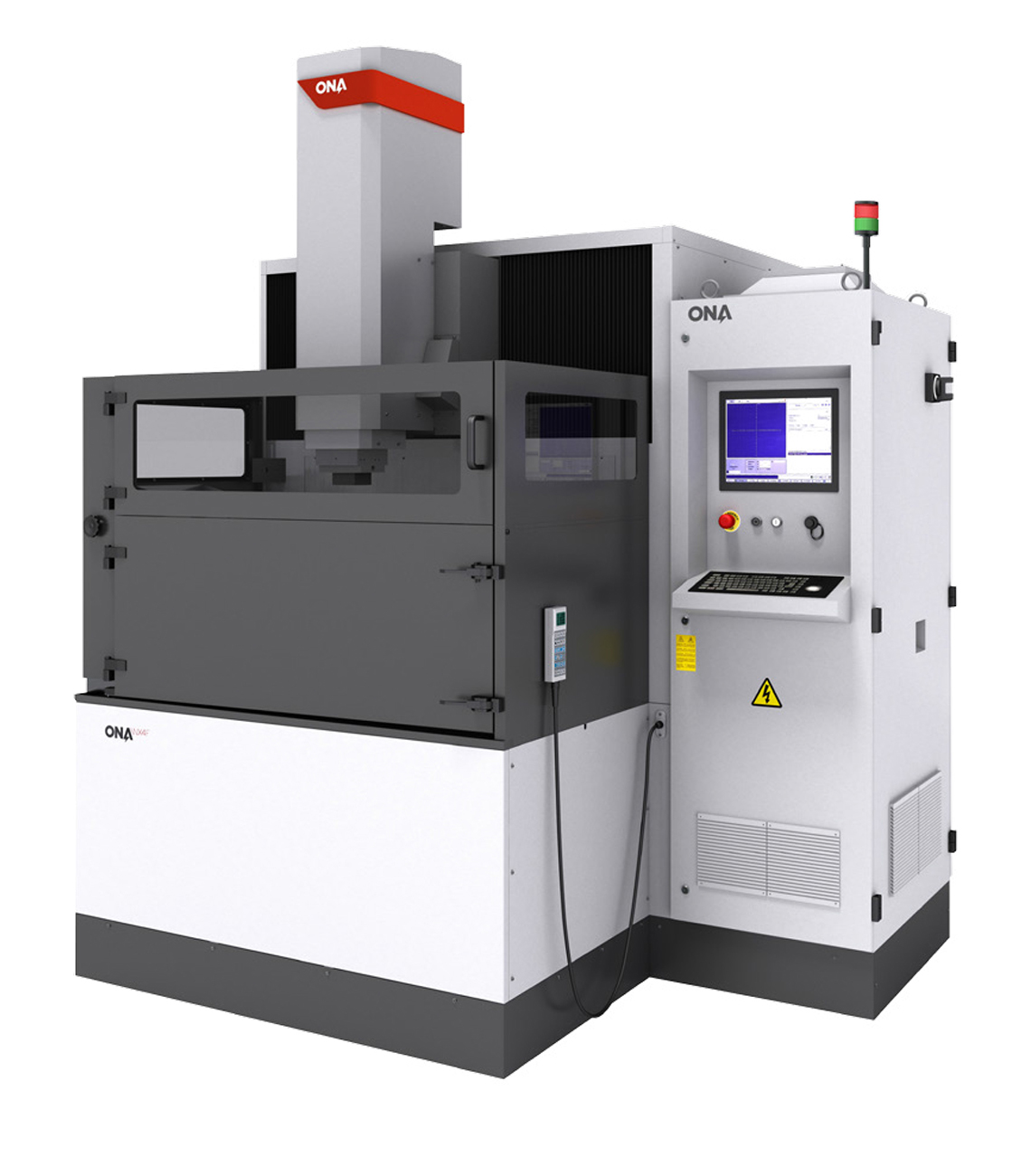

NX4F

Compact NX Series

The high production Compact NX Series features high-speed pulse technology that allows shorter machining times on parts with difficult flushing, consistent finish quality on large surface areas, and deep grooves with the highest quality and precision. Additionally, the NX Series maximizes generator performance on evolutive surface electrodes.

NX4F

Travels
Travel Distance X-axis
600 mm (23.6 in.)
Travel Distance Y-axis
400 mm (15.7 in.)
Electrode Holder Travel
400 mm (15.7 in.)
Table to Head Distance
675 mm (26.6 in.)
Worktank
Length
1,250 mm (49.2 in.)
Width
780 mm (30.7 in.)
Height
490 mm (19.3 in.)
Table Size
800 x 600 mm (31.5 x 23.6 in.)
Table Load
1,500 kg (3,306 lbs.)
Table Type
Fixed
Electrode
Max Weight
75 kg (165 lbs.)
Max Roughness
0.1 µm Ra (3.9 µin Ra)
Generator Intensity
100 A
Machine Size & Weight
Length
2,123 mm (83.6 in.)
Height
2,738 mm (107.8 in.)
Width
2,403 mm (94.6 in.)
Weight
4,500 kg (9,921 lbs.)
