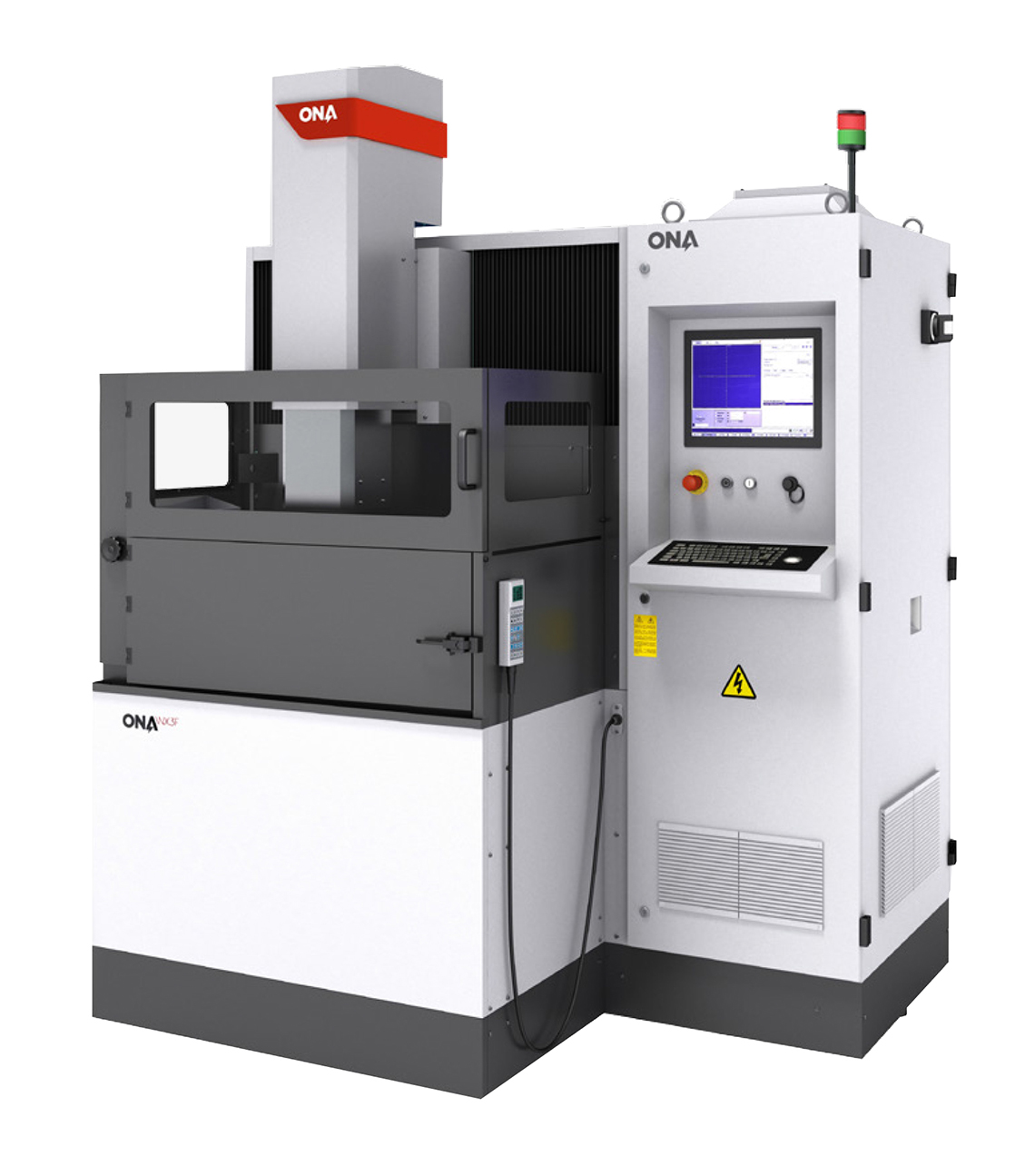

The high production Compact NX Series features high-speed pulse technology that allows shorter machining times on parts with difficult flushing, consistent finish quality on large surface areas, and deep grooves with the highest quality and precision. Additionally, the NX Series maximizes generator performance on evolutive surface electrodes.
You are here
NX3F
Compact NX Series
NX3F
Travels
Travel Distance X-axis
|
400 mm (15.7 in.)
|
Travel Distance Y-axis
|
300 mm (11.8 in.)
|
Electrode Holder Travel
|
300 mm (11.8 in.)
|
Table to Head Distance
|
470 mm (18.5 in.)
|
Worktank
Length
|
920 mm (36.2 in.)
|
Width
|
590 mm (23.2 in.)
|
Height
|
350 mm (13.8 in.)
|
Table Size
|
600 x 400 mm (23.6 x 15.7 in.)
|
Table Load
|
750 kg (1,653 lbs.)
|
Table Type
|
Fixed
|
Electrode
Max Weight
|
50 kg (110 lbs.)
|
Max Roughness
|
0.08 – 0.1 µm Ra (3.1 – 3.9 µin Ra)
|
Generator Intensity
|
100 A
|
Machine Size & Weight
Length
|
1,753 mm (69 in.)
|
Height
|
2,320 mm (91.3 in.)
|
Width
|
1,600 mm (63 in.)
|
Weight
|
2,500 kg (5,511 lbs.)
|
