IBARMIA ZVH 45L3000 STAR EDITION is a multi-tasking machine that features the ability to: machine with the rotary table, fixed table, continuous tilting head, high feed and shoulder milling, vertical drilling, horizontal drilling, tapping, and 5-Axis capabilities.
You are here
ZVH 45/L3000 STAR
ZVH STAR

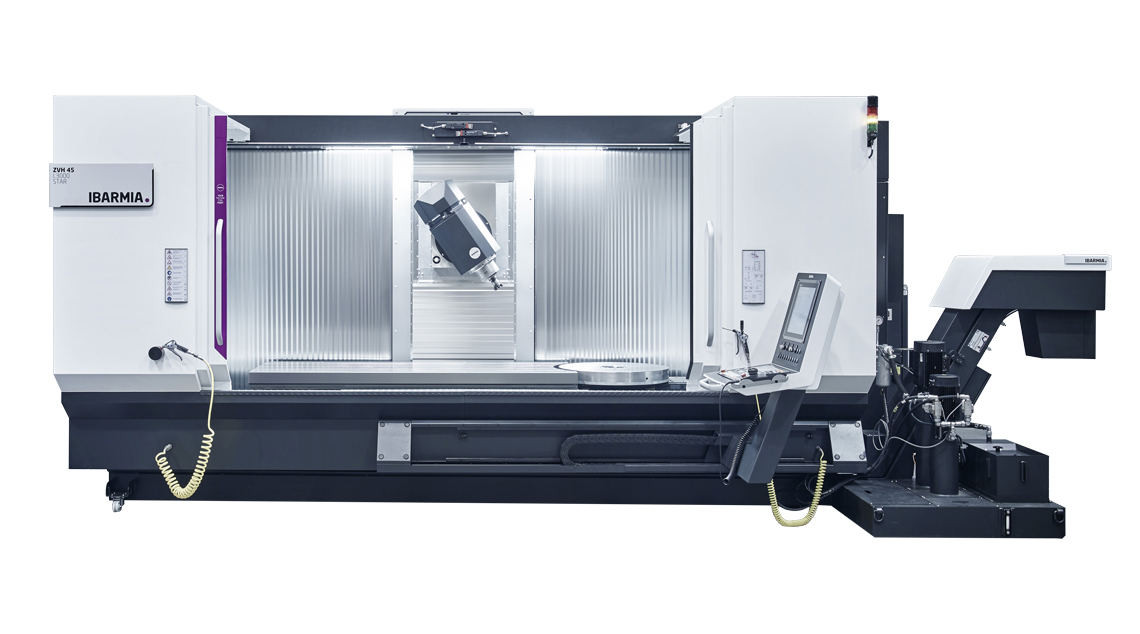

The IBARMIA ZVH 45/L3000 STAR Special Edition moving column machining center is built with 5-axis milling, fixed and rotary table machining capabilities. The ZVH 45 cuts at rapid speeds up to 131.2 ft./min. with X, Y, Z strokes up to 118.1” x 31.4” x 35.4”. The spindle boasts a powerful 52 hp, 137.92 ft-lbs of torque, 12k rpm CAT-40 (HSK A-63 option) spindle equipped with a 40 tool ATC magazine. This model is exclusive to the U.S. through Ellison Technologies and is your entry point into powerfully productive moving column machining.
ZVH 45/L3000 STAR
Travels
Travel Distance X-axis
|
3,000 mm (118.1 in.)
|
Travel Distance Y-axis
|
800 mm (31.5 in.)
|
Travel Distance Z-axis
|
800 mm (31.5 in.)
|
Travel Distance B-axis (Optional)
|
±105°
|
Rapid Traverse X-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Y-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Z-axis
|
40 m/min. (1,575 in./min.)
|
Table
Table Size
|
850 x 3,000 mm (33.5 x 118.1 in.)
|
Max Load
|
2,000 kg/m² (409.6 lbs/ft².)
|
Rotary Table (Option)
Table Size
|
⌀800 mm (31.5 in)
|
Speed
|
16.7 rpm
|
Spindle
Speed
|
12,000 rpm
|
Power
|
27/39 kW (36.2/52.3 Hp)
|
Torque
|
130/187 Nm (95.9/137.9 ft-lbs.)
|
Tooling
Shank
|
SK-40
|
Changer Capacity
|
40
|
Max Diameter
|
⌀90/150 mm (3.5/5.9 in.)
|
Max Length
|
350 mm (13.8 in.)
|
Machine Size
Length
|
7,102 mm (279.6 in.)
|
Height
|
3,067 mm (120.7 in.)
|
Width
|
4,798 mm (188.9 in.)
|
