ZVH 45/L1500 STAR

ZVH STAR

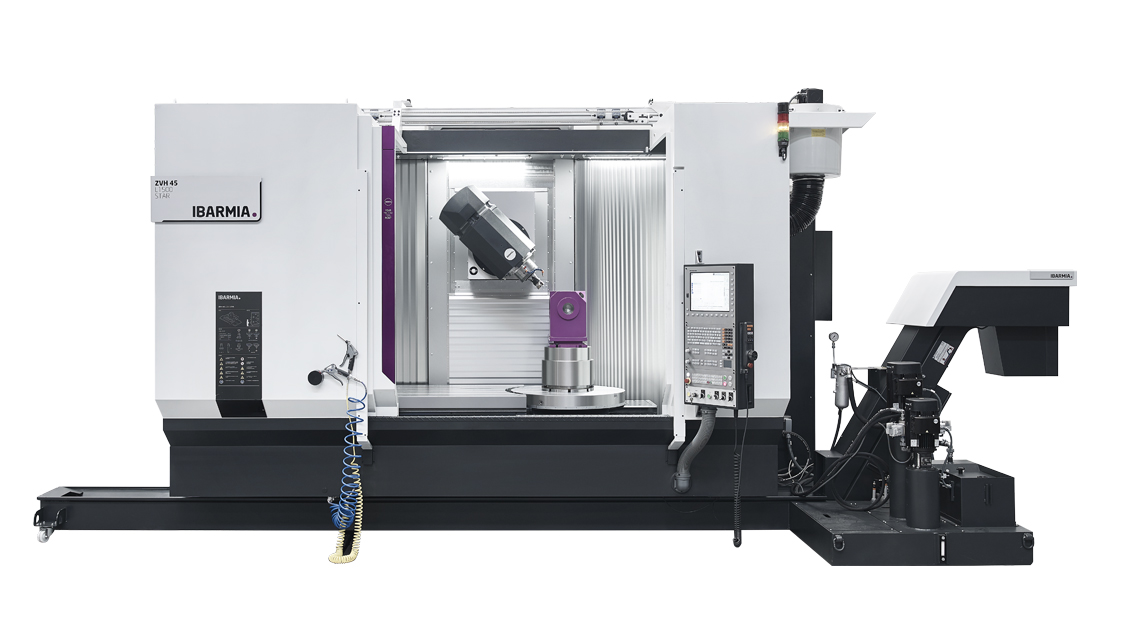

The IBARMIA ZVH 45/L3000 STAR Special Edition moving column machining center is built with 5-axis milling, fixed and rotary table machining capabilities. The ZVH 45 cuts at rapid speeds up to 131.2 ft./min. with X, Y, Z strokes up to 118.1” x 31.4” x 35.4”. The spindle boasts a powerful 52 hp, 137.92 ft-lbs of torque, 12k rpm CAT-40 (HSK A-63 option) spindle equipped with a 40 tool ATC magazine. This model is exclusive to the U.S. through Ellison Technologies and is your entry point into powerfully productive moving column machining.

ZVH 45/L1500 STAR

Travels
Travel Distance X-Axis
1,500 mm (59 in.)
Travel Distance Y-Axis
800 mm (31.5 in.)
Travel Distance Z-Axis
800 mm (31.5 in.)
Travel Distance B-axis
±105°
Rapid Traverse X-axis
40 m/min. (1.574 in./min.)
Rapid Traverse Y-axis
40 m/min. (1.574 in./min.)
Rapid Traverse Z-axis
40 m/min. (1,575 in./min.)
Table
Table Size
850 x 1,500 mm (33.5 x 59 in.)
Max Load
2,000 kg/m² (409.6 lbs/ft².)
Rotary Table
Table Size
⌀800 mm (31.5 in)
Speed
16.7 rpm
Spindle
Speed
12,000 rpm
Power
27/39 kW (36.2/52.3 Hp)
Torque
130/187 Nm (95.9/137.9 ft-lbs.)
Tooling
Shank
HSK-63
Changer Capacity
36
