The ZVH MULTIPROCESS Series minimizes the amount of machines required and reduces the machining times of complex pieces. Designed with up-to-date groundbreaking and unstoppable technology, the ZVH MULTIPROCESS sets milestones in the machining industry and raises the bar of its users over their competitors. The multiprocess efficiencies improve the quality of the final piece requiring fewer machines and set ups, reducing the cost of the initial investment as well as the floor space required, eliminating transit times of pieces moving between machines and simplifies the production management. This machining center features 5-axis machining, mill turn, and lathe machining capabilities.
You are here

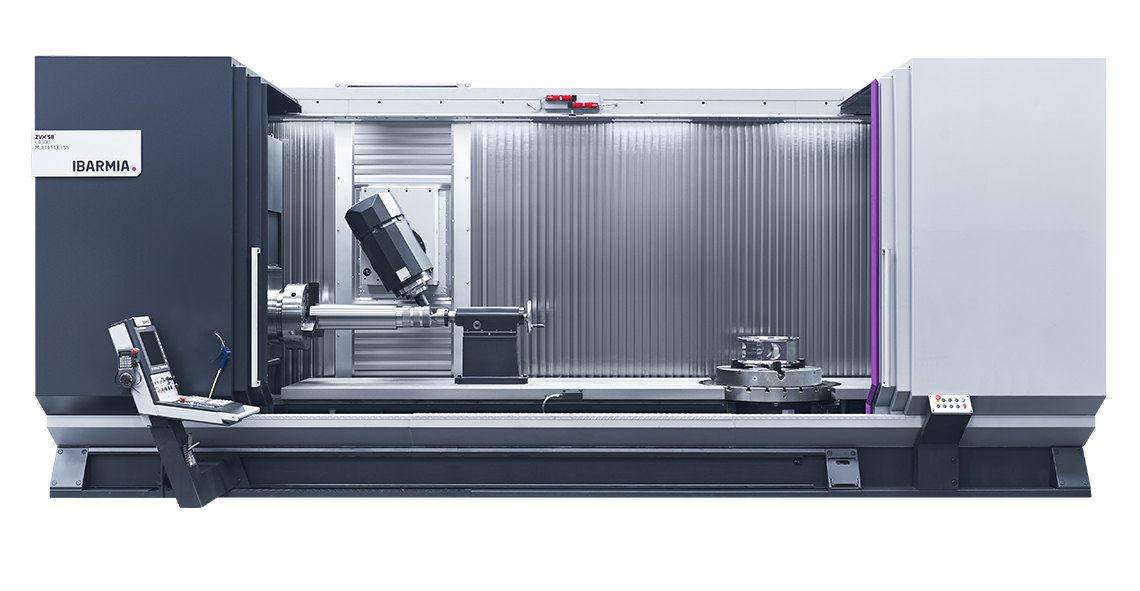

ZVH 58 MULTIPROCESS
ZVH MULTIPROCESS
ZVH 58 MULTIPROCESS
Travels
Travel Distance X-axis
|
Up to 12,000 mm (472.4 in.)
|
Travel Distance Y-axis
|
1,000 mm (39.3 in.)
|
Travel Distance Z-axis
|
1,100 mm (43.3 in.)
|
Travel Distance B-axis (Optional)
|
±105°
|
Rapid Traverse X-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Y-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Z-axis
|
40 m/min. (1,575 in./min.)
|
Table
Table Size
|
1,050 x Up to 12,000 mm (41.3 x Up to 472.4 in.)
|
Max Load
|
2,000 kg/m² (409.6 lbs./ft².)
|
Rotary Table (Option)
Table Size
|
⌀1,000 mm (39.4 in.)
|
Speed
|
16.7 rpm
|
Spindle (Milling)
Speed
|
12,000 rpm
|
Power
|
48/74 kW (64.3/99.2 Hp)
|
Torque
|
200/452 Nm (147.5/333.4 ft-lbs.)
|
Spindle (Turning)
Chuck Size
|
Up to 24 in.
|
Speed
|
2,000 rpm
|
Tooling
Shank
|
HSK A-100
|
Changer Capacity
|
40/60/80 (+120)
|
Max Diameter
|
⌀125/175 mm (4.9/6.9 in.)
|
Max Length
|
500 mm (19.7 in.)
|
Machine Size
Size
|
Varies by Configuration
|
