ZVH 45 MULTIPROCESS

This product is not available.

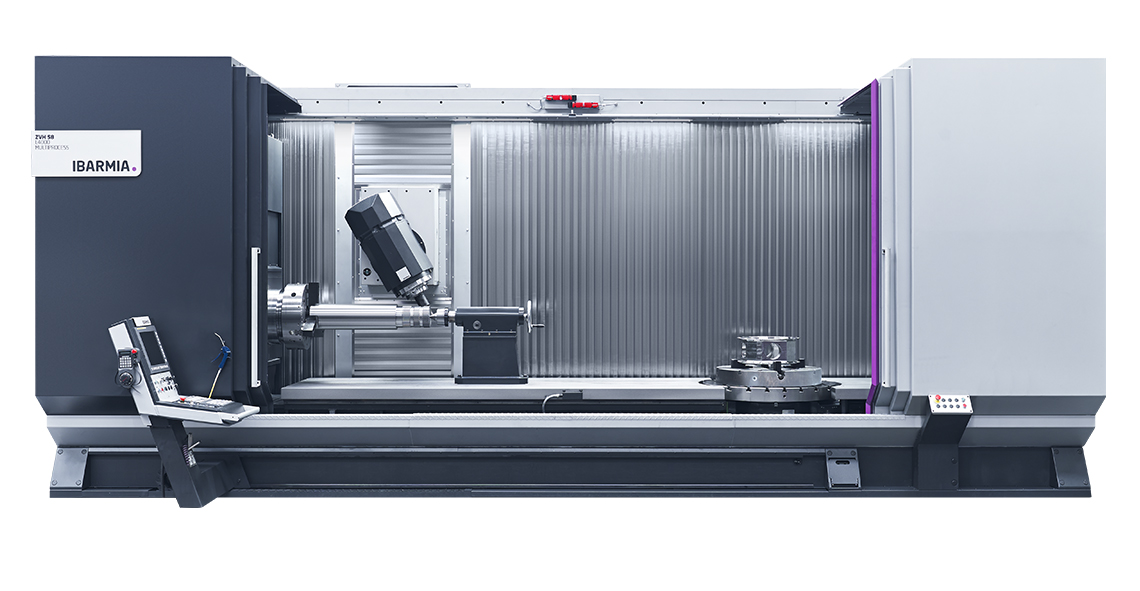

ZVH 45  MULTIPROCESS MOVING COLUMN MACHINE

ZVH MULTIPROCESS

The ZVH MULTIPROCESS Series minimizes the amount of machines required and reduces the machining times of complex pieces. Designed with up-to-date groundbreaking and unstoppable technology, the ZVH MULTIPROCESS sets milestones in the machining industry and raises the bar of its users over their competitors. The multiprocess efficiencies improve the quality of the final piece requiring fewer machines and set ups, reducing the cost of the initial investment as well as the floor space required, eliminating transit times of pieces moving between machines and simplifies the production management. This machining center features 5-axis machining, mill turn, and lathe machining capabilities.

ZVH 45 MULTIPROCESS

Travels
Travel Distance X-axis
Up to 12,000 mm (472.4 in.)
Travel Distance Y-axis
800 mm (31.5 in.)
Travel Distance Z-axis
900 mm (35.4 in.)
Travel Distance B-axis (Optional)
±105°
Rapid Traverse X-axis
40 m/min. (1,575 in./min.)
Rapid Traverse Y-axis
40 m/min. (1,575 in./min.)
Rapid Traverse Z-axis
40 m/min. (1,575 in./min.)
Table
Table Size
850 x Up to 12,000 mm (33.5 x Up to 472.4 in.)
Max Load
2,000 kg/m² (409.6 lbs./ft².)
Rotary Table (Option)
Table Size
⌀800 mm (31.5 in.)
Speed
16.7 rpm
Spindle (Milling)
Speed
12,000 rpm
Power
30 kW (40.2 Hp)
Spindle (Turning)
Chuck Size
Up to 24 in.
Speed
2,000 rpm
Tooling
Shank
HSK A-63
Changer Capacity
40/60/80 (+120)
Max Diameter
⌀90/125 mm (3.5/4.9 in.)
Max Length
400 mm (15.7 in.)
Machine Size
Size
Varies by Configuration
