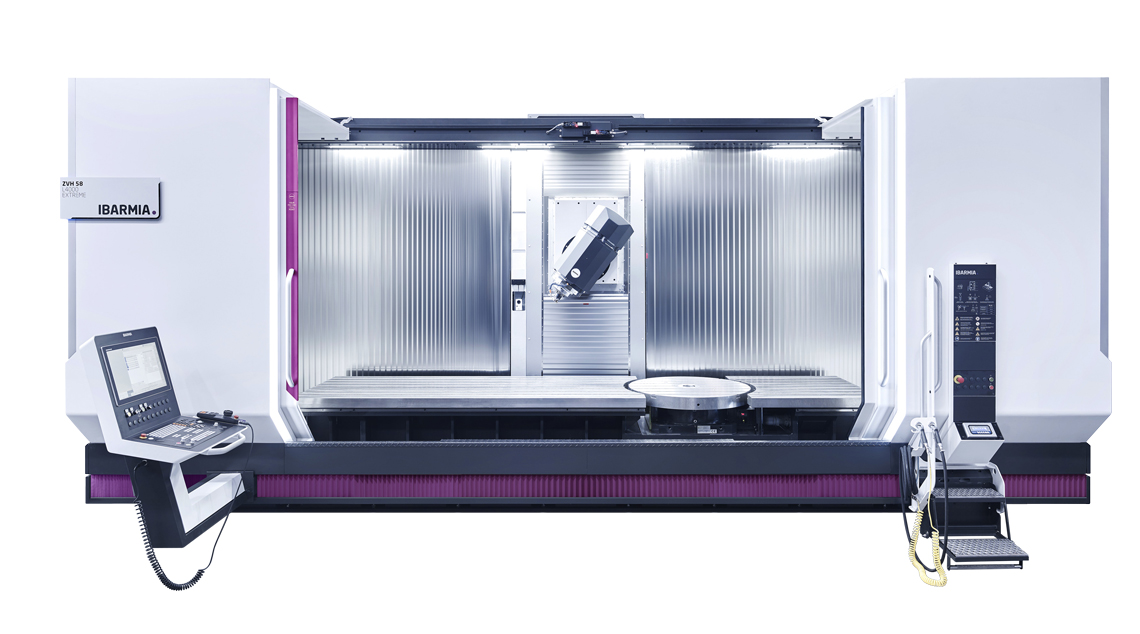

The ZVH EXTREME features the most advanced technology in the market built with fixed table and moving column machining capabilities. The tooling head offers X, Y, Z, and 105 degree rotating B-axis movement and direct axis measuring powered by torque motor transmission delivers extraordinary dynamic movement, automatic collision recovery, and maximum precision in positioning and repeatability. The high torque tool holding allows live and static tooling with the ability to alternate between two separate machining operations utilizing the lathe mounting, fixed table, or horizontal rotating table for enhanced efficiency. Additionally, the machining area features two separate enclosed work spaces to allow human contact with one of the machining areas while the other is in use.
You are here
ZVH 58 EXTREME
ZVH EXTREME
ZVH 58 EXTREME
Travels
Travel Distance X-axis
|
Up to 12,000 mm (472.4 in.)
|
Travel Distance Y-axis
|
1,000 mm (39.4 in.)
|
Travel Distance Z-axis
|
1,100 mm (43.3 in.)
|
Travel Distance B-axis (Optional)
|
±105°
|
Rapid Traverse X-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Y-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Z-axis
|
40 m/min. (1,575 in./min.)
|
Table
Table Size
|
1,050 x Up to 12,000 mm (41.3 x Up to 472.4 in.)
|
Max Load
|
2,000 kg/m² (409.6 lbs./ft².)
|
Rotary Table (Option)
Table Size
|
⌀1,000 mm (39.4 in.)
|
Speed
|
16.7 rpm
|
Spindle
Speed
|
12,000 rpm
|
Power
|
48/74 kW (64.3/99.2 Hp)
|
Torque
|
200/452 Nm (147.5/333.4 ft-lbs.)
|
Tooling
Shank
|
SK-50
|
Changer Capacity
|
40/60/80 (+120)
|
Max Diameter
|
⌀125/175 mm (4.9/6.9 in.)
|
Max Length
|
500 mm (19.7 in.)
|
Machine Size
Size
|
Varies by Configuration
|
