ZVH 40 EXTREME

ZVH EXTREME

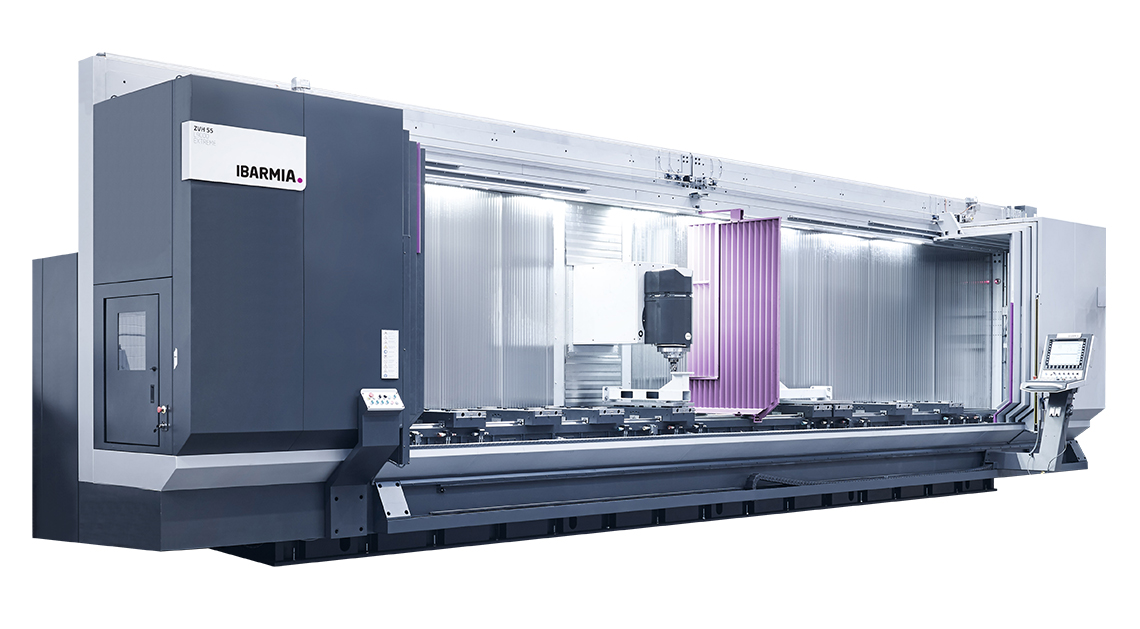

The ZVH EXTREME features the most advanced technology in the market built with fixed table and moving column machining capabilities. The tooling head offers X, Y, Z, and 105 degree rotating B-axis movement and direct axis measuring powered by torque motor transmission delivers extraordinary dynamic movement, automatic collision recovery, and maximum precision in positioning and repeatability. The high torque tool holding allows live and static tooling with the ability to alternate between two separate machining operations utilizing the lathe mounting, fixed table, or horizontal rotating table for enhanced efficiency. Additionally, the machining area features two separate enclosed work spaces to allow human contact with one of the machining areas while the other is in use.

ZVH 40 EXTREME

Travels
Travel Distance X-axis
Up to 12,000 mm (472.4 in.)
Travel Distance Y-axis
600 mm (23.6 in.)
Travel Distance Z-axis
900 mm (35.4 in.)
Travel Distance B-axis (Optional)
±105°
Rapid Traverse X-axis
40 m/min. (1,575 in./min.)
Rapid Traverse Y-axis
40 m/min. (1,575 in./min.)
Rapid Traverse Z-axis
40 m/min. (1,575 in./min.)
Table
Table Size
650 x Up to 12,000 mm (25.6 x Up to 472.4 in.)
Max Load
2,000 kg/m² (409.6 lbs./ft².)
Spindle
Speed
12,000 rpm
Power
27/39 kW (36.2/52.3 Hp)
Torque
130/187 Nm (95.9/137.9 ft-lbs.)
Tooling
Shank
SK-40
Changer Capacity
40/60/80 (+120)
Max Diameter
⌀90/125 mm (3.5/4.9 in.)
Max Length
400 mm (15.7 in.)
Machine Size
Size
Varies by Configuration
