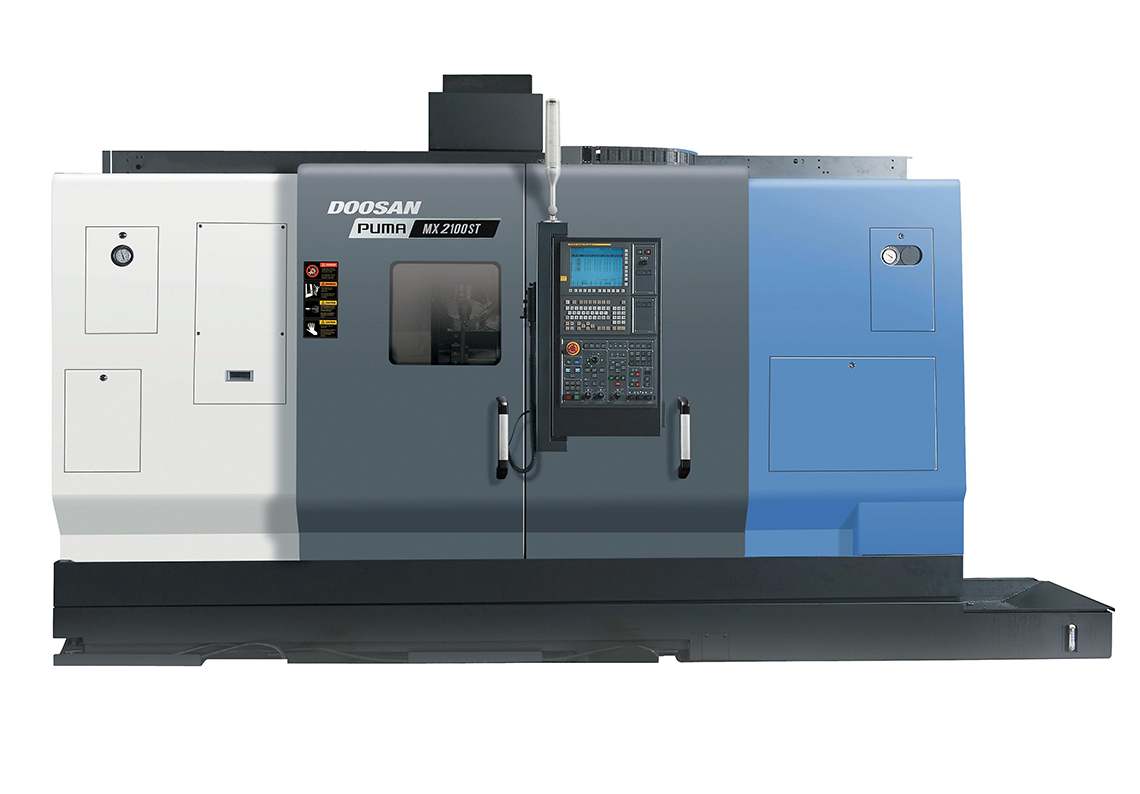

Doosan Machine Tools PUMA MX2100ST multi-tasking turn-mill center machining a lens casing. The MX2100ST features a sub-spindle and dual tool turrets.
You are here
PUMA MX2100ST
PUMA MX Series
The Puma MX series delivers maximum productivity and economy. The integration of milling and turning in one platform gives you great flexibility. Machine off-center with the Y-axis or mill angled surfaces with the B-axis for a wide range of machine applications. Complete multiple operations on this machine, from simple milling or turning to complex multi-axis simultaneous machining.
PUMA MX2100ST
Travels
Travel Distance X1-axis
|
565 mm (22.2 in.)
|
Travel Distance Z1-axis
|
1,050 mm (41.3 in.)
|
Travel Distance X2-axis
|
187 mm (7.4 in.)
|
Travel Distance Z2-axis
|
1,050 mm (41.3 in.)
|
Travel Distance Y-axis
|
170±85 mm (6.7±3.4 in.)
|
Travel Distance B-axis
|
240°±120°
|
Rapid Traverse X1-axis
|
36 m/min (1417 in/min)
|
Rapid Traverse Z1-axis
|
36 m/min (1417 in/min)
|
Rapid Traverse Y-axis
|
26 m/min (1024 in/min)
|
Capacity
Max Turning Diameter (Main Spindle)
|
⌀540 mm (21.3 in.)
|
Max Turning Length
|
1020 mm (40.2 in.)
|
Through Hole Diameter (Left Spindle)
|
⌀68 mm (2.7 in.)
|
Through Hole Diameter (Right Spindle)
|
⌀65 mm (2.6 in.)
|
Spindle (Turning)
Chuck Size
|
8 in.
|
Speed
|
5,000 rpm
|
Power
|
22 kW (30 Hp)
|
Torque
|
318 Nm (234 ft-lbs)
|
Spindle (Milling)
Speed
|
12,000 rpm
|
Power
|
18.5 kW (25 Hp)
|
Torque
|
81 Nm (60 ft-lbs)
|
Tooling
Changer Capacity
|
40
|
Max Tool Diameter
|
⌀90/120 mm (3.5/4.7 in.)
|
Max Tool Length
|
300 mm (11.8 in.)
|
Change Time
|
1.8 Seconds
|
Tooling (Lower Turret)
Shank
|
BMT-55
|
Stations
|
12
|
Boring Bar Diameter
|
⌀40 mm (1.5 in.)
|
Rotary Tool Speed
|
5,000 rpm
|
Rotary Tool Power
|
5.5 kW (7.5 Hp)
|
Rotary Tool Torque
|
47 Nm (34.7 ft-lbs)
|
Machine Size & Weight
Length
|
4,850 mm (191 in.)
|
Height
|
2,805 mm (110.5 in.)
|
Width
|
2,525 mm (99.5 in.)
|
Weight
|
12,000 kg (26,455 lbs)
|
