PUMA MX1600ST

PUMA MX Series

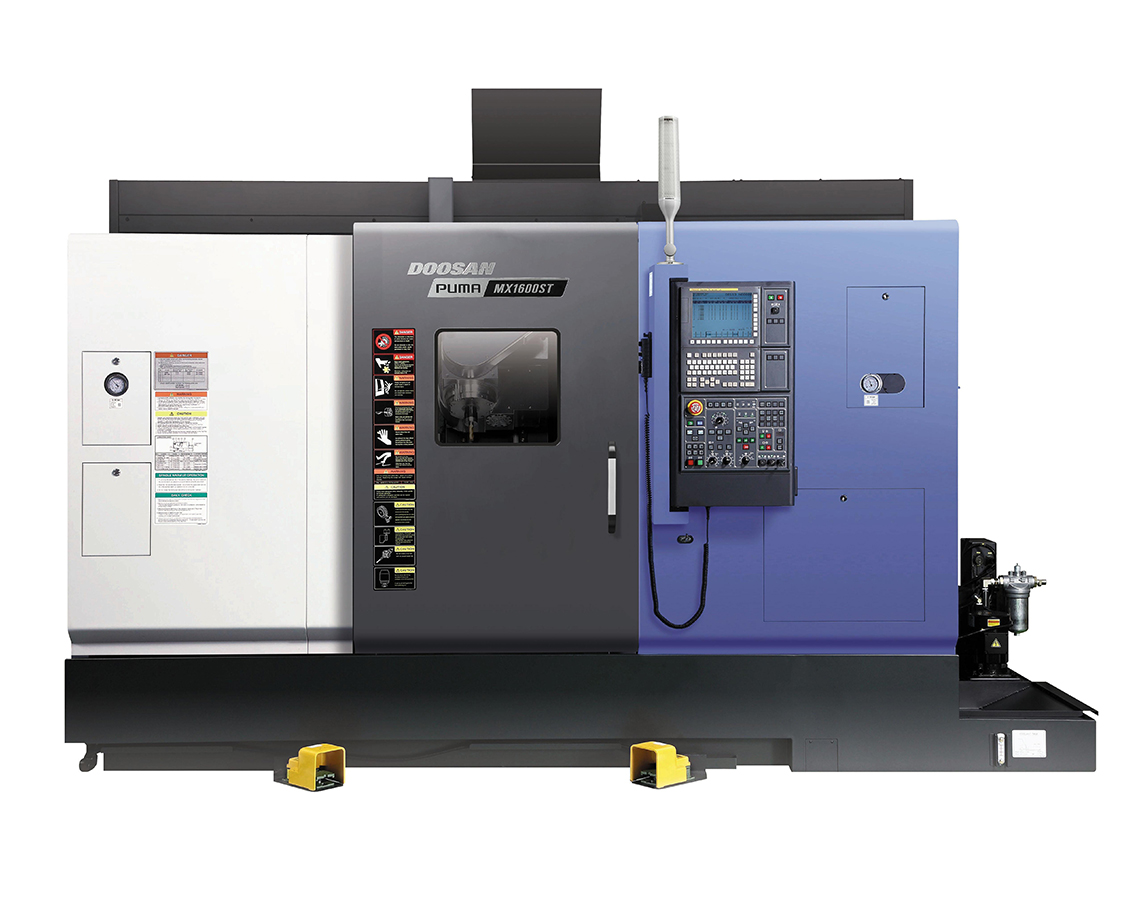

The Puma MX series delivers maximum productivity and economy. The integration of milling and turning in one platform gives you great flexibility. Machine off-center with the Y-axis or mill angled surfaces with the B-axis for a wide range of machine applications. Complete multiple operations on this machine, from simple milling or turning to complex multi-axis simultaneous machining.

PUMA MX1600ST

Travels
Travel Distance X1-axis
450 mm (17.7 in)
Travel Distance Z1-axis
935 mm (36.8 in)
Travel Distance X2-axis
165 mm (6.5 in)
Travel Distance Z2-axis
925 mm (36.4 in)
Travel Distance Y-axis
170±85 mm (6.7±3.4 in)
Travel Distance B-axis
240°±120°
Rapid Traverse X1-axis
36 m/min (1417 in/min)
Rapid Traverse Z1-axis
36 m/min (1417 in/min)
Rapid Traverse Y-axis
26 m/min (1024 in/min)
Capacity
Max Turning Diameter (Main Spindle)
⌀330 mm (13 in)
Max Turning Length
900 mm (35.4 in)
Through Hole Diameter (Left Spindle)
⌀52 mm (2 in)
Through Hole Diameter (Right Spindle)
⌀50 mm (2 in)
Spindle (Turning)
Chuck Size
6-8 in
Speed
6000 rpm
Power
15 kW (20 Hp)
Torque
208 Nm (153 ft-lbs)
Spindle (Milling)
Speed
12000 rpm
Power
9 kW (12 Hp)
Torque
49 Nm (36 ft-lbs)
Tooling
Changer Capacity
40
Max Tool Diameter
⌀70/95 mm (2.8/3.7 in)
Max Tool Length
200 mm (7.9 in)
Change Time
2.1 Seconds
Tooling (Lower Turret)
Shank
BMT-45
Stations
16
Boring Bar Diameter
⌀32 mm (1.3 in)
Rotary Tool Speed
6000 rpm
Rotary Tool Power
5.5 kW (7.5 Hp)
Rotary Tool Torque
23.5 Nm (17.3 ft-lbs)
Machine Size
Length
3800 mm (150 in)
Height
2760 mm (109 in)
Width
2530 mm (100 in)
