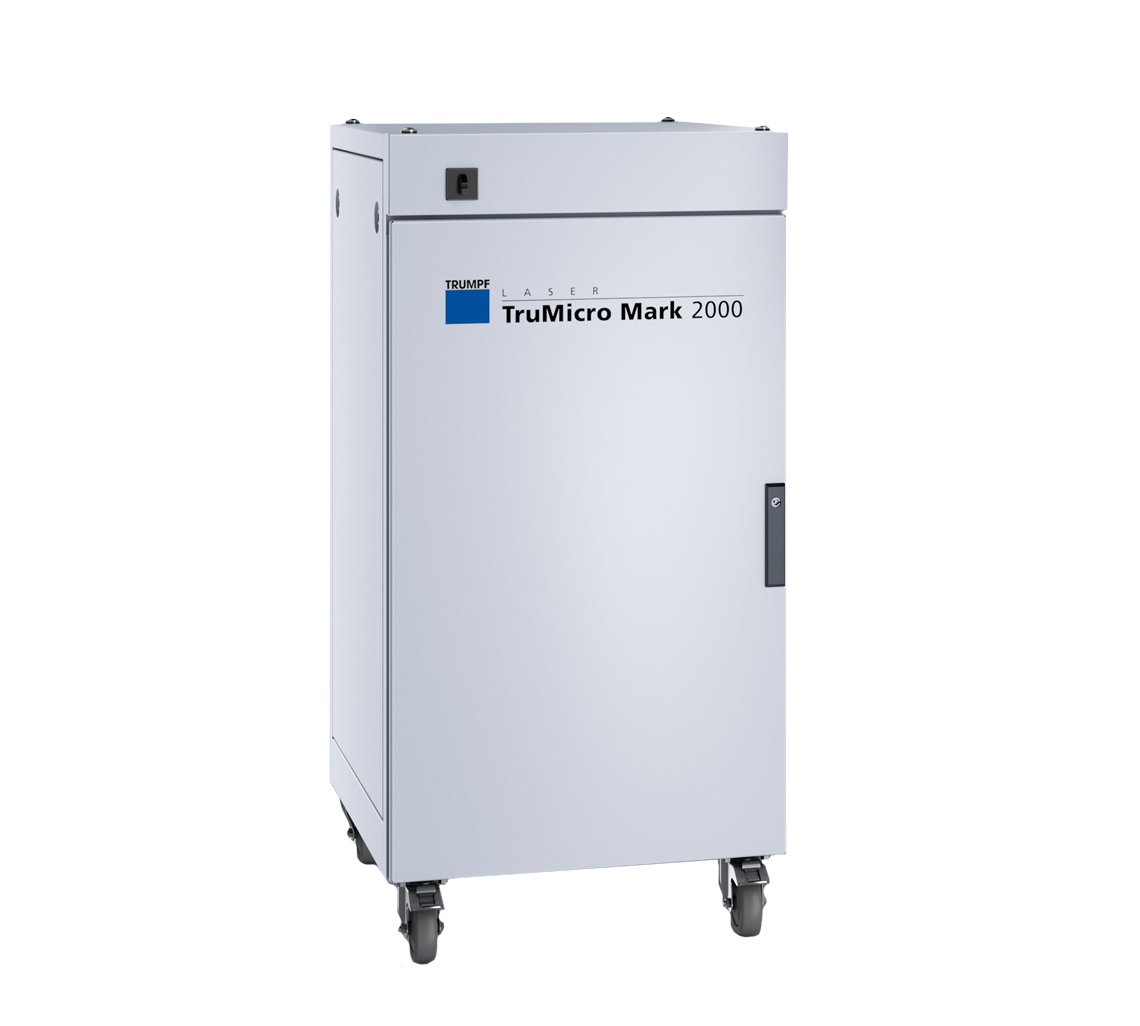

The TRUMPF TruMicro Mark 2000 Series features an all-around, turnkey laser marking solution with scanner, laser cooler, and software included. The Mark 2000 series is capable of delivering ultrashort pulses for no-heat, black marking, and has the ability to control each individual pulse for flexible laser marking in cold processing.
You are here
TruMicro Mark 2020
TruMicro Mark 2000 Series
TruMicro Mark 2020
Laser
Beam Quality
|
<1.3 M²
|
Wavelength
|
1,030 nm
|
Average Output Power
|
10 W
|
Pulse Duration
|
20 ps; <900 fs; <400 fs
|
Max Pulse Energy
|
10 µJ (Opt: 20/50 µJ)
|
Max Repetition Rate
|
1,000 kHz (Opt: 200/2,000 kHz)
|
Laser Head Size
Width
|
838.5 mm (33 in.)
|
Height
|
375 mm (14.8 in.)
|
Depth
|
180 mm (7.1 in.)
|
Supply Cabinet Size
Width
|
600 mm (23.6 in.)
|
Height
|
1,225 mm (48.2 in.)
|
Depth
|
825 mm (32.5 in.)
|
Work Station Size
Width
|
860 mm (33.8 in.)
|
Height
|
2,000 mm (78.7 in.)
|
Depth
|
1,312 mm (51.6 in.)
|
