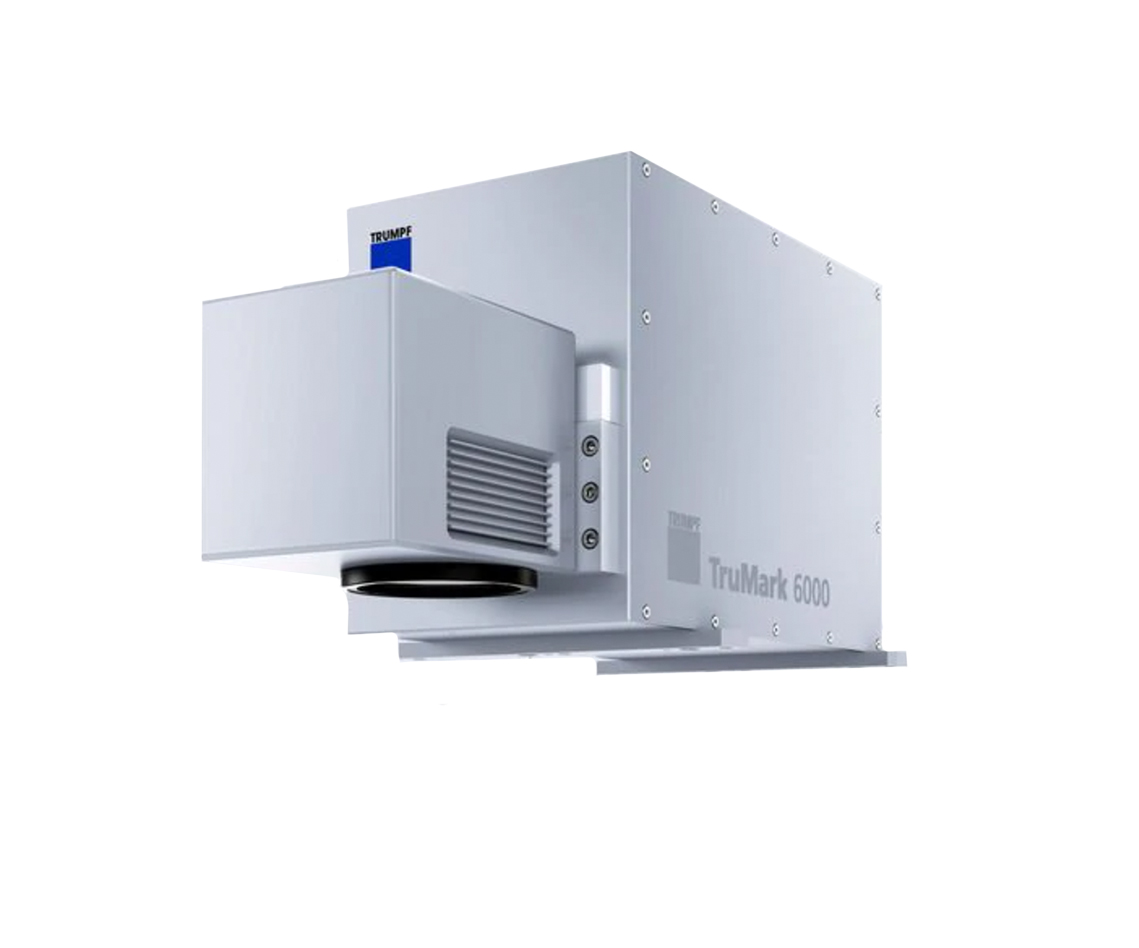

TruMark 6030

TruMark Series 6030

With more speed, precision, and flexibility, the TRUMPF TruMark 6030 marking laser delivers outstanding performance for engraving, ablation, marking, and annealing applications. The TruMark 6030 features high power, brilliant beam quality, and is capable of marking 3D objects with its modern image processing technology.

TruMark 6030

Laser
Beam Quality
<1.3 M²
Wavelength
1,030 nm
Pulse Repetition Frequency
40 - 200 kHz
Min. Focal Diameter
50 μm (1,968.5 μin)
Max Marking Volume
180 x 180 x 100 mm (7.1 x 7.1 x 3.9 in.)
Max Text Field Size
180 x 180 mm (7.1 x 7.1 in.)
Laser Head Size
Width
156 mm (6.1 in.)
Height
214 mm (8.4 in.)
Depth
435 mm (17.1 in.)
Supply Unit Size
Width
446 mm (17.6 in.)
Height
222 mm (8.7 in.)
Depth
495 mm (19.5 in.)
Installation
Ambient Temperature
15-40°C (59-104°F)
