TruMark 3130

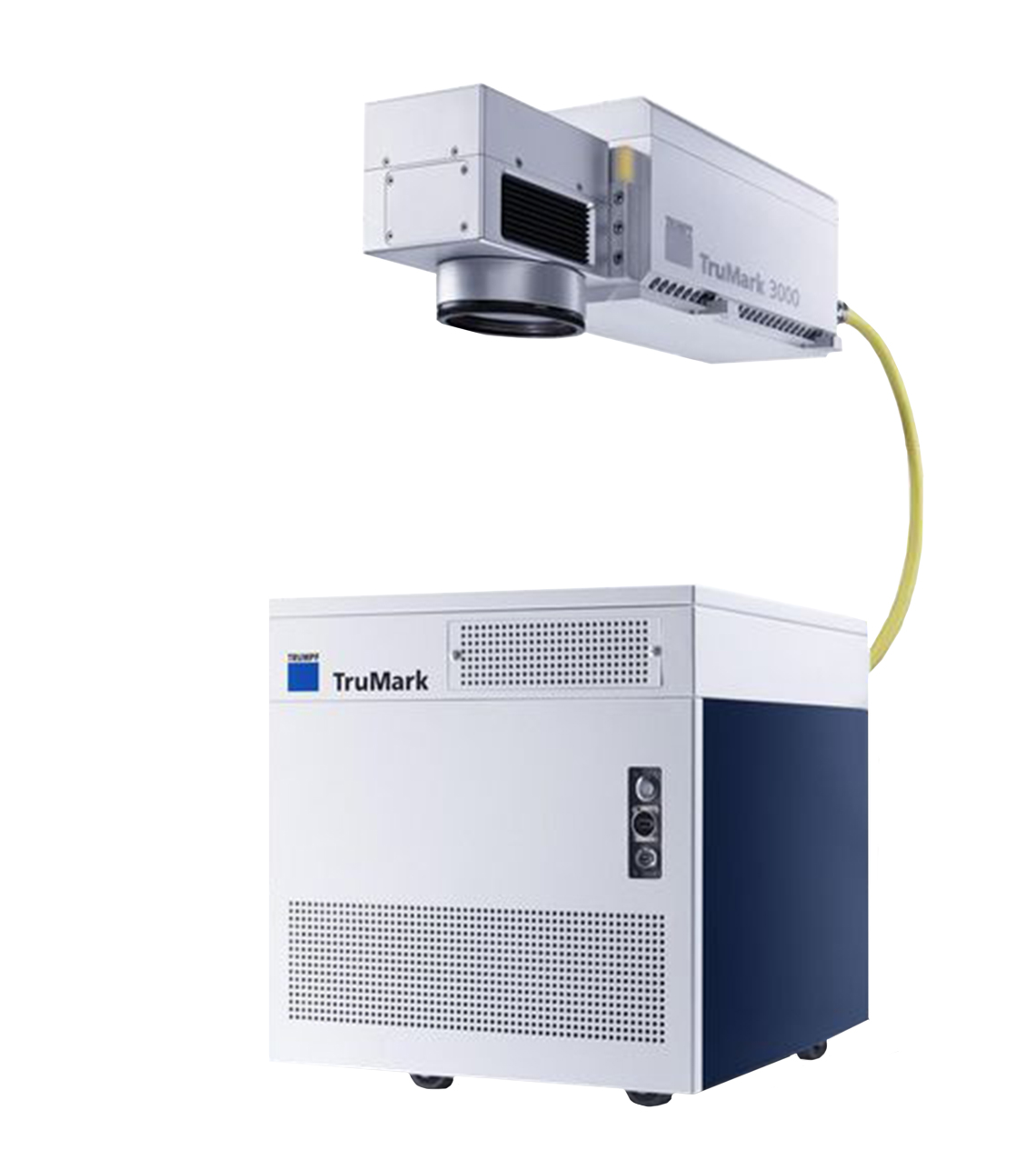

TruMark Series 3000

The TruMark Series 3000 marking laser from TRUMPF offers everything you need for versatile integration. The Series 3000 has options for all standard wavelengths including infrared, green, and ultraviolet lasers. With its modular design allowing peak pulse powers up to 100 kW, high pulse-to-pulse stability, software-controlled focal position adjustment, pilot laser, and mechanical beam trap, the Series 3000 is capable of covering a wide range of applications and materials.

TruMark 3130

Laser
Beam Quality
<1.2 M²
Wavelength
1,064 nm
Pulse Repetition Frequency
cw, 1 -100 kHz
Min. Focal Diameter
28 μm (1,102.4 μin.)
Max Internal Focal Position Control
±60 mm (2.4 in.)
Max Marking Field Size
290 x 290 mm (11.4 x 11.4 in.)
Laser Head Size
Width
138 mm (5.4 in.)
Height
138 mm (5.4 in.)
Depth
380 mm (15 in.)
Supply Unit Size
Width
445 mm (17.5 in.)
Height
465 mm (18.3 in.)
Depth
420 mm (16.5 in.)
Installation
Protection Type
IP54
Ambient Temperature
15-40°C (59-104°F)
