The new ONA IRIS Series Die-Sinking EDM features technology built for improved safety, connectivity, productivity, process simulation, operation management, and controls. The Compact IRIS Series is built for maximum precision and long-lasting reliability. Each model features 100% digital generator that is completely configurable and programmable, up to 500% reduced electrode wear with erosion optimization and monitoring, a 30% more powerful generator reaching up to 400 A, and 8 simultaneous interpolating axes control. The Compact IRIS Series has a travel capacity range of 15.7” x 11.8” x 11.8” to 39.3” x 29.5” x 25.6”, ideal for a wide range of small to medium size parts.
You are here

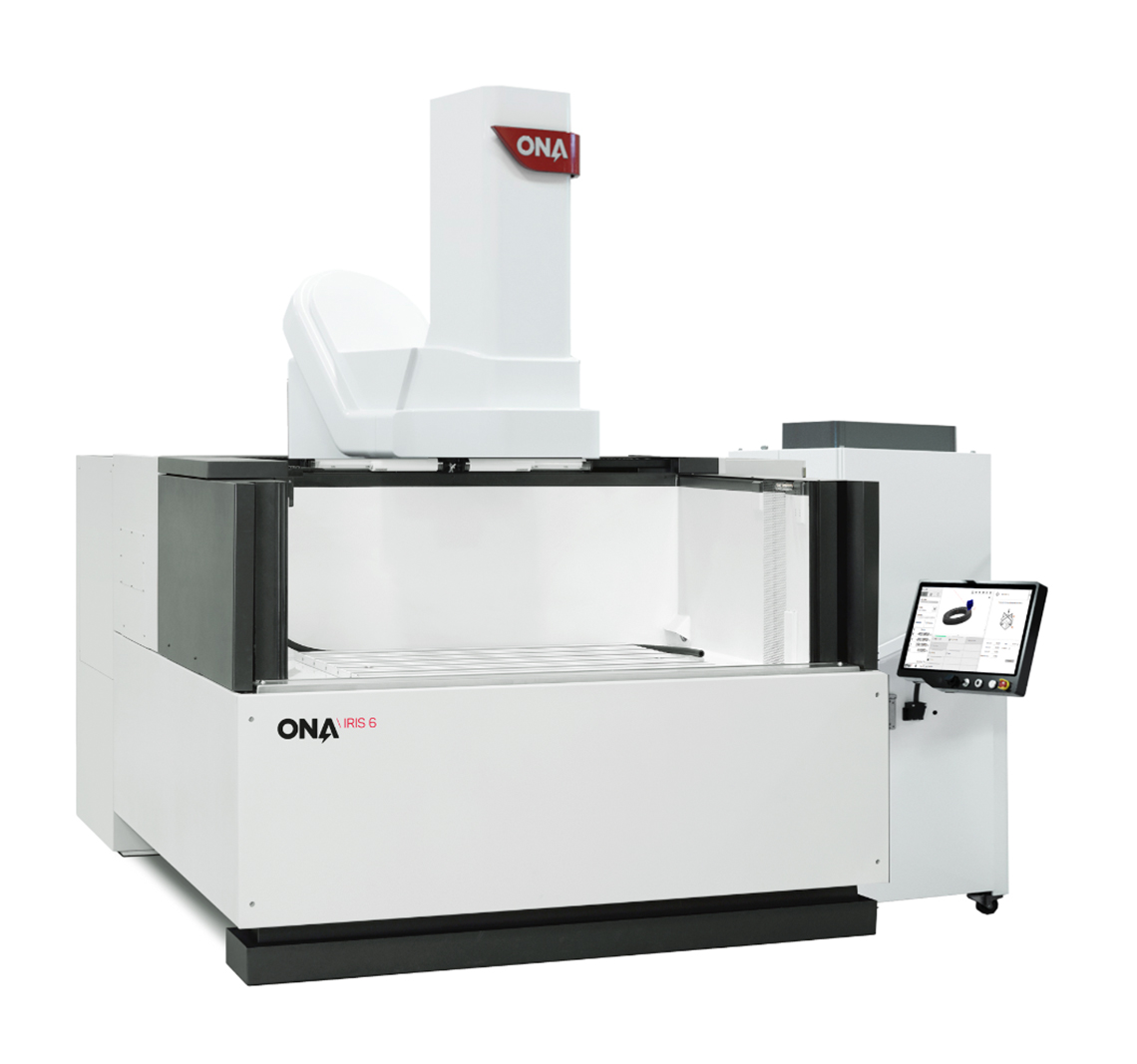

IRIS6A0M
Compact IRIS Series
IRIS6A0M
Travels
Travel Distance X-axis
|
1,000 mm (39.4 in.)
|
Travel Distance Y-axis
|
750 mm (29.5 in.)
|
Electrode Holder Travel
|
650 mm (25.6 in.)
|
Table to Head Distance
|
1,000 mm (39.4 in.)
|
Worktank
Length
|
1,800 mm (70.9 in.)
|
Width
|
1,300 mm (51.2 in.)
|
Height
|
700 mm (27.5 in.)
|
Table Size
|
1,200 x 1,000 mm (47.2 x 39.4 in.)
|
Table Load
|
5,000 kg (11,023 lbs.)
|
Table Type
|
Fixed
|
Electrode
Max Weight
|
300 kg (661 lbs.)
|
Max Roughness
|
0.08 – 0.1 µm Ra (3.1 – 3.9 µin Ra)
|
Generator Intensity
|
100/200/400 A
|
Machine Size & Weight
Length
|
3,000 mm (118.1 in.)
|
Height
|
3,460 mm (136.2 in.)
|
Width
|
4,535 mm (178.5 in.)
|
Weight
|
8,400 kg (18,518 lbs.)
|
