The new ONA IRIS Series Die-Sinking EDM features technology built for improved safety, connectivity, productivity, process simulation, operation management, and controls. The Compact IRIS Series is built for maximum precision and long-lasting reliability. Each model features 100% digital generator that is completely configurable and programmable, up to 500% reduced electrode wear with erosion optimization and monitoring, a 30% more powerful generator reaching up to 400 A, and 8 simultaneous interpolating axes control. The Compact IRIS Series has a travel capacity range of 15.7” x 11.8” x 11.8” to 39.3” x 29.5” x 25.6”, ideal for a wide range of small to medium size parts.
You are here

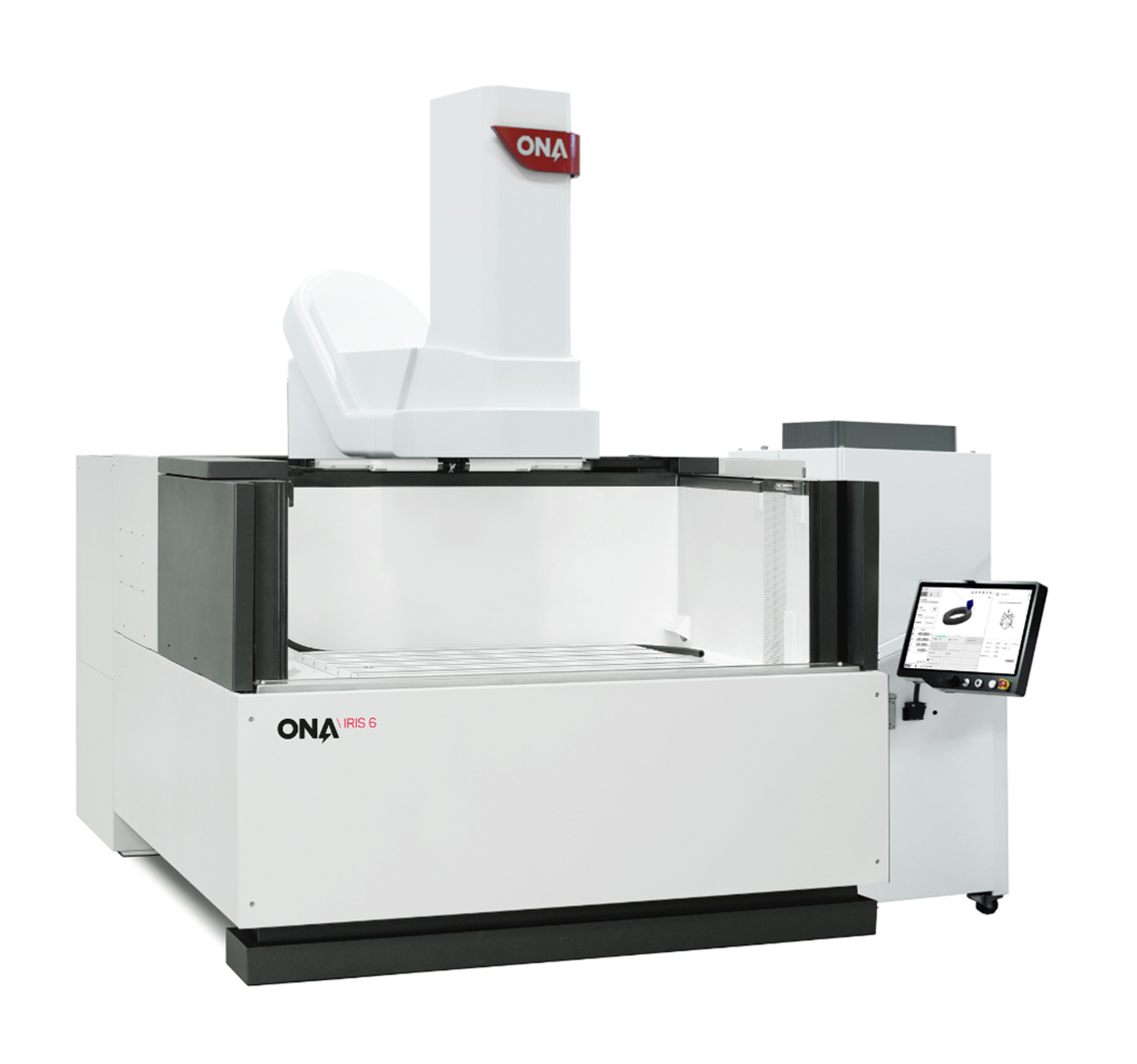

IRIS6
Compact IRIS Series
IRIS6
Travels
Travel Distance X-axis
|
1,000 mm (39.4 in.)
|
Travel Distance Y-axis
|
600 mm (23.6 in.)
|
Electrode Holder Travel
|
500 mm (19.7 in.)
|
Table to Head Distance
|
800 mm (31.5 in.)
|
Worktank
Length
|
1,700 mm (66.9 in.)
|
Width
|
1,000 mm (39.4 in.)
|
Height
|
600 mm (23.6 in.)
|
Table Size
|
1,200 x 800 mm (47.2 x 31.5 in.)
|
Table Load
|
4,000 kg (8,818 lbs.)
|
Table Type
|
Drop Door
|
Electrode
Max Weight
|
300 kg (661 lbs.)
|
Max Roughness
|
0.08 – 0.1 µm Ra (3.1 – 3.9 µin Ra)
|
Generator Intensity
|
100/200/400 A
|
Machine Size & Weight
Length
|
3,300 mm (129.9 in.)
|
Height
|
2,930 mm (115.3 in.)
|
Width
|
3,370 mm (132.7 in.)
|
Weight
|
7,400 kg (16,314 lbs.)
|
