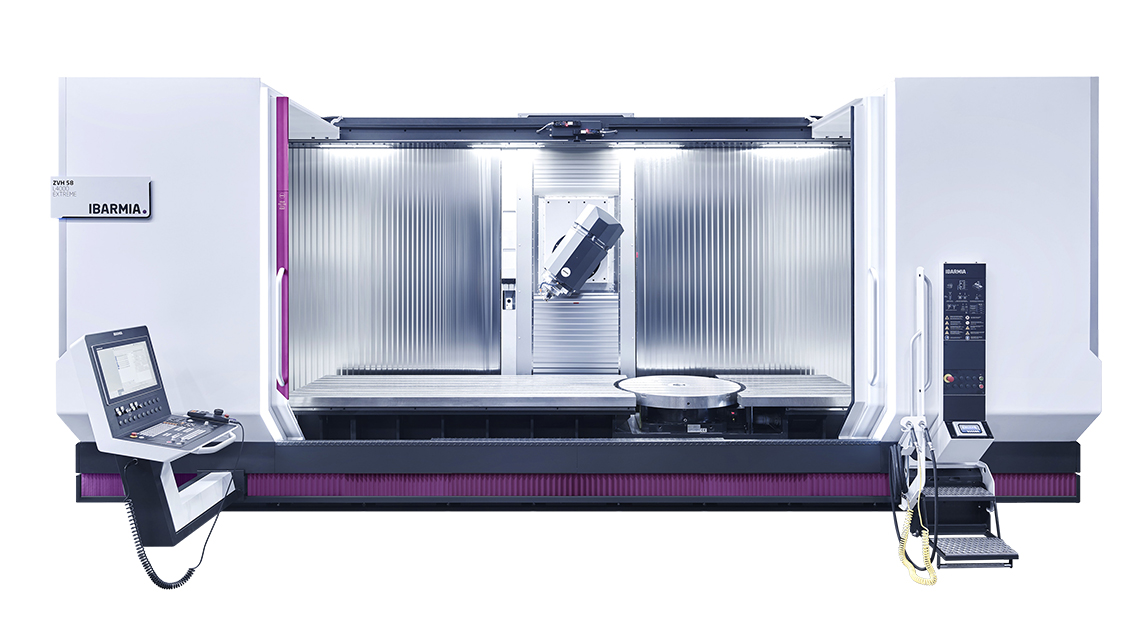

Designed and built specifically to meet the customer’s needs, the ZV EXTREME vertical machining center utilizes fully enclosed work area with high RPM machining capabilities. The ZV EXTREME features 12,000 and 24,000 RPM spindle models with dynamic positioning and high acceleration X, Y, and Z axis movement. The machining area is completely encapsulated to maximize comfort and safety with interior vertical protection up to the roof of the X-axis for optimized chip and coolant evacuation. The automatic tool changer is housed and executed outside of the machining area free from volatile chips.
You are here
ZV 48 EXTREME
ZV EXTREME
ZV 48 EXTREME
Travels
Travel Distance X-axis
|
Up to 12,000 mm (472.4 in.)
|
Travel Distance Y-axis
|
1,000 mm (39.4 in.)
|
Travel Distance Z-axis
|
800 mm (31.5 in.)
|
Travel Distance B-axis (Optional)
|
±105°
|
Rapid Traverse X-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Y-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Z-axis
|
40 m/min. (1,575 in./min.)
|
Table
Table Size
|
1,050 x Up to 12,000 mm (41.3 x Up to 472.4 in.)
|
Max Load
|
2,000 kg/m² (409.6 lbs./ft².)
|
Spindle
Speed
|
12,000 rpm
|
Power
|
27/39 kW (36.2/52.3 Hp)
|
Torque
|
130/187 Nm (95.9/137.9 ft-lbs.)
|
Tooling
Shank
|
SK-40
|
Changer Capacity
|
40/60/80 (+120)
|
Max Diameter (SK-40)
|
⌀90/125 mm (3.5/4.9 in.)
|
Max Length (SK-40)
|
400 mm (15.7 in.)
|
Machine Size
Size
|
Varies by Configuration
|
