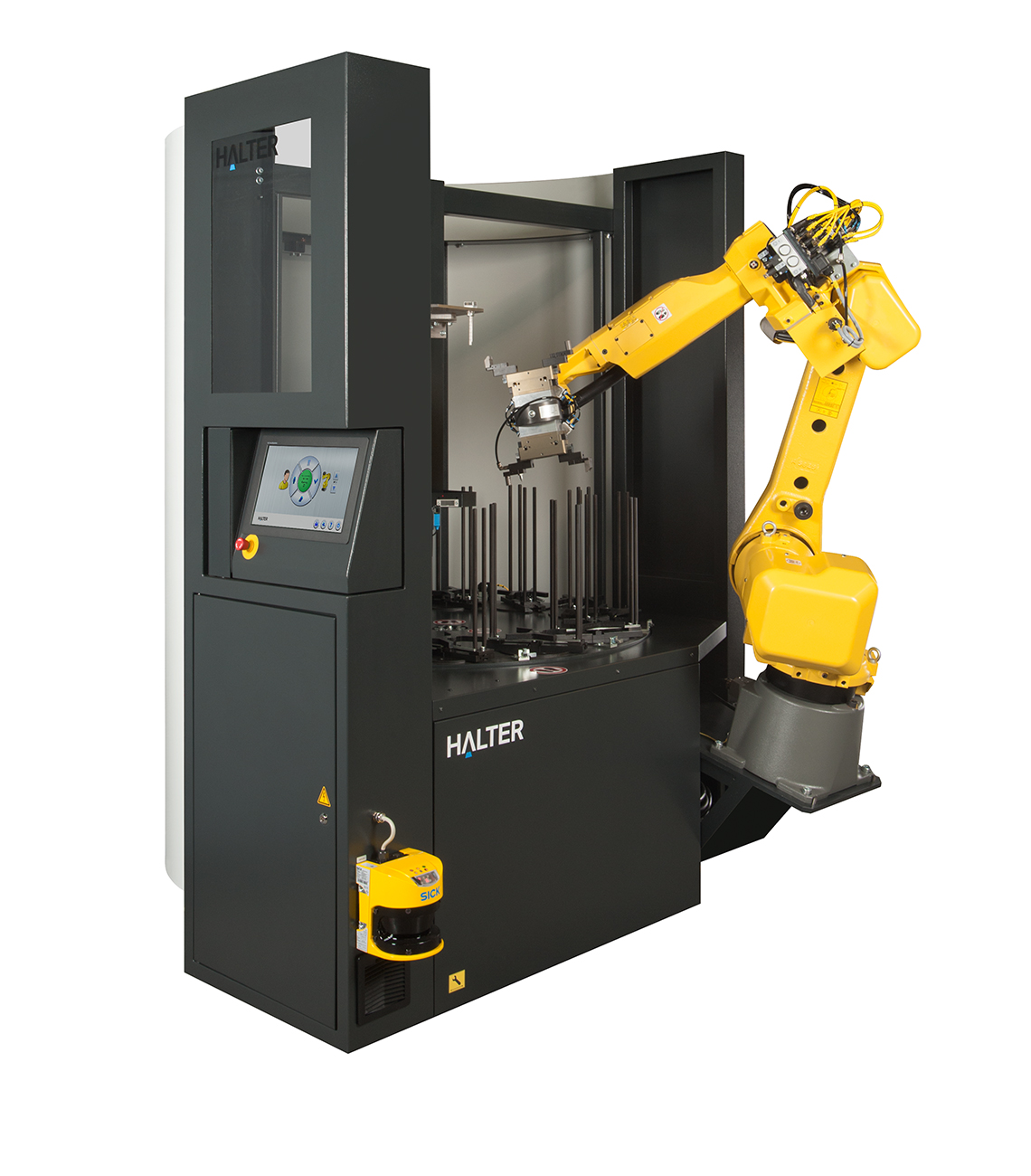

The HALTER LoadAssistant® MILLSTACKER system is designed for automated machine tending on milling type machining centers. The stackable storage system allows for higher capacity of parts with shorter heights in a compact space. The turn-around station also allows for two-sided machining.
You are here
Millstacker Compact 12
Millstacker
Millstacker Compact 12
Capacity
Max Workpiece Size (Square)
|
125 x 125 mm (4.9 x 4.9 in.)
|
Max Workpiece Size (Rectangle)
|
50 x 200 mm (2 x 7.9 in.)
|
Max Workpiece Height
|
175 mm (6.9 in.)
|
Max Part Weight
|
12 kg (26.4 lbs)
|
Part Storage
Max Part Capacity
|
22/33/44/55/77/187/385
|
Max Storage Load
|
775 kg (1,708.6 lbs)
|
Stacking Stations
|
12
|
Dimensions
Length
|
1,250 mm (49.2 in)
|
Height
|
2,220 mm (87.4 in.)
|
Width
|
1,250 mm (49.2 in.)
|
