PUMA TL2500LM

PUMA TL Series

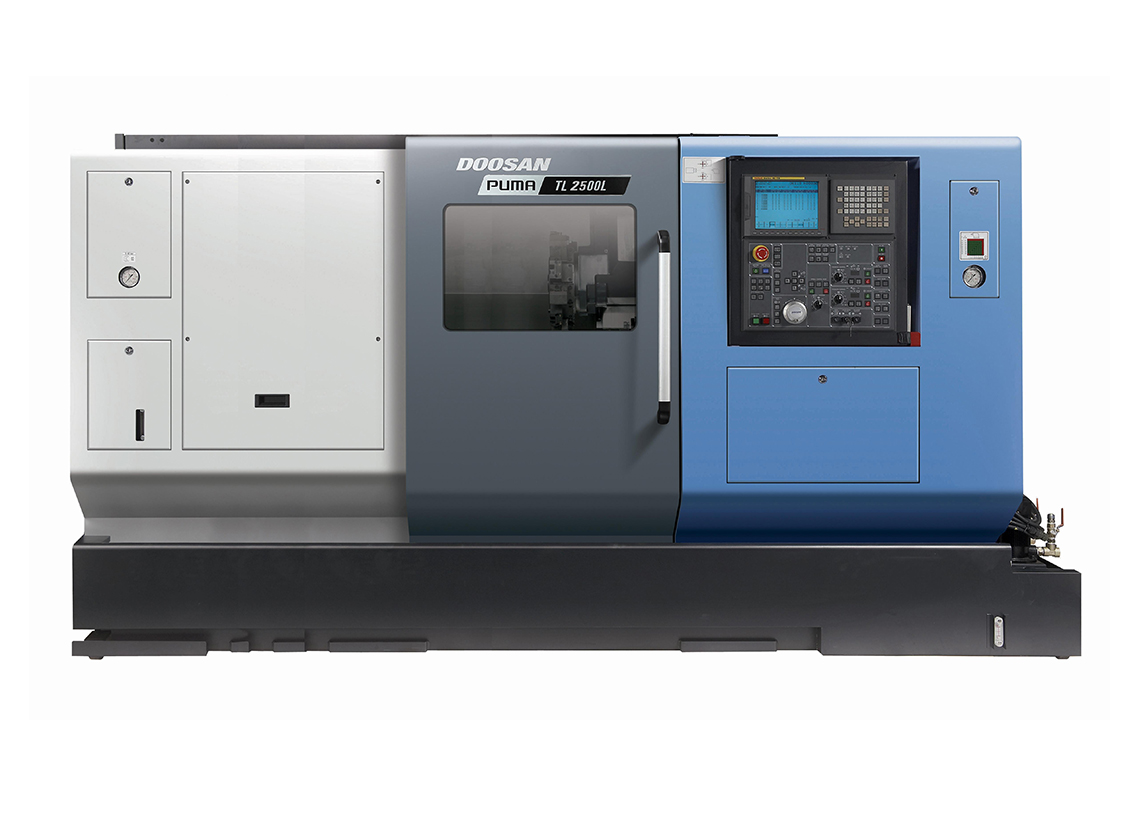

The highly productive 4-axis linear guide PUMA TL series combines multi-axis functionality with simultaneous control of both turrets. From precise finishes to high-powered metal removal rates, the twin turret lathe provides manufacturers with new process options without adding set-ups. Rapid traverse rates, a solid machine construction, and additional milling options makes the TL series the perfect addition for any manufacturer who needs fast, flexible, multi-axis production.

PUMA TL2500LM

Travels
Travel Distance X1-axis
250 mm (9.8 in)
Travel Distance Z1-axis
1050 mm (41.3 in)
Travel Distance X2-axis
150 mm (5.9 in)
Travel Distance Z2-axis
630 mm (24.8 in)
Rapid Traverse X-axis
20 m/min (787 in/min)
Rapid Traverse Z-axis
24 m/min (945 in/min)
Rapid Traverse C-axis
600 rpm
Capacity
Max Turning Diameter (Upper Turret)
⌀350 mm (14.6 in)
Max Turning Diameter (Lower Turret)
⌀240 mm (9.4 in)
Max Turning Length
1000 mm (39.4 in)
Through Hole Diameter
⌀77 mm (3 in)
Spindle
Chuck Size
10 in
Speed
4000 rpm
Power
26 kW (35 Hp)
Torque
433 Nm (319 ft-lbs)
Tooling
Shank (Upper Turret)
BMT-55
Shank (Lower Turret)
BMT-KEY
Turret Stations (Upper)
12
Turret Stations (Lower)
8
Boring Bar Diameter
⌀40 mm (1.5 in)
Rotary Tool Speed
5000 rpm
Rotary Tool Power
5.5 kW (7.5 Hp)
Rotary Tool Torque
47 Nm (34.7 ft-lbs)
Machine Size
Length
3900 mm (154 in)
Height
1930 mm (76 in)
Width
2144 mm (85 in)
