BM 2035U

BM Series

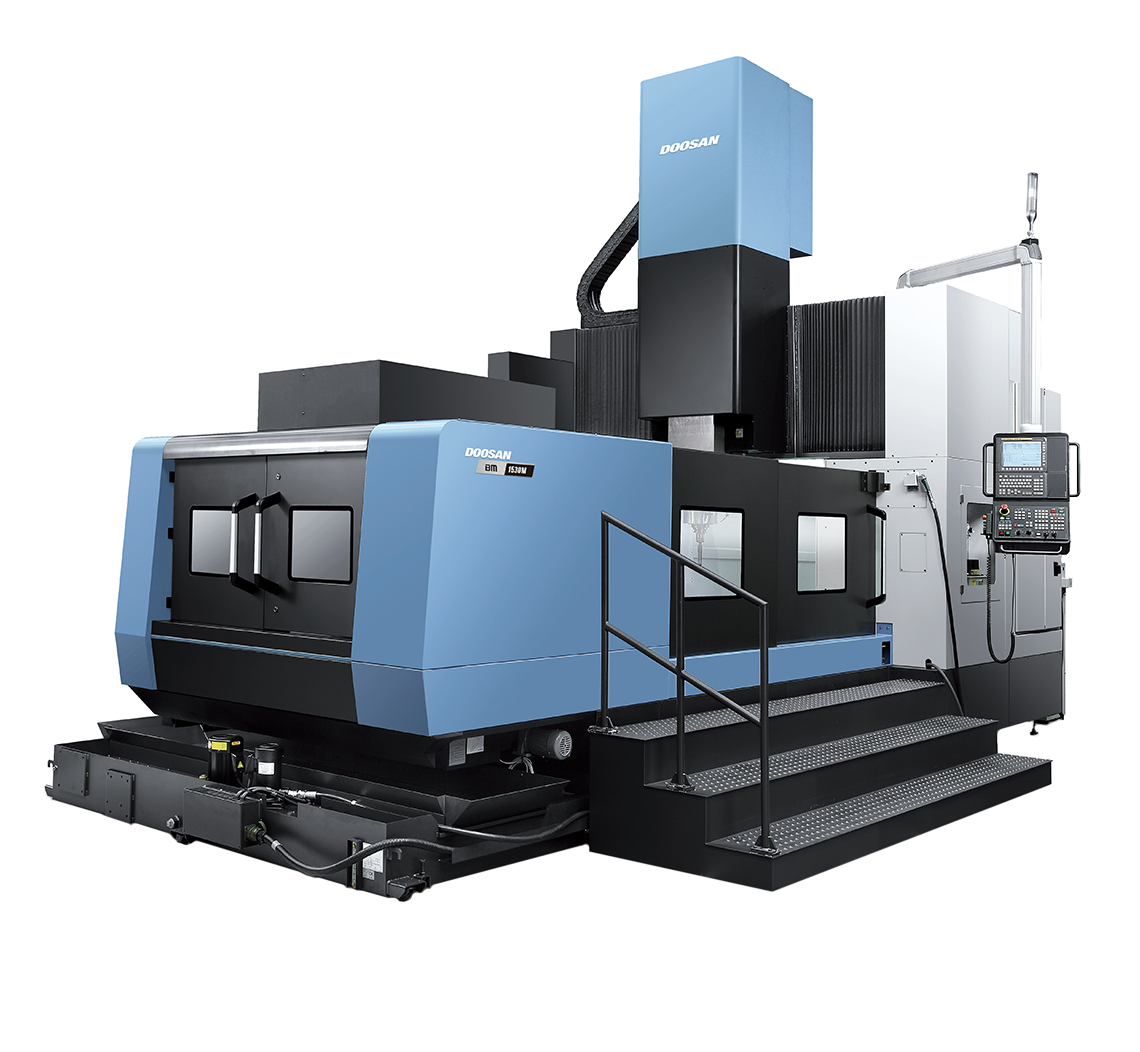

The large bridge type BM series utilizes an exceptionally rigid structure and a high torque spindle to ensure remarkable productivity. A heavy duty spindle assembly and a face/taper contact spindle nose reduce vibration and improve workpiece surface finish during high speed operations, while LM roller guideways provide optimal stability.

BM 2035U

Travels
Travel Distance X-axis
3500 mm (137.8 in)
Travel Distance Y-axis
2050 mm (80.7 in)
Travel Distance Z-axis
700 mm (27.5 in)
Travel Distance B-axis
±110°
Travel Distance C-axis
±220°
Rapid Traverse X-axis
16 m/min (630 in/min)
Rapid Traverse Y-axis
16 m/min (630 in/min)
Rapid Traverse Z-axis
16 m/min (630 in/min)
Rapid Traverse B-axis
30 rpm
Rapid Traverse C-axis
30 rpm
Table
Table Size
3500 x 1850 mm (137.8 x 72.8 in)
Max Load
10000 kg (22046 lbs)
Spindle
Speed
18000 rpm
Power
70 kW (94 Hp)
Torque
111 Nm (82 ft-lbs)
Spindle to Table Distance
50-750 mm (2-29.5 in)
Tooling
Shank
HSK-A63
Changer Capacity
60
Max Diameter
⌀80/150 mm (3.2/5.9 in)
Max Length
300 mm (11.8 in)
Machine Size
Length
9540 mm (375 in)
Height
5250 mm (206.7 in)
Width
4960 mm (195 in)
