TruMark 5040

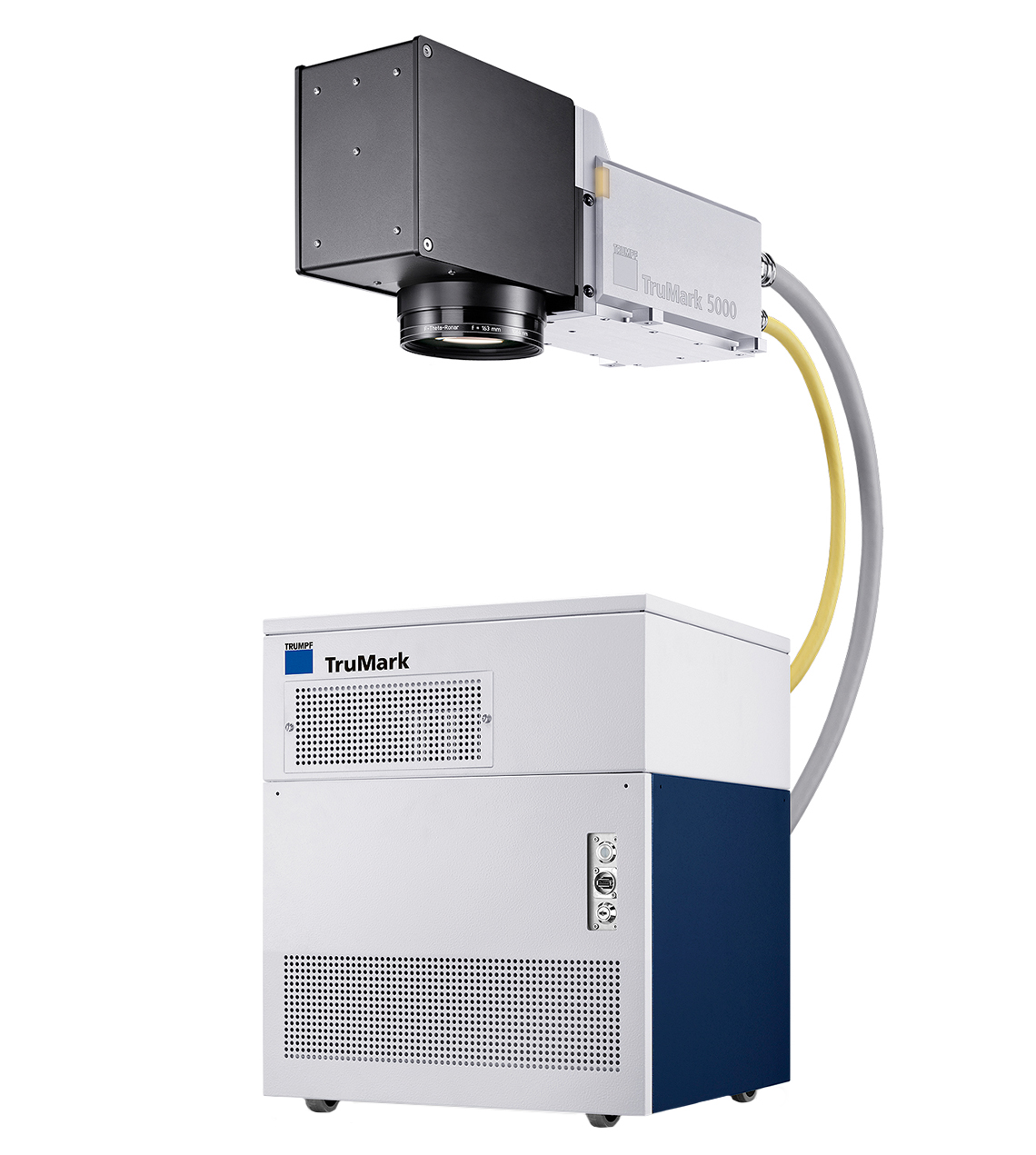

TruMark Series 5000

The fiber based TRUMPF TruMark Series 5000 marking laser delivers an optimized combination of high power, high pulse frequency, and adjustable pulse duration features. Capable of handling deep engraving, annealing, and special micro-structuring applications, the Series 5000 is the ideal choice for high-power and short cycle time requirements.

TruMark 5040

Laser
Beam Quality
<3.7 M²
Wavelength
1,062±3 nm
Pulse Repetition Frequency
cw, cwm, 1 -1,000 kHz
Min. Focal Diameter
70 μm (2,755.9 μin.)
Max Internal Focal Position Control
±60 mm (2.4 in.)
Max Marking Field Size
290 x 290 mm (11.4 x 11.4 in.)
Laser Head Size
Width
414 mm (16.3 in.)
Height
131 mm (5.2 in.)
Depth
157 mm (6.2 in.)
Supply Unit Size
Width
445 mm (17.5 in.)
Height
550 mm (21.6 in.)
Depth
420 mm (16.5 in.)
Installation
Protection Type
IP54
Ambient Temperature
15-40°C (59-104°F)
