Built for maximum precision and reliability, the ONA Compact AV Series features highly intuitive controls and productivity enhancing technology to help you MAKE MORE. The AV Series comes with a 23” touch screen interface delivering real-time information, work time optimization, 3D workpiece display, and has an incredible 450 mm²/min high-speed cutting to save up to 30% in cutting time.
You are here

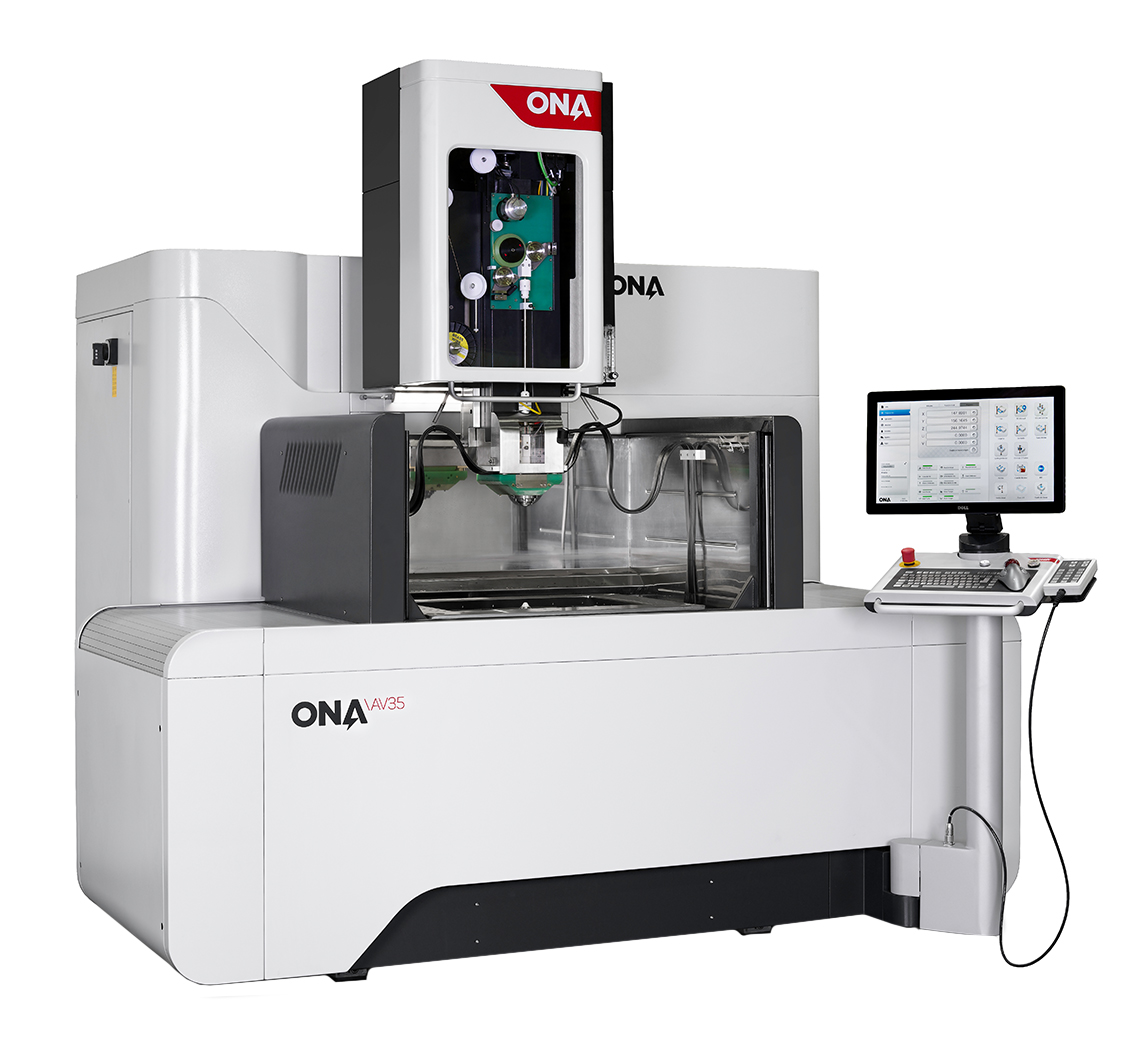

AV35
Compact AV Series
AV35
Travels
Travel Distance X-axis
|
600 mm (23.6 in.)
|
Travel Distance Y-axis
|
400 mm (15.7 in.)
|
Travel Distance Z-axis
|
400 mm (15.7 in.)
|
Travel Distance U-V Axis
|
120 x 120 mm (4.7 x 4.7 in.)
|
Max Conical Cut Angle
|
±30° / 87 mm (3.4 in.)
|
Worktank
Length
|
1,060 mm (41.7 in.)
|
Width
|
750 mm (29.5 in.)
|
Height
|
400 mm (15.7 in.)
|
Wire
Diameter Range
|
0.07 – 0.33 mm (0.003 – 0.013 in.)
|
Max Cutting Speed
|
450 mm²/min (17.7 in²/min)
|
Min Roughness
|
0.1 µm Ra (3.9 µin Ra)
|
Machine Size & Weight
Length
|
2,740 mm (107.9 in.)
|
Height
|
2,560 mm (100.8 in.)
|
Width
|
3,350 mm (131.9 in.)
|
Weight
|
4,000 kg (8,818.5 lbs.)
|
