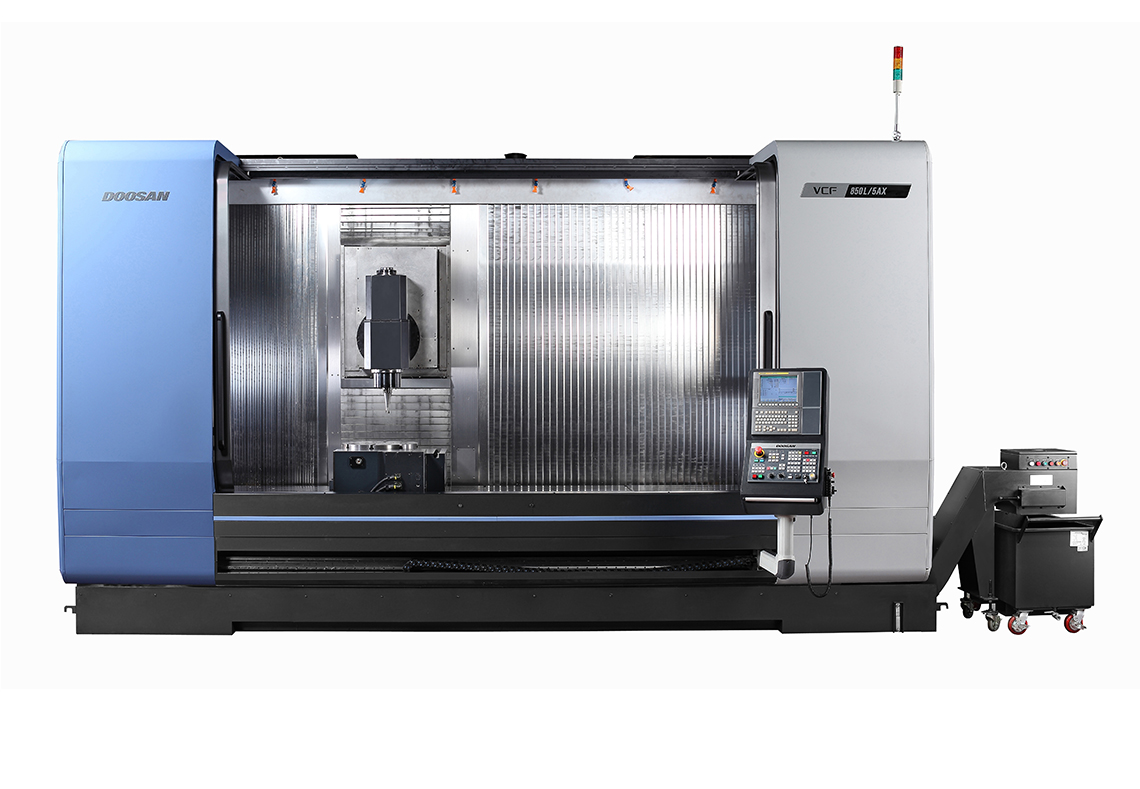

VCF 850L

VCF Series

The VCF series is the perfect multi-purpose vertical machining center for manufacturers who have a diverse range of applications. These moving-column machines offer an X-axis stroke of 3 meters and additional options including a rotary table, center partition, a pick-up magazine, and more.

VCF 850L

Travels
Travel Distance X-axis
3000 mm (118.1 in)
Travel Distance Y-axis
850 mm (33.5 in)
Travel Distance Z-axis
800 mm (31.5 in)
Rapid Traverse X-axis
40 m/min (1575 in/min)
Rapid Traverse Y-axis
40 m/min (1575 in/min)
Rapid Traverse Z-axis
40 m/min (1575 in/min)
Table
Table Size
3500 x 870 mm (137.8 x 34.2 in)
Max Load
3500 kg (7716 lbs)
Spindle
Speed
12000 rpm
Power
22 kW (30 Hp)
Torque
147.3 Nm (108.7 ft-lbs)
Tooling
Shank
BIG PLUS CAT 40
Changer Capacity
60
Max Diameter
76/130 mm (3/5.1 in)
Max Length
300 mm (11.8 in)
Machine Size & Weight
Length
5,440 mm (214.2 in.)
Height
3,205 mm (126.2 in.)
Width
3,795 mm (149.4 in.) + 790 mm (31.1 in.)
Weight
24,000 kg (53,000 lbs.)
