The NHM series from DN Solutions (formerly Doosan Machine Tools) includes heavy-duty horizontal machining centers which combine a very rigid structure, remarkable machining capacity and long term high accuracy to meet your production requirements. The optimally integrated structure of box guideways ensures higher rigidity. This is critical for heavy-duty cutting of difficult to machine materials. A variety of pallet sizes are available to produce workpieces of different shapes and sizes. Reliability and productivity are vastly improved by using servo-driven tool changers and pallet changers, which minimize idle time.
You are here

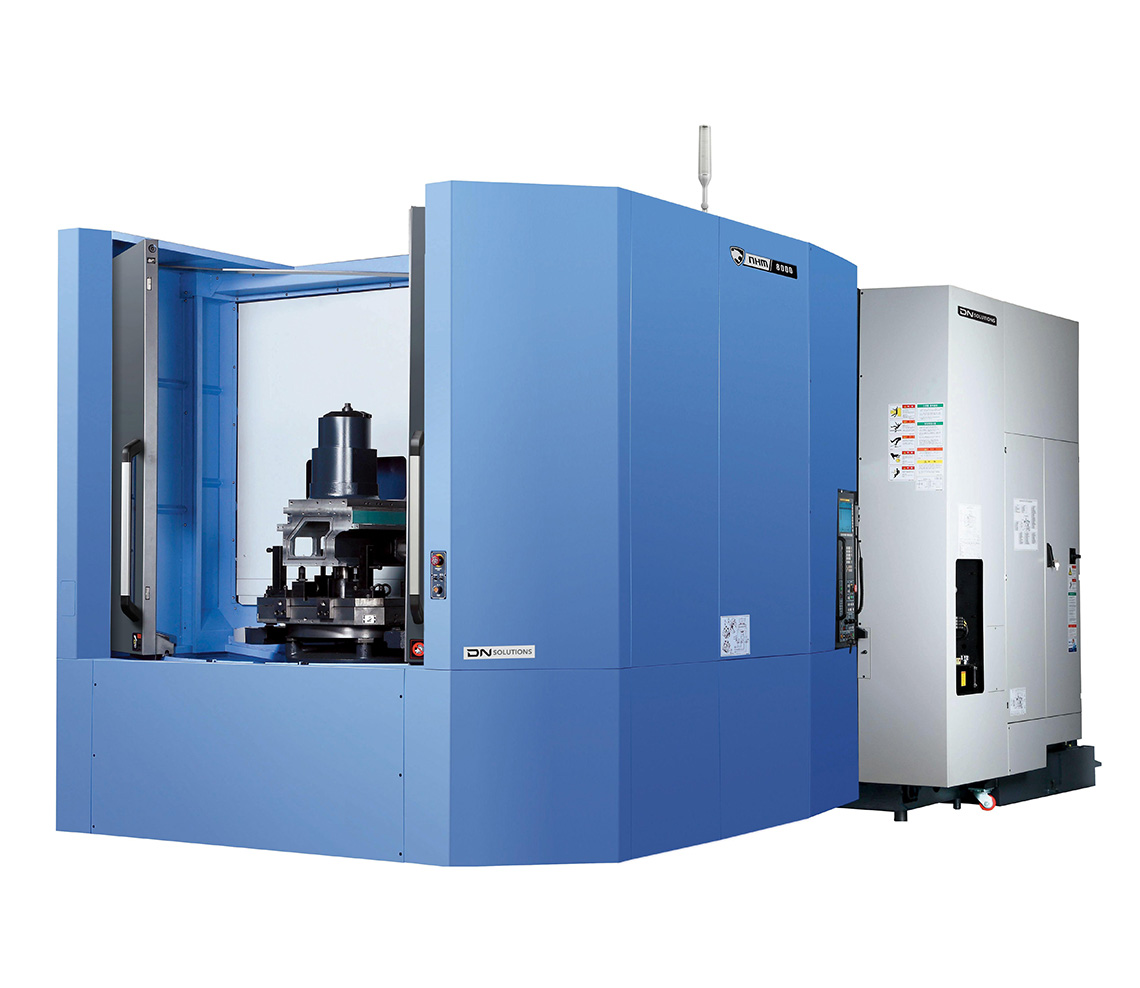

NHM 8000

NHM Series
NHM 8000
Travels
Travel Distance X-axis
|
1400 mm (55.1 in)
|
Travel Distance Y-axis
|
1050 mm (41.3 in)
|
Travel Distance Z-axis
|
1200 mm (47.2 in)
|
Rapid Traverse X-axis
|
24 m/min (945 in/min)
|
Rapid Traverse Y-axis
|
24 m/min (945 in/min)
|
Rapid Traverse Z-axis
|
24 m/min (945 in/min)
|
Table
Table Size
|
800 x 800 mm (31.5 x 31.5 in)
|
Max Part Size
|
⌀1450 x 1550 mm (57 x 61 in)
|
Max Load
|
2000 kg (4400 lbs)
|
Spindle
Speed
|
8000 rpm
|
Power
|
26 kW (35 Hp)
|
Torque
|
1072 Nm (791.1 ft-lbs)
|
Tooling
Shank
|
BIG PLUS CAT 50
|
Changer Capacity
|
90 (Opt. 60)
|
Change Time
|
2-3.5 Seconds
|
Max Diameter
|
⌀130/320 mm (5.1/12.6 in)
|
Max Length
|
630 mm (24.8 in)
|
Machine Size & Weight
Length
|
8,150 mm (320.9 in.)
|
Height
|
3,760 mm (148.1 in.)
|
Width
|
4,325 mm (170.3 in.)
|
Weight
|
27,000 kg (59,524 lbs.)
|
