Mynx Series
Enabled
-
Travel Distance X-axis1270 mm (50 in)
-
Travel Distance Y-axis670 mm (26.4 in)
-
Travel Distance Z-axis625 mm (24.6 in)
-
Rapid Traverse X-axis30 m/min (1181 in/min)
-
Rapid Traverse Y-axis30 m/min (1181 in/min)
-
Rapid Traverse Z-axis24 m/min (945 in/min)
-
Spindle to Table Distance150 - 775 mm (5.9 - 30.5 in)
-
Table Size1400 x 670 mm (55 x 26.4 in)
-
Max Load1300 kg (2866 lbs)
-
Speed8000/12000 rpm
-
Power15 kW (20 Hp)
-
Torque165.5/286.5 Nm (122/211.3 Hp)
-
ShankBIG PLUS CAT 40
-
Changer Capacity30
-
Max Diameter80/125 mm (3.2/4.9 in)
-
Max Length300 mm (11.8 in)
-
Weight9000 kg (19850 lbs.)
-
Length3350 mm (131.9 in.)
-
Height3107 mm (122.3 in.)
-
Width2692 mm (106 in.) + 972 mm (38.3 in.)
Explore the Mynx Series Lineup

Mynx 5400/40 II
Spindle Taper: CAT40
Spindle RPM: 8,000 RPM
X Axis Travel: 40.2"

Mynx 5400/50 II
Spindle Taper: CAT50
Spindle RPM: 6,000 RPM
X Axis Travel: 40.2"

Mynx 6500/50 II
Spindle Taper: CAT50
Spindle RPM: 6,000 RPM
X Axis Travel: 40.2"

Mynx 7500/40 II
Spindle Taper: CAT40
Spindle RPM: 12,000 RPM
X Axis Travel: 60.0"

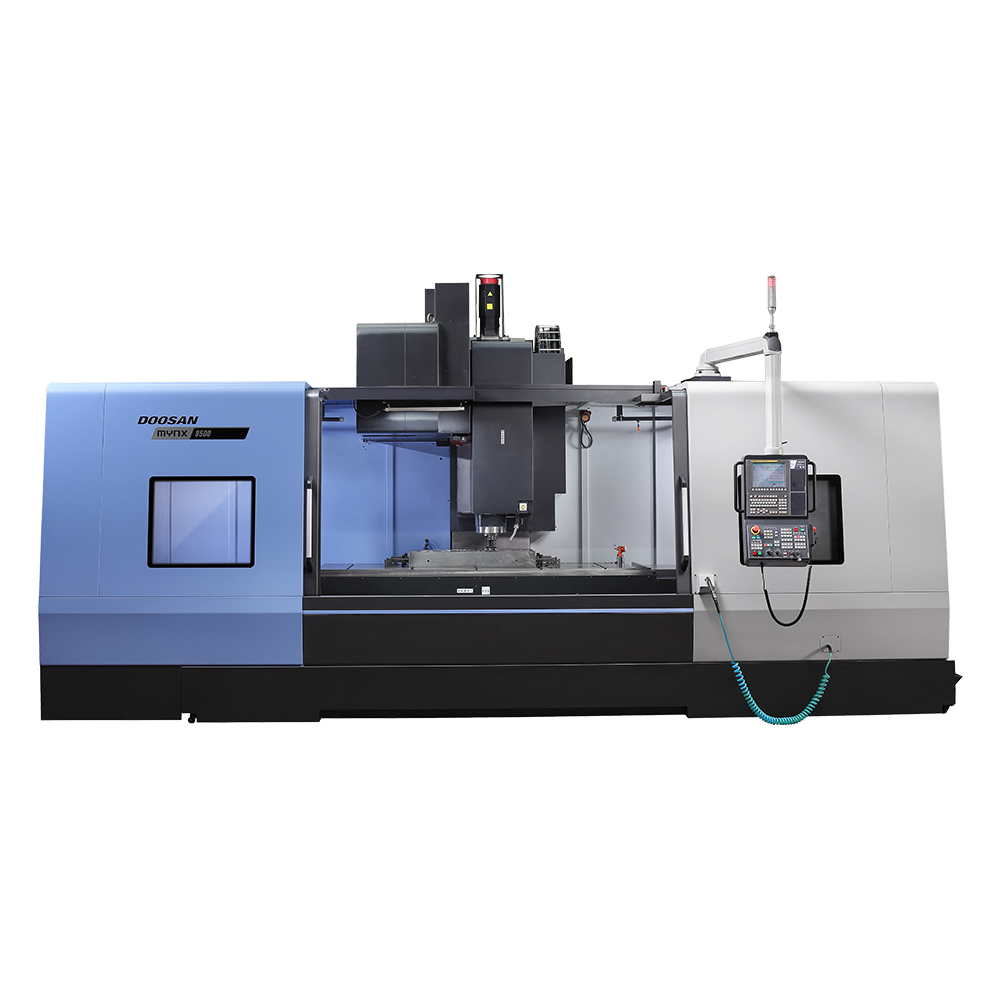

DN SOLUTIONS (FORMERLY DOOSAN MACHINE TOOLS) MYNX 6500 VERTICAL MACHINING CENTER
Mynx series offers high durability, high performance to designed high rigidity.
Doosan Mynx 6500 Vertical Machining Center
ACCESSORIES
Whether it’s a replacement part or an accessory to boost your productivity, we offer a wide selection of products from a large variety of vendors to bring you the best accessories at the best price.

TURNKEY ENGINEERING SOLUTIONS

If you need to:
- Make a part faster
- Adapt your staff or parts to a new machine
- Program a new part
- Utilize the full potential of your machine
Our team of machining experts offer a wide range of Turnkey Solutions to help you make more out of your parts and your machine.
