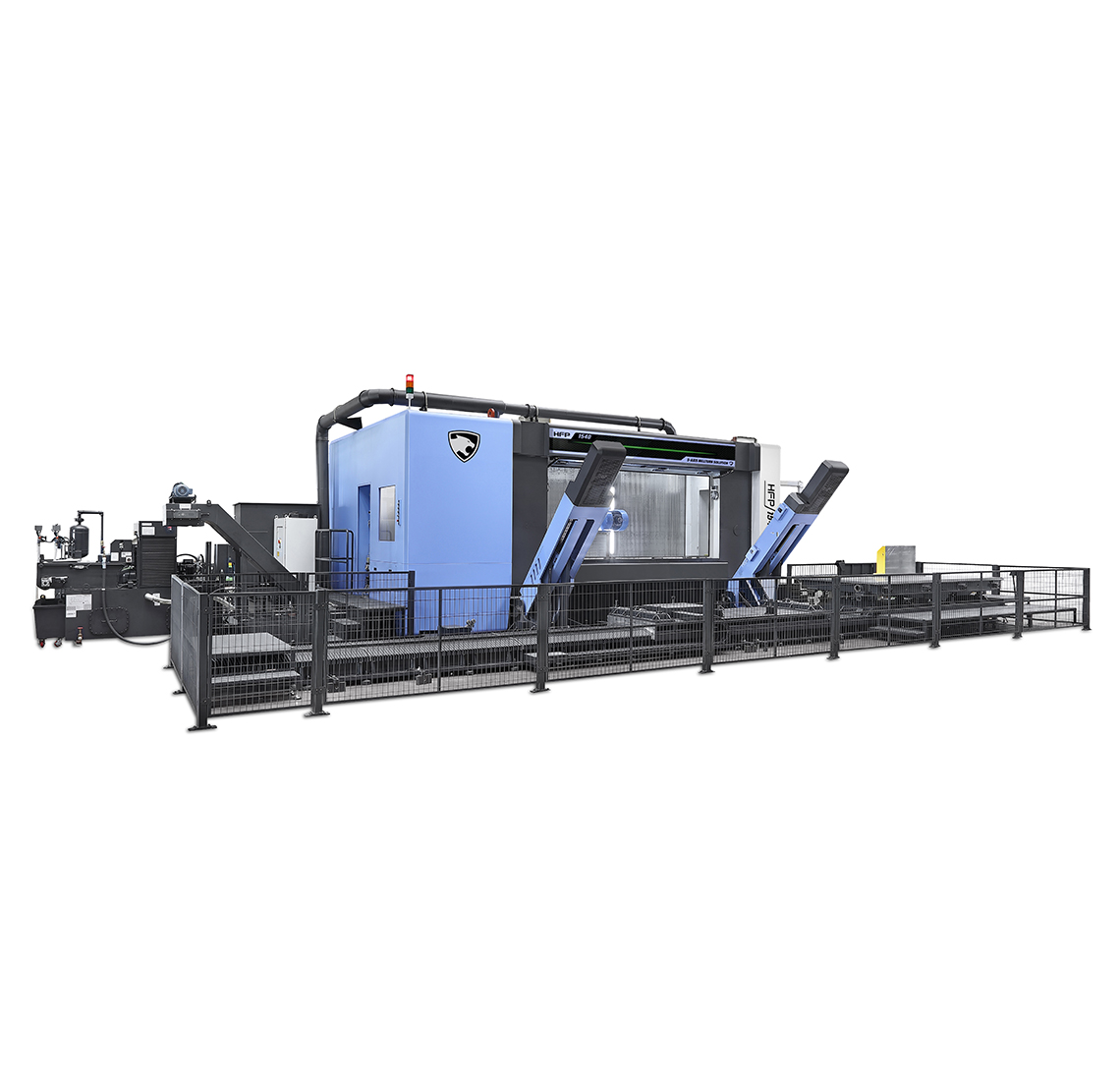

The DN Solutions HFP series five axis horizontal machining center is designed with large automotive and aerospace parts in mind. The HFP is equipped with an optimally Integrated Sync Uni-Body frame capable of synchronizing the X, Y, and Z axes with the frame and boasts a powerful 100 hp, 30,000 rpm spindle. Although the HFP machines horizontally, the table is mounted onto a large tilting platform allowing easier loading and unloading.
You are here
HFP 1540
HFP Series
HFP 1540
Travels
Travel Distance X-axis
|
4,800 mm (189 in.)
|
Travel Distance Y-axis
|
1,600 mm (63 in.)
|
Travel Distance Z-axis
|
550 mm (21.6 in.)
|
Travel Distance A-axis
|
±105°
|
Travel Distance C-axis
|
±360°
|
Rapid Traverse X-axis
|
50 m/min. (2,362 in./min.)
|
Rapid Traverse Y-axis
|
40 m/min. (1,575 in./min.)
|
Rapid Traverse Z-axis
|
50 m/min. (2,362 in./min.)
|
Rapid Traverse A-axis
|
300°/second
|
Rapid Traverse C-axis
|
300°/second
|
Table
Table Size
|
4,000 x 1,500 mm (157.5 x 59.1 in.)
|
Max Load
|
3,000 kg (6,614 lbs.)
|
Spindle
Speed
|
30,000 rpm
|
Power
|
75/60 kW (100/81.5 Hp)
|
Torque
|
48 Nm (35.4 ft-lbs.)
|
Tooling
Shank
|
HSK 63-A
|
Changer Capacity
|
60
|
Max Diameter
|
⌀80 mm (3.2 in.)
|
Max Length
|
300 mm (11.8 in.)
|
Machine Size & Weight
Length
|
17,705 mm (697 in.)
|
Height
|
4,250 mm (167.3 in.)
|
Width
|
7,970 mm (313.8 in.)
|
Weight
|
55,000 kg (121,254 lbs.)
|
